FRONT SEAT OUTER BELT ASSEMBLY COMPONENTS

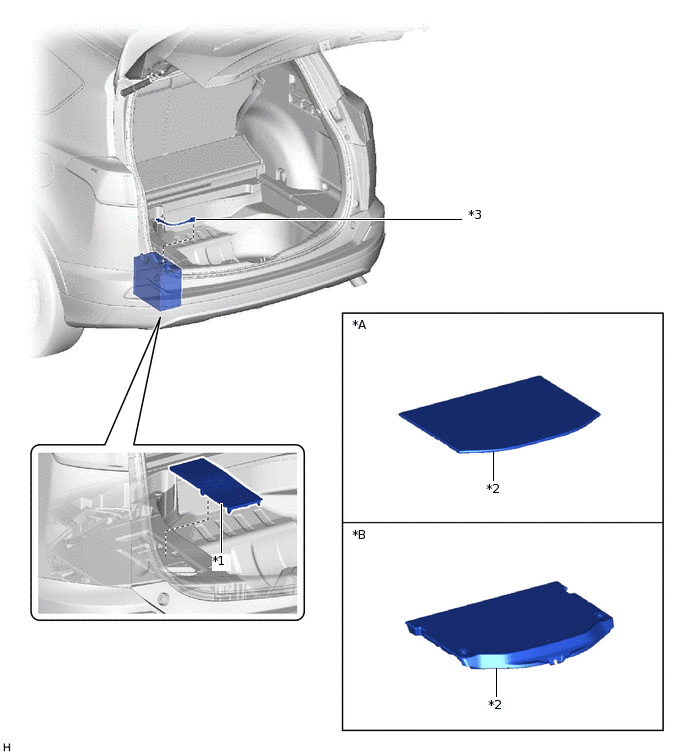

*A	w/o Spare Tire, for Compact Spare Tire	*B	for Full Size Spare Tire
*1	BATTERY SERVICE COVER	*2	DECK BOARD ASSEMBLY
*3	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-

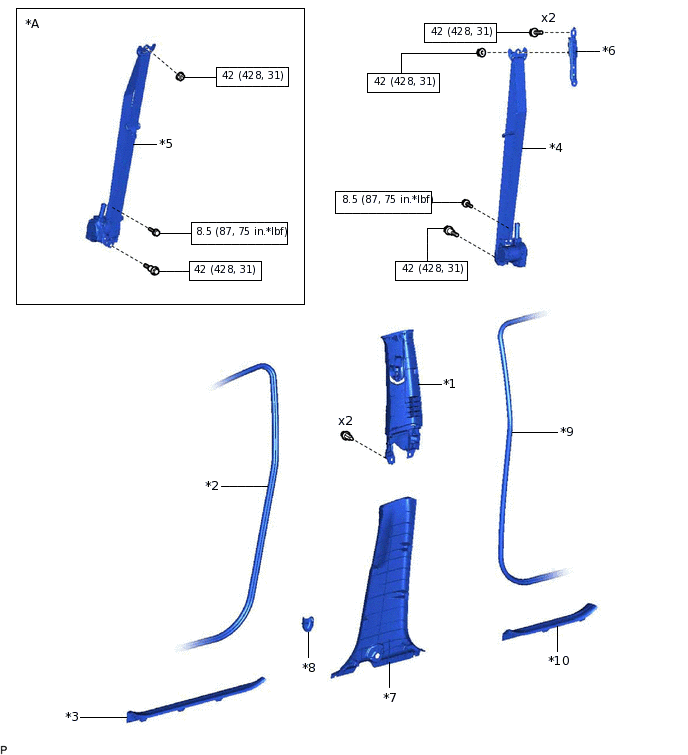

*A	for Front Passenger Seat Belt with Selectable Force Limiter	-	-
*1	CENTER PILLAR GARNISH LH	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3	FRONT DOOR SCUFF PLATE LH	*4	FRONT SEAT OUTER BELT ASSEMBLY LH
*5	FRONT SEAT OUTER BELT ASSEMBLY RH	*6	FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
*7	LOWER CENTER PILLAR GARNISH LH	*8	OUTER LAP BELT ANCHOR COVER
*9	REAR DOOR OPENING TRIM WEATHERSTRIP LH	*10	REAR DOOR SCUFF PLATE LH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*A

for Front Passenger Seat Belt with Selectable Force Limiter

-

*1

CENTER PILLAR GARNISH LH

*2

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*3

FRONT DOOR SCUFF PLATE LH

*4

FRONT SEAT OUTER BELT ASSEMBLY LH

*5

FRONT SEAT OUTER BELT ASSEMBLY RH

*6

FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

*7

LOWER CENTER PILLAR GARNISH LH

*8

OUTER LAP BELT ANCHOR COVER

*9

REAR DOOR OPENING TRIM WEATHERSTRIP LH

*10

REAR DOOR SCUFF PLATE LH

N*m (kgf*cm, ft.*lbf): Specified torque

-
