ACCELERATOR PEDAL SENSOR REMOVAL

PROCEDURE

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY

    Note:

    This accelerator pedal does not require lubrication.

    Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

    If applied, the accelerator pedal sensor assembly must be replaced.

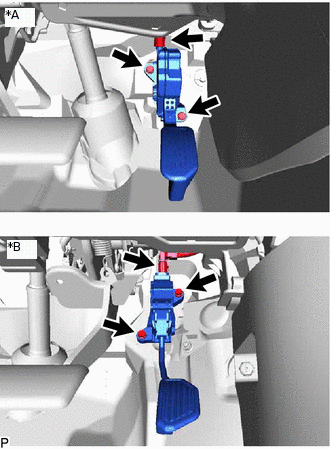

    1. C346020C01

      *A

      for LHD

      *B

      for RHD

      Disconnect the accelerator pedal sensor assembly connector.

    2. Remove the 2 bolts and accelerator pedal sensor assembly.

      Note:

      • Avoid physical shocks to the accelerator pedal sensor assembly.

      • Do not disassemble the accelerator pedal sensor assembly.
