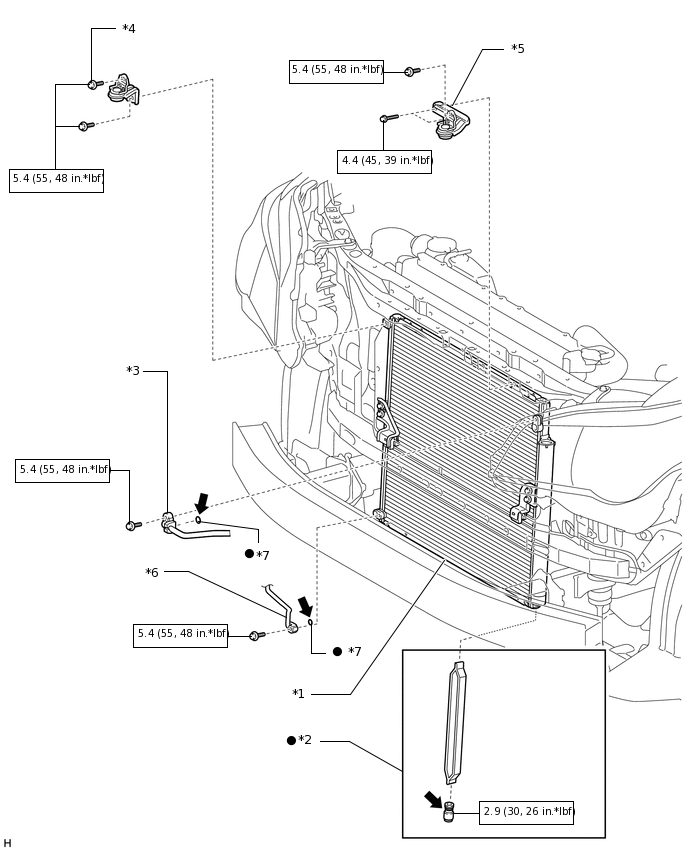

CONDENSER(for 1GR-FE) COMPONENTS

*1	COOLER CONDENSER ASSEMBLY	*2	COOLER DRYER
*3	DISCHARGE HOSE SUB-ASSEMBLY	*4	NO. 1 COOLER CONDENSER BRACKET
*5	NO. 2 COOLER CONDENSER BRACKET	*6	AIR CONDITIONING TUBE ASSEMBLY
*7	O-RING	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	●	Non-reusable part
	Compressor oil ND-OIL 8 or equivalent	-	-

*1

COOLER CONDENSER ASSEMBLY

*2

COOLER DRYER

*3

DISCHARGE HOSE SUB-ASSEMBLY

*4

NO. 1 COOLER CONDENSER BRACKET

*5

NO. 2 COOLER CONDENSER BRACKET

*6

AIR CONDITIONING TUBE ASSEMBLY

*7

O-RING

-

Specified torque: N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Compressor oil ND-OIL 8 or equivalent

-
