SLIDING ROOF HOUSING COMPONENTS

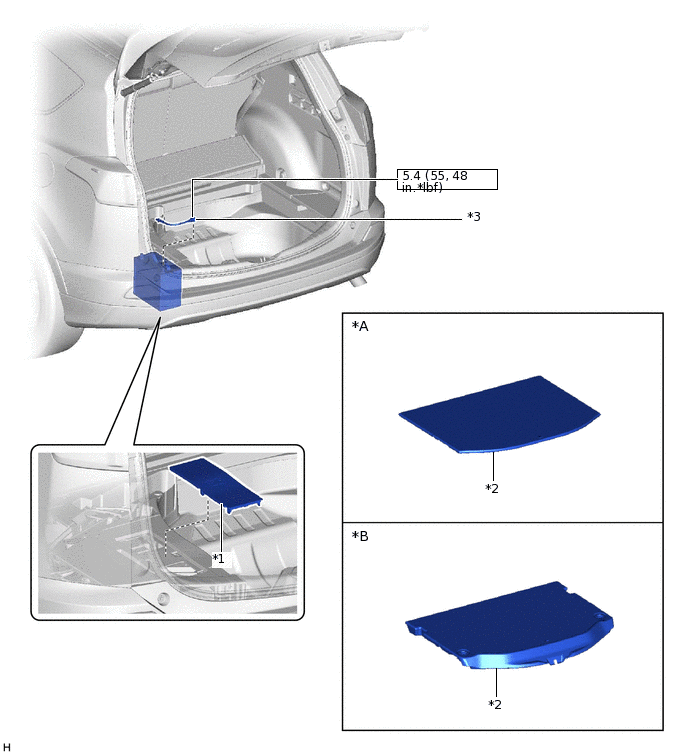

ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
AUXILIARY BATTERY NEGATIVE TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf) : Specified torque |
- |
- |

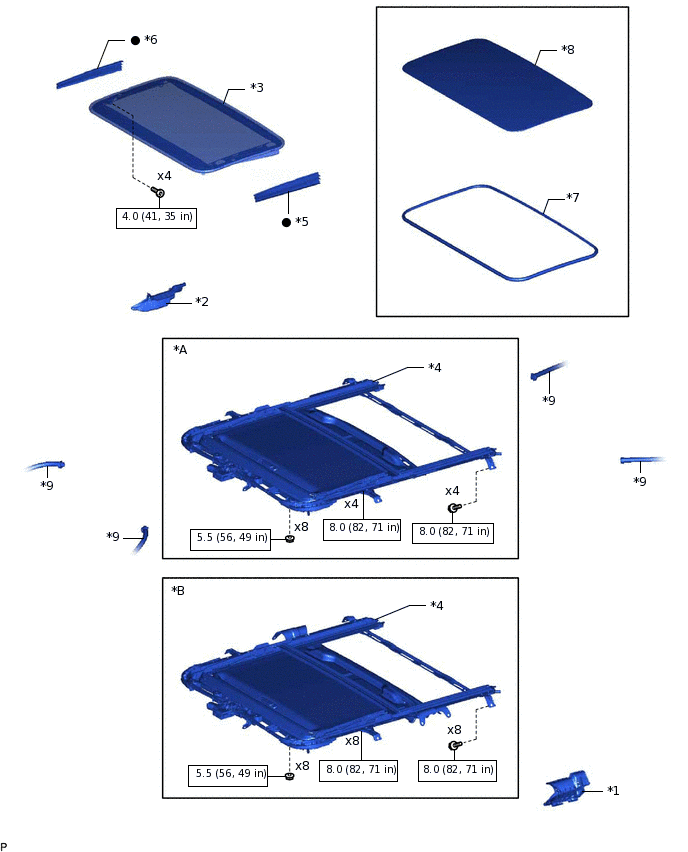

ILLUSTRATION
*A |
w/o Center Bracket |
*B |
w/ Center Bracket |
*1 |
REAR SIDE RAIL SPACER LH |
*2 |
REAR SIDE RAIL SPACER RH |
*3 |
SLIDING ROOF GLASS SUB-ASSEMBLY |
*4 |
SLIDING ROOF HOUSING SUB-ASSEMBLY |
*5 |
SLIDING ROOF SIDE GARNISH LH |
*6 |
SLIDING ROOF SIDE GARNISH RH |
*7 |
SLIDING ROOF WEATHERSTRIP |
*8 |
SLIDING ROOF PANEL SUB-ASSEMBLY |
*9 |
SLIDING ROOF PANEL SUB-ASSEMBLY |
- |
- |
|
N*m (kgf*cm, ft.*lbf) : Specified torque |
● |
Non-reusable part |

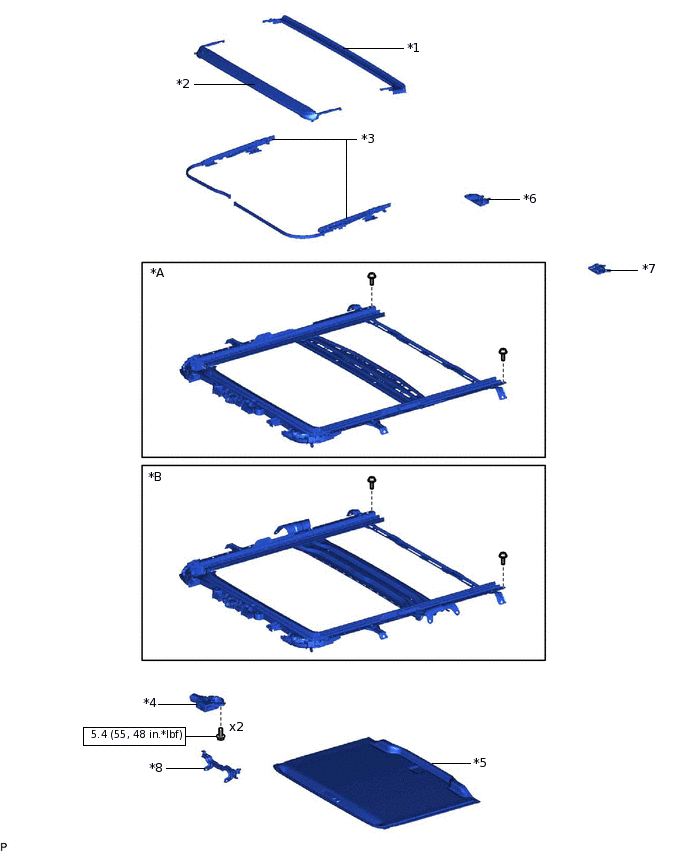

ILLUSTRATION
*A |
w/o Center Bracket |
*B |
w/ Center Bracket |
*1 |
REAR ROOF DRIP CHANNEL |
*2 |
ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY |
*3 |
SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY |
*4 |
SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY |
*5 |
SUNSHADE TRIM SUB-ASSEMBLY |
*6 |
SLIDING ROOF PIECE SUB-ASSEMBLY RH |
*7 |
SLIDING ROOF PIECE SUB-ASSEMBLY LH |
*8 |
MAP LIGHT BRACKET |
|
N*m (kgf*cm, ft.*lbf) : Specified torque |
- |
- |
