HEATER WATER PUMP(for 8GR-FKS) COMPONENTS

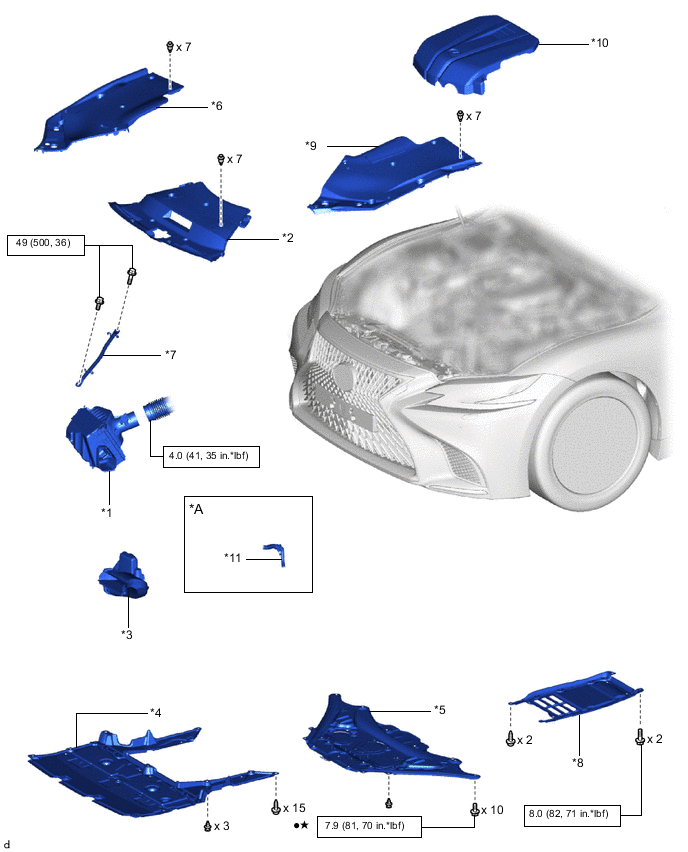

ILLUSTRATION
| *A | w/ In-tank Oil Cooler | - | - |
| *1 | AIR CLEANER ASSEMBLY | *2 | LOWER RADIATOR AIR DEFLECTOR |
| *3 | NO. 1 AIR CLEANER INLET | *4 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *5 | NO. 2 ENGINE UNDER COVER ASSEMBLY | *6 | RADIATOR COVER PLATE |
| *7 | RADIATOR SUPPORT TO CROSSMEMBER BRACE SUB-ASSEMBLY RH | *8 | TRANSMISSION UNDER COVER |
| *9 | UPPER RADIATOR SUPPORT SEAL | *10 | V-BANK COVER SUB-ASSEMBLY |
| *11 | OUTLET NO. 1 OIL COOLER HOSE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| ★ | Precoated part | - | - |

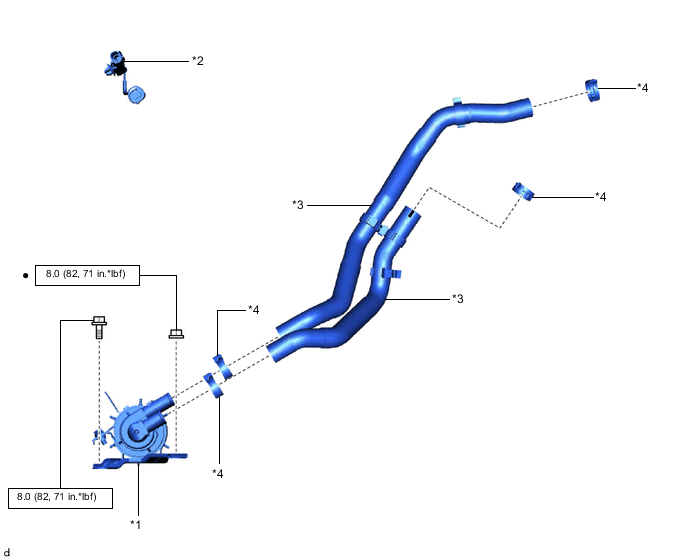

ILLUSTRATION
| *1 | HEATER ACCESSORY ASSEMBLY | *2 | NO. 2 WIRING AIR INDICATOR HARNESS SUB-ASSEMBLY |
| *3 | WATER HOSE | *4 | HOSE CLIP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
