LUGGAGE COMPARTMENT ROOM LIGHT REASSEMBLY

PROCEDURE

  1. INSTALL NO. 2 ROOM LIGHT BULB

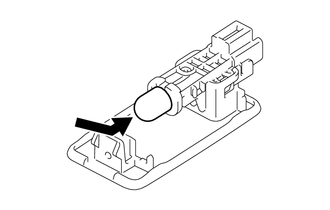

    1. E300467

      Install the No. 2 room light bulb as shown in the illustration.

    2. E300465C02

      *a

      Shade

      Attach the 4 claws to install the shade.
