AUTOMATIC TRANSMISSION SYSTEM

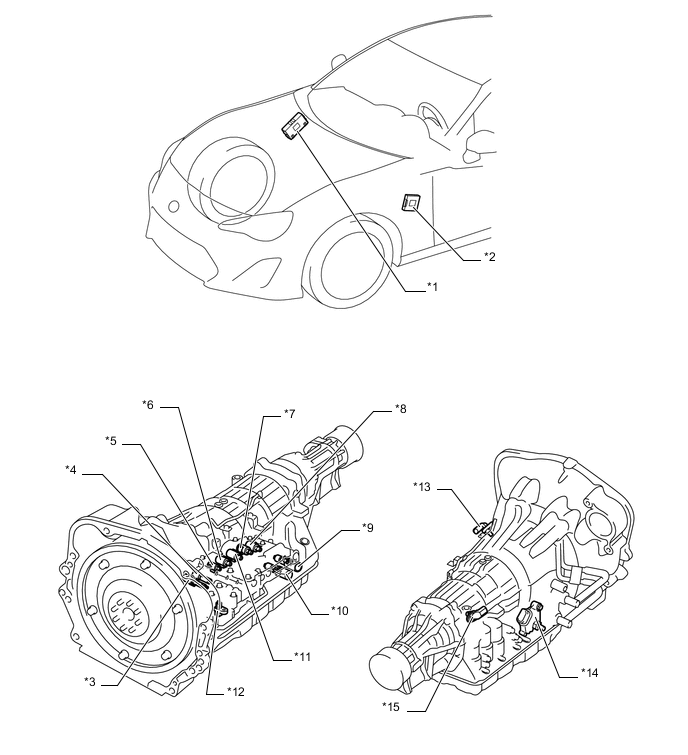

| *1 | ECM | *2 | Transmission Control ECU Assembly |
| *3 | Line Pressure Control Solenoid Assembly (SLT) | *4 | Shift Solenoid Valve (SL1) |
| *5 | Shift Solenoid Valve (SR) | *6 | Shift Solenoid Valve (S1) |
| *7 | Shift Solenoid Valve (S2) | *8 | Shift Solenoid Valve (S3) |
| *9 | Lock-up Control Solenoid Assembly (SLU) | *10 | Shift Solenoid Valve (SL2) |
| *11 | Shift Solenoid Valve (S4) | *12 | ATF Temperature Sensor |
| *13 | Transmission Revolution Sensor (NT) | *14 | Park/Neutral Position Switch Assembly |
| *15 | Transmission Revolution Sensor (SP2) | - | - |

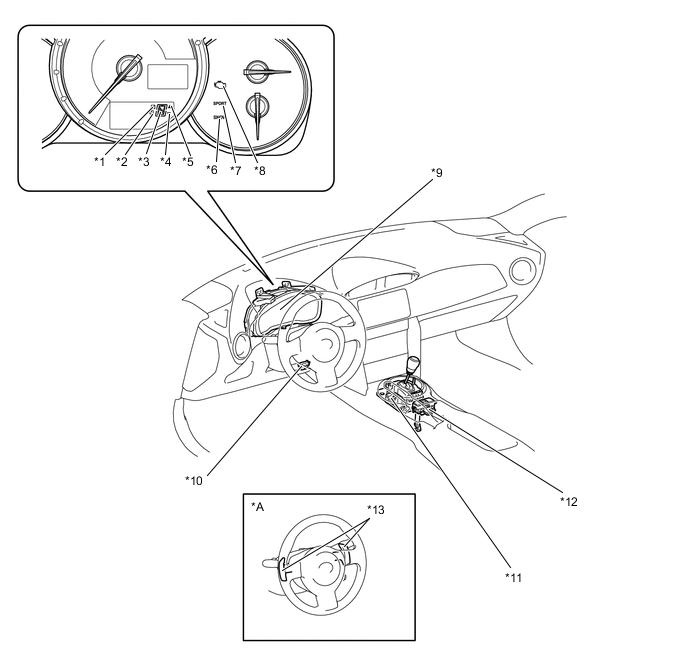

| *A | Models with Paddle Shift Switch (Transmission Shift Switch Assembly) | - | - |
| *1 | D Mode Indicator Light | *2 | M Mode Indicator Light |
| *3 | Shift Position Indicator | *4 | Shift Down Indicator Light |
| *5 | Shift Up Indicator Light | *6 | SNOW Indicator Light |
| *7 | SPORT Indicator Light | *8 | MIL |
| *9 | Combination Meter Assembly - Buzzer |
*10 | DLC3 |
| *11 | Transmission Control Switch (Floor Shift Shift Lever Assembly) | *12 | Pattern Select Switch - SPORT Mode Switch - SNOW Mode Switch |
| *13 | Paddle Shift Switch (Transmission Shift Switch Assembly) | - | - |
