HEADLIGHT DIMMER SWITCH INSTALLATION

PROCEDURE


  1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

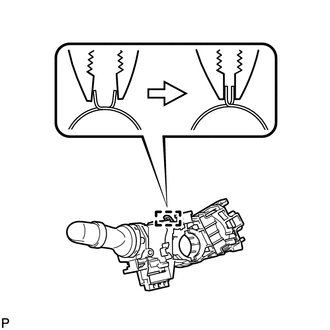

    1. A005DH1

      Using pliers, expand the clamp.

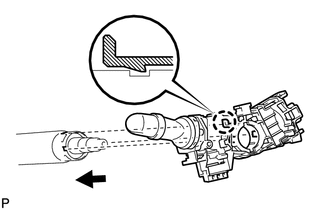

    2. A005ART

      While holding the clamp expanded, engage the claw to install the headlight dimmer switch assembly as shown in the illustration.

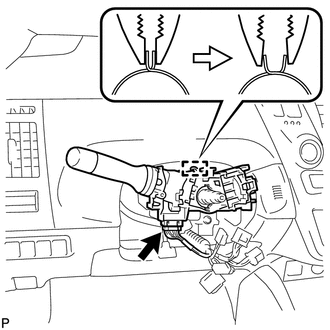

    3. A005ADO

      Release the clamp.

    4. Connect the connector.

  2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

    Click here

  3. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Click here
