TRANSMITTER BATTERY REPLACEMENT

PROCEDURE

  1. REMOVE TRANSMITTER BATTERY

    Note:

    Take extra care when handling these precision electronic components.

    1. for Type A:

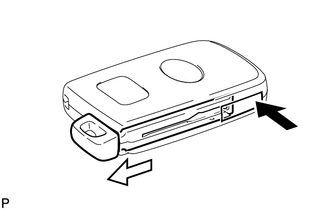

      1. B274647

        Push the release hook knob and extract the mechanical key.

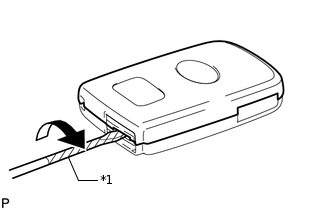

      2. B274649C11

        *1

        Protective Tape

        Insert a precision screwdriver into the gap, and turn the screwdriver to detach the transmitter housing cover.

        Tip:

        Tape the screwdriver tip before use.

      3. B274650C07

        *1

        Protective Tape

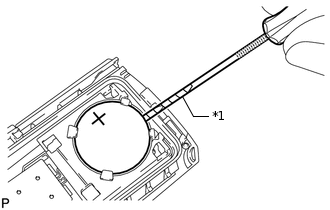

        Insert a precision screwdriver into the gap and gently remove the transmitter battery (lithium battery: CR2032).

        Note:

        • Do not push the terminals with your finger.

        • Do not forcibly pry up the transmitter battery. The terminals may be damaged.

        • Do not touch the transmitter battery with wet hands. Water may cause rust.

        • Do not touch or move any components inside the transmitter. It may interfere with proper operation.

        • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.

        Tip:

        Tape the screwdriver tip before use.

    2. for Type B:

      1. B274647

        Push the release hook knob and extract the mechanical key.

      2. B274649C12

        *1

        Protective Tape

        Insert a precision screwdriver into the gap, and turn the screwdriver to detach the transmitter housing cover.

        Tip:

        Tape the screwdriver tip before use.

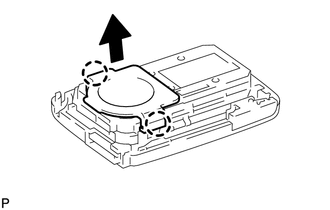

      3. B279136

        Disengage the 2 claws and remove the cover.

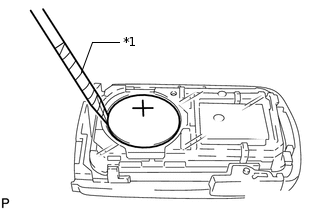

      4. B279137C05

        *1

        Protective Tape

        Insert a precision screwdriver into the gap and gently remove the transmitter battery (lithium battery: CR2032).

        Note:

        • Do not push the terminals with your finger.

        • Do not forcibly pry up the transmitter battery. The terminals may be damaged.

        • Do not touch the transmitter battery with wet hands. Water may cause rust.

        • Do not touch or move any components inside the transmitter. It may interfere with proper operation.

        • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.

        Tip:

        Tape the screwdriver tip before use.

  2. INSTALL TRANSMITTER BATTERY

    1. for Type A:

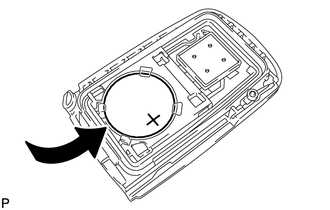

      1. B279133

        Install a new transmitter battery (lithium battery: CR2032) with the positive (+) side facing upward as shown in the illustration.

        Note:

        • Do not bend the transmitter battery electrode during insertion.

        • Keep the transmitter cover interior free of dust and oil.

        • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.

      2. B279134

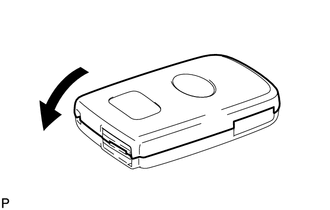

        Install the transmitter housing cover by pressing down on it as shown in the illustration.

      3. B274648

        Insert the mechanical key into the transmitter.

      4. Press one of the transmitter switches and check that the LED illuminates.

        OK

        Transmitter LED illuminates when switch is pressed.

    2. for Type B:

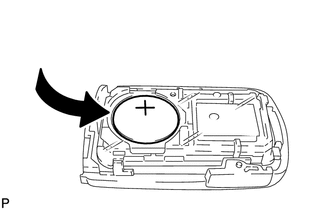

      1. B279138

        Install a new transmitter battery (lithium battery: CR2032) with the positive (+) side facing upward as shown in the illustration.

        Note:

        • Do not bend the transmitter battery electrode during insertion.

        • Keep the transmitter cover interior free of dust and oil.

        • When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical transmitter from being damaged.

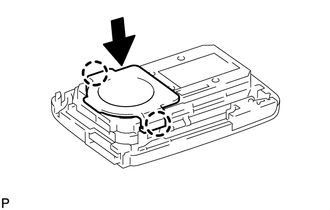

      2. B279929

        Engage the 2 claws and install the cover.

      3. B279134

        Install the transmitter housing cover by pressing down on it as shown in the illustration.

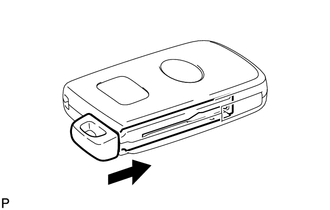

      4. B274648

        Insert the mechanical key into the transmitter.

      5. Press one of the transmitter switches and check that the LED illuminates.

        OK

        Transmitter LED illuminates when switch is pressed.
