DYNAMIC RADAR CRUISE CONTROL SYSTEM Millimeter Wave Radar Sensor Power Source Circuit

DTC Code DTC Name
Millimeter Wave Radar Sensor Power Source Circuit

DESCRIPTION

When the power switch is turned to on (IG), battery voltage is applied to terminal IGB of the millimeter wave radar sensor assembly.

This circuit provides power to the millimeter wave radar sensor assembly. The millimeter wave radar sensor assembly emits radio waves towards an object in front and measures the distance and direction of the object by receiving the beam reflections. Based on the reflections, the sensor calculates the difference in speed between the vehicle and the object in front. This data is transmitted to the driving support ECU assembly.

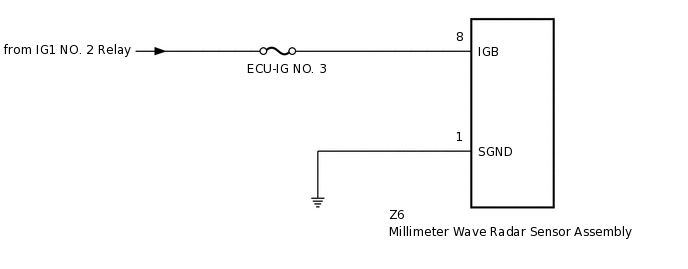

WIRING DIAGRAM

E259147E26

CAUTION / NOTICE / HINT

Note:

Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

  1. CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY (IGB VOLTAGE)

    1. E325539C55

      *a

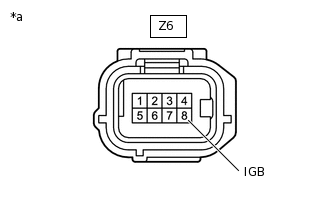

      Front view of wire harness connector

      (to Millimeter Wave Radar Sensor Assembly)

      Disconnect the millimeter wave radar sensor assembly connector.

    2. Turn the power switch on (IG).

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      Z6-8 (IGB) - Bodyground

      Power switch on (IG)

      11 to 14 V

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE POWER SOURCE CIRCUIT

    OK

  2. CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR ASSEMBLY - BODY GROUND)

    1. Disconnect the Z6 millimeter wave radar sensor assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Check for Open

      Tester Connection

      Condition

      Specified Condition

      Z6-1 (SGND) - Body ground

      Always

      Below 1 Ω

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
