POWER BACK DOOR TOUCH SENSOR INSPECTION

PROCEDURE

1. INSPECT POWER BACK DOOR SENSOR ASSEMBLY LH

   1.

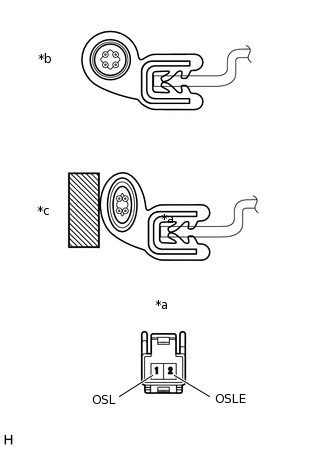

      *a	Component without harness connected (Power Back Door Sensor Assembly LH)
      *b	Not Pressed
      *c	Pressed

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      1 (OSL) - 2 (OSLE)	Not pressed	950 to 1050 Ω
      1 (OSL) - 2 (OSLE)	Pressed	Below 100 Ω

      If the result is not as specified, replace the power back door sensor assembly LH.

2. INSPECT POWER BACK DOOR SENSOR ASSEMBLY RH

   1.

      *a	Component without harness connected (Power Back Door Sensor Assembly RH)
      *b	Not Pressed
      *c	Pressed

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      1 (OSR) - 2 (OSRE)	Not pressed	950 to 1050 Ω
      1 (OSR) - 2 (OSRE)	Pressed	Below 100 Ω

      If the result is not as specified, replace the power back door sensor RH.
