CAN COMMUNICATION SYSTEM(for RHD) TERMINALS OF ECU

Tip:

Operating the power switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

  1. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    1. Disconnect the cable from the negative (-) auxiliary battery terminal before measuring the resistances of the CAN main wire and the CAN branch wire.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the airbag system.

      Note:

      • Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the power switch, any switches or any doors. If doors need to be opened in order to check connectors, open the doors and leave them open.

      • After turning the cable disconnected from negative (-) auxiliary battery terminal, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

        Click here

      • When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

        Click here

  2. JUNCTION CONNECTOR

    1. No. 5 CAN Junction Connector (w/ Power Back Door System)

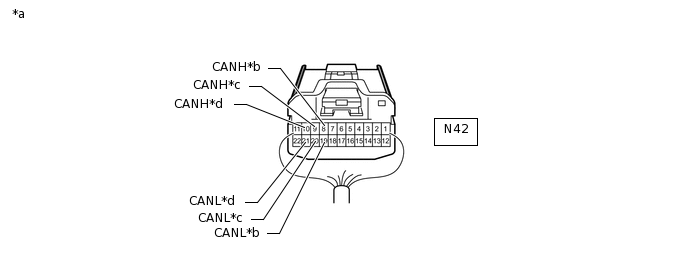

      C348183C03

      *a

      Rear view of wire harness connector

      (to No. 5 CAN Junction Connector)

      *b

      • for No. 11 CAN Junction Connector (w/ Seat Memory)

      • for Main Body ECU (Multiplex Network Body ECU) (w/o Seat Memory)

      *c

      for Multiplex Network Door ECU

      *d

      for No. 1 CAN Junction Terminal

      No. 5 CAN Junction Connector

      Wiring Color

      Connect to

      N42-8 (CANH)

      P*1, B*2

      • No. 11 CAN junction connector*1

      • Main body ECU (multiplex network body ECU)*2

      N42-19 (CANL)

      GR

      N42-9 (CANH)

      G

      Multiplex network door ECU

      N42-20 (CANL)

      GR

      N42-10 (CANH)

      L

      No. 1 CAN junction terminal

      N42-21 (CANL)

      GR

      *1: w/ Seat Memory

      *2: w/o Seat Memory

    2. No. 6 CAN Junction Connector

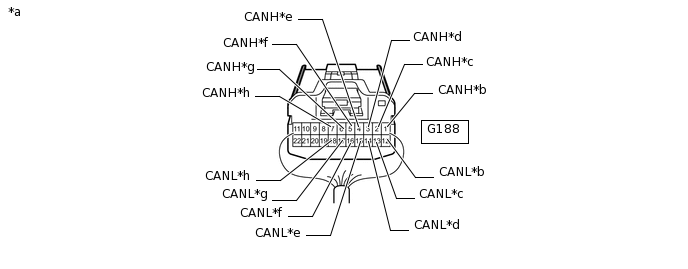

      C235392C42

      *a

      Rear view of wire harness connector

      (to No. 6 CAN Junction Connector)

      *b

      for Main Body ECU (Multiplex Network Body ECU)

      *c

      for Air Conditioning Amplifier Assembly

      *d

      for Brake Booster with Master Cylinder Assembly (Skid Control ECU)

      *e

      for No. 7 CAN Junction Connector

      *f

      for Hybrid Vehicle Control ECU

      *g

      for Airbag Sensor Assembly

      *h

      for ECM

      No. 6 CAN Junction Connector

      Wiring Color

      Connect to

      G188-1 (CANH)

      G

      Main body ECU (multiplex network body ECU)

      G188-12 (CANL)

      W

      G188-2 (CANH)

      B

      Air conditioning amplifier assembly

      G188-13 (CANL)

      W

      G188-3 (CANH)

      GR

      Brake booster with master cylinder assembly (skid control ECU)

      G188-14 (CANL)

      W

      G188-4 (CANH)

      V

      No. 7 CAN junction connector

      G188-15 (CANL)

      W

      G188-5 (CANH)

      LG

      Hybrid vehicle control ECU

      G188-16 (CANL)

      W

      G188-6 (CANH)

      BR

      Airbag sensor assembly

      G188-17 (CANL)

      W

      G188-7 (CANH)

      Y

      ECM

      G188-18 (CANL)

      W

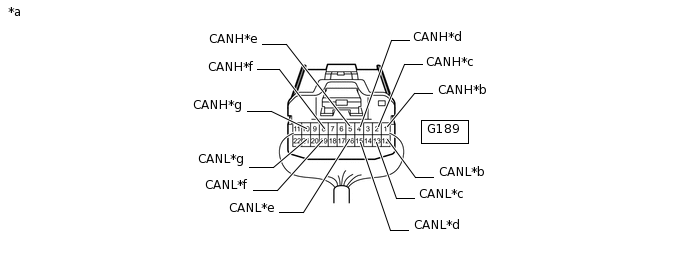

    3. No. 7 CAN Junction Connector

      C235392C45

      *a

      Rear view of wire harness connector

      (to No. 7 CAN Junction Connector)

      *b

      for Combination Meter Assembly

      *c

      for Power Steering ECU Assembly

      *d

      for Spiral with Sensor Cable Sub-assembly (Steering Angle Sensor)

      *e

      for Certification ECU (Smart Key ECU Assembly)

      *f

      for No. 6 CAN Junction Connector

      *g

      for Central Gateway ECU

      -

      -

      No. 7 CAN Junction Connector

      Wiring Color

      Connect to

      G189-1 (CANH)

      G

      Combination meter assembly

      G189-12 (CANL)

      W

      G189-2 (CANH)

      LG

      Power steering ECU assembly

      G189-13 (CANL)

      W

      G189-4 (CANH)

      P

      Spiral with sensor cable sub-assembly (steering angle sensor)

      G189-15 (CANL)

      W

      G189-5 (CANH)

      R

      Certification ECU (smart key ECU assembly)

      G189-16 (CANL)

      W

      G189-8 (CANH)

      V

      No. 6 CAN junction connector

      G189-19 (CANL)

      W

      G189-10 (CANH)

      SB

      Central gateway ECU

      G189-21 (CANL)

      W

    4. No. 8 CAN Junction Connector

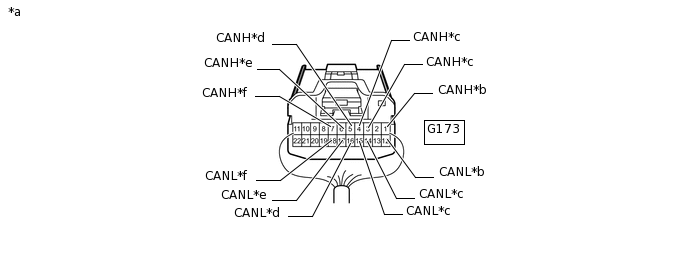

      C235392C46

      *a

      Rear view of wire harness connector

      (to No. 8 CAN Junction Connector)

      *b

      for Radio and Display Receiver Assembly (w/ Audio and Visual System [for Radio and Display Type])

      *c

      for Central Gateway ECU

      *d

      for Driving Support ECU Assembly (w/ Pre-crash Safety System)

      *e

      for Forward Recognition Camera (w/ Pre-crash Safety System)

      *f

      for Millimeter Wave Radar Sensor Assembly (w/ Pre-crash Safety System)

      No. 8 CAN Junction Connector

      Wiring Color

      Connect to

      G173-1 (CANH)

      Y

      Radio and display receiver assembly*1

      G173-12 (CANL)

      W

      G173-3 (CANH)

      R

      Central gateway ECU

      G173-14 (CANL)

      W

      G173-4 (CANH)

      V

      Central gateway ECU

      G173-15 (CANL)

      W

      G173-5 (CANH)

      B

      Driving support ECU assembly*2

      G173-16 (CANL)

      W

      G173-6 (CANH)

      L

      Forward recognition camera*2

      G173-17 (CANL)

      W

      G173-7 (CANH)

      SB

      Millimeter wave radar sensor assembly*2

      G173-18 (CANL)

      W

      *1: w/ Audio and Visual System (for Radio and Display Type)

      *2: w/ Pre-crash Safety System

    5. No. 9 CAN Junction Connector

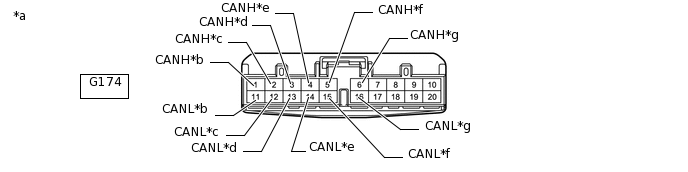

      C343209C21

      *a

      Front view of wire harness connector

      (to No. 9 CAN Junction Connector)

      *b

      for Forward Recognition Camera (w/ Pre-crash Safety System)

      *c

      for Millimeter Wave Radar Sensor Assembly (w/ Pre-crash Safety System)

      *d

      for Driving Support ECU Assembly (w/ Pre-crash Safety System)

      *e

      for Central Gateway ECU

      *f

      for No. 10 CAN Junction Connector

      *g

      for Clearance Warning ECU Assembly (w/ TOYOTA Parking Assist-sensor System)

      -

      -

      No. 9 CAN Junction Connector

      Wiring Color

      Connect to

      G174-1 (CANH)

      G

      Forward recognition camera*1

      G174-11 (CANL)

      LG

      G174-2 (CANH)

      B

      Millimeter wave radar sensor assembly*1

      G174-12 (CANL)

      LG

      G174-3 (CANH)

      P

      Driving support ECU assembly*1

      G174-13 (CANL)

      LG

      G174-4 (CANH)

      Y

      Central gateway ECU

      G174-14 (CANL)

      LG

      G174-5 (CANH)

      L

      No. 10 CAN junction connector

      G174-15 (CANL)

      LG

      G174-6 (CANH)

      R

      Clearance warning ECU assembly*2

      G174-16 (CANL)

      LG

      *1: w/ Pre-crash Safety System

      *2: w/ TOYOTA Parking Assist-sensor System

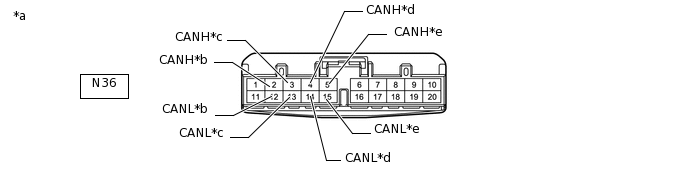

    6. No. 10 CAN Junction Connector

      C343209C41

      *a

      Front view of wire harness connector

      (to No. 10 CAN Junction Connector)

      *b

      for Hybrid Vehicle Control ECU

      *c

      for No. 9 CAN Junction Connector

      *d

      for Blind Spot Monitor Sensor LH (w/ Blind Spot Monitor System)

      *e

      for Television Camera Assembly (w/ Parking Assist Monitor System [for Camera built-in ECU])

      -

      -

      No. 10 CAN Junction Connector

      Wiring Color

      Connect to

      N36-2 (CANH)

      V

      Hybrid vehicle control ECU

      N36-12 (CANL)

      LG

      N36-3 (CANH)

      L

      No. 9 CAN junction connector

      N36-13 (CANL)

      LG

      N36-4 (CANH)

      R

      Blind spot monitor sensor LH*1

      N36-14 (CANL)

      LG

      N36-5 (CANH)

      P

      Television camera assembly*2

      N36-15 (CANL)

      LG

      *1: w/ Blind Spot Monitor System

      *2: w/ Parking Assist Monitor System (for Camera built-in ECU)

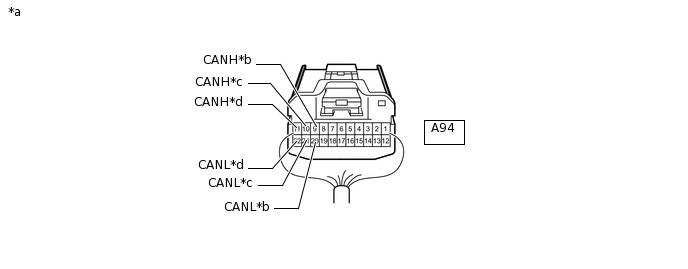

    7. No. 36 Junction Connector

      C235392C77

      *a

      Rear view of wire harness connector

      (to No. 36 Junction Connector)

      *b

      for ECM

      *c

      for Brake Booster with Master Cylinder Assembly (Skid Control ECU)

      *d

      for Hybrid Vehicle Control ECU

      No. 36 Junction Connector

      Wiring Color

      Connect to

      A94-9 (CANH)

      R

      ECM

      A94-20 (CANL)

      W

      A94-10 (CANH)

      LG

      Brake booster with master cylinder assembly (skid control ECU)

      A94-21 (CANL)

      W

      A94-11 (CANH)

      G

      Hybrid vehicle control ECU

      A94-22 (CANL)

      W

    8. No. 11 CAN Junction Connector (w/ Seat Memory)

      C348183C05

      *a

      Rear view of wire harness connector

      (to No. 11 CAN Junction Connector)

      *b

      for Main Body ECU (Multiplex Network Body ECU)

      *c

      for No. 5 CAN Junction Connector

      *d

      for Position Control ECU and Switch Assembly

      No. 11 CAN Junction Connector

      Wiring Color

      Connect to

      M45-9 (CANH)

      B

      Main body ECU (multiplex network body ECU)

      M45-20 (CANL)

      GR

      M45-10 (CANH)

      P

      No. 5 CAN junction connector

      M45-21 (CANL)

      GR

      M45-11 (CANH)

      R

      Position control ECU and switch assembly

      M45-22 (CANL)

      GR

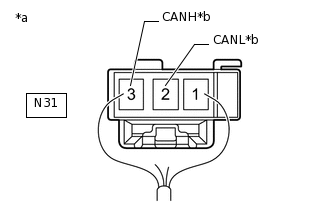

    9. C210060C41

      *a

      Rear view of wire harness connector

      (to No. 1 CAN Junction Terminal)

      *b

      for No. 5 CAN Junction Connector

      No. 1 CAN Junction Terminal (w/ Power Back Door System)

      No. 1 CAN Junction Terminal

      Wiring Color

      Connect to

      N31-2 (CANL)

      GR

      No. 5 CAN junction connector

      N31-3 (CANH)

      L

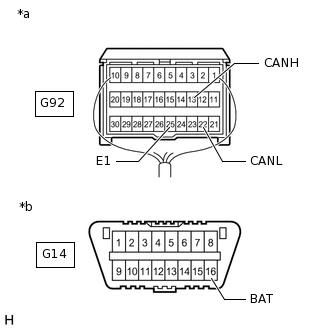

  3. CHECK DLC3

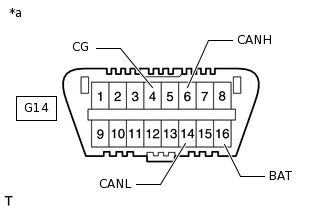

    1. C253362C06

      *a

      Front view of DLC3

      Disconnect the cable from the negative (-) auxiliary battery terminal before measuring the resistances of the CAN main wire and the CAN branch wire.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the airbag system.

      Note:

      • After turning the cable disconnected from negative (-) auxiliary battery terminal, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

        Click here

      • When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

        Click here

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G14-6 (CANH) - G14-14 (CANL)

      B - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 66 Ω

      G14-6 (CANH) - G14-4 (CG)

      B - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G14-14 (CANL) - G14-4 (CG)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G14-6 (CANH) - G14-16 (BAT)

      B - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G14-14 (CANL) - G14-16 (BAT)

      W - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  4. CHECK CENTRAL GATEWAY ECU

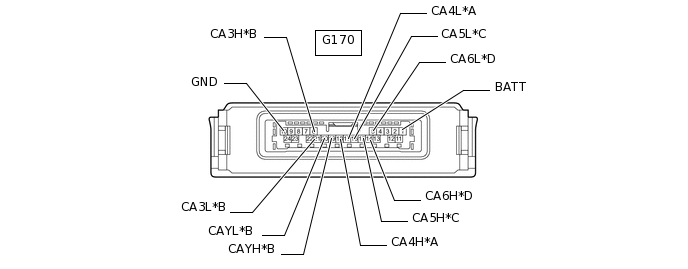

    C331365C15

    *A

    Bus 2

    *B

    Bus 3

    *C

    Bus 5

    *D

    V Bus

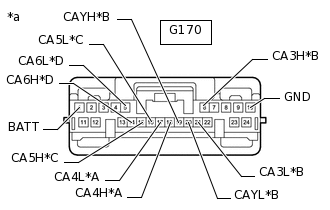

    1. C343190C09

      *A

      Bus 2

      *B

      Bus 3

      *C

      Bus 5

      *D

      V Bus

      *a

      Front view of wire harness connector

      (to Central Gateway ECU)

      Disconnect the central gateway ECU connector.

    2. Measure the resistance according to the value(s) in the table below.

      Table 1. Bus 2

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G170-18 (CA4H) - G170-17 (CA4L)

      SB - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G170-18 (CA4H) - G170-10 (GND)

      SB - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-17 (CA4L) - G170-10 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-18 (CA4H) - G170-1 (BATT)

      SB - GR

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G170-17 (CA4L) - G170-1 (BATT)

      W - GR

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 2. Bus 3

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G170-6 (CA3H) - G170-21 (CA3L)

      R - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-6 (CA3H) - G170-10 (GND)

      R - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-21 (CA3L) - G170-10 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-6 (CA3H) - G170-1 (BATT)

      R - GR

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G170-21 (CA3L) - G170-1 (BATT)

      W - GR

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 3. Bus 3

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G170-19 (CAYH) - G170-20 (CAYL)

      V - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-19 (CAYH) - G170-10 (GND)

      V - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-20 (CAYL) - G170-10 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-19 (CAYH) - G170-1 (BATT)

      V - GR

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G170-20 (CAYL) - G170-1 (BATT)

      W - GR

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 4. Bus 5

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G170-15 (CA5H) - G170-16 (CA5L)

      Y - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      G170-15 (CA5H) - G170-10 (GND)

      Y - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-16 (CA5L) - G170-10 (GND)

      LG - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-15 (CA5H) - G170-1 (BATT)

      Y - GR

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G170-16 (CA5L) - G170-1 (BATT)

      LG - GR

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 5. V Bus

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G170-14 (CA6H) - G170-10 (GND)

      B - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-5 (CA6L) - G170-10 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G170-14 (CA6H) - G170-1 (BATT)

      B - GR

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G170-5 (CA6L) - G170-1 (BATT)

      W - GR

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  5. CHECK ECM

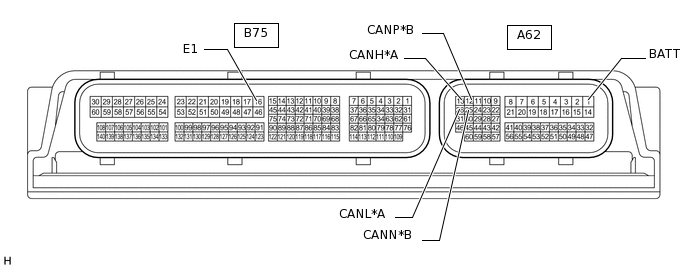

    C228683C20

    *A

    Bus 2

    *B

    Sub Bus 15

    1. Disconnect the ECM connectors.

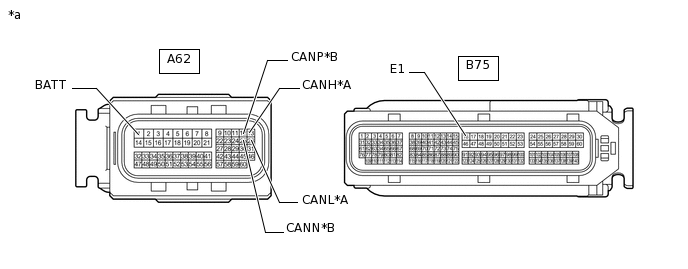

      C229008C54

      *A

      Bus 2

      *B

      Sub Bus 15

      *a

      Front view of wire harness connector

      (to ECM)

      -

      -

    2. Measure the resistance according to the value(s) in the table below.

      Table 6. Bus 2

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      A62-13 (CANH) - A62-26 (CANL)

      Y - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      A62-13 (CANH) - B75-16 (E1)

      Y - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A62-26 (CANL) - B75-16 (E1)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A62-13 (CANH) - A62-1 (BATT)

      Y - W

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      A62-26 (CANL) - A62-1 (BATT)

      W - W

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 7. Sub Bus 15

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      A62-12 (CANP) - A62-25 (CANN)

      R - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      A62-12 (CANP) - B75-16 (E1)

      R - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A62-25 (CANN) - B75-16 (E1)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A62-12 (CANP) - A62-1 (BATT)

      R - W

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      A62-25 (CANN) - A62-1 (BATT)

      W - W

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  6. CHECK HYBRID VEHICLE CONTROL ECU

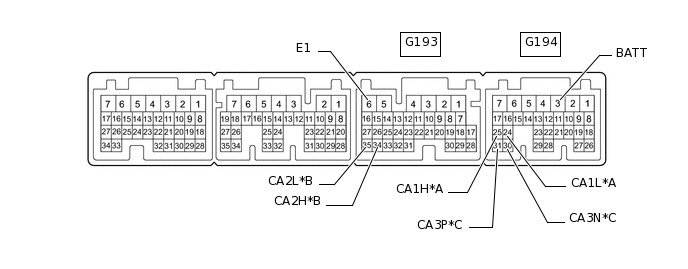

    C274300C35

    *A

    Bus 2

    *B

    Bus 5

    *C

    Sub Bus 15

    -

    -

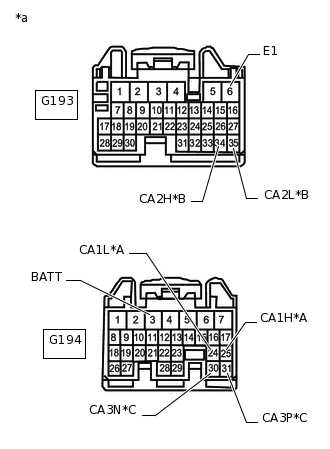

    1. C306940C05

      *A

      Bus 2

      *B

      Bus 5

      *C

      Sub Bus 15

      *a

      Front view of wire harness connector

      (to Hybrid Vehicle Control ECU)

      Disconnect the hybrid vehicle control ECU connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Table 8. Bus 2

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G194-25 (CA1H) - G194-24 (CA1L)

      LG - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G194-25 (CA1H) - G193-6 (E1)

      LG - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G194-24 (CA1L) - G193-6 (E1)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G194-25 (CA1H) - G194-3 (BATT)

      LG - R

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G194-24 (CA1L) - G194-3 (BATT)

      W - R

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 9. Bus 5

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G193-34 (CA2H) - G193-35 (CA2L)

      V - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      G193-34 (CA2H) - G193-6 (E1)

      V - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G193-35 (CA2L) - G193-6 (E1)

      LG - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G193-34 (CA2H) - G194-3 (BATT)

      V - R

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G193-35 (CA2L) - G194-3 (BATT)

      LG - R

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 10. Sub Bus 15

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G194-31 (CA3P) - G194-30 (CA3N)

      V - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      G194-31 (CA3P) - G193-6 (E1)

      V - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G194-30 (CA3N) - G193-6 (E1)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G194-31 (CA3P) - G194-3 (BATT)

      V - R

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G194-30 (CA3N) - G194-3 (BATT)

      W - R

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  7. CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

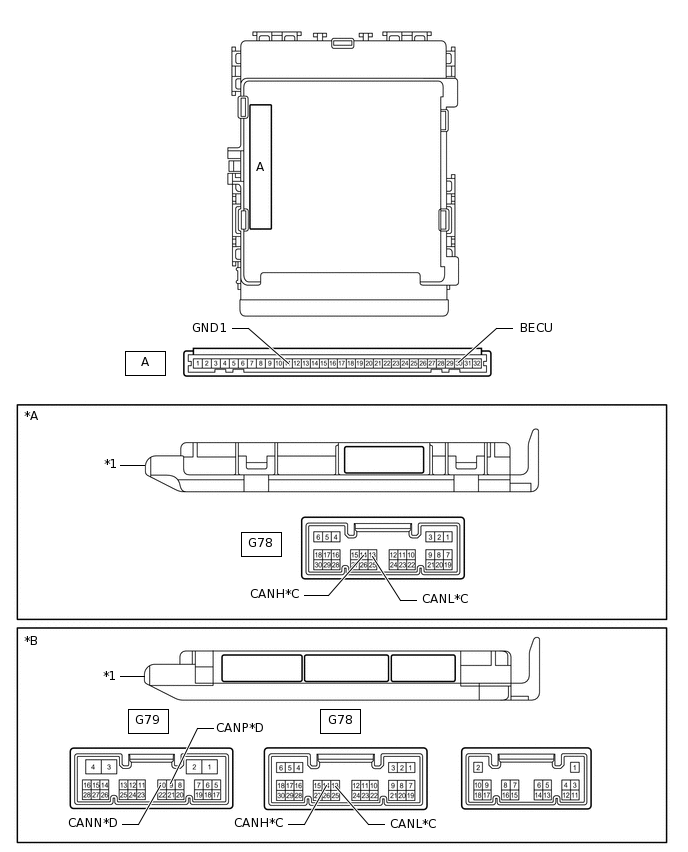

    C278790C01

    *A

    Main Body ECU (Multiplex Network Body ECU) with 1 Connector

    *B

    Main Body ECU (Multiplex Network Body ECU) with 3 Connectors

    *C

    Bus 2

    *D

    Sub Bus 1

    *1

    Main Body ECU (Multiplex Network Body ECU)

    -

    -

    1. Remove the main body ECU (multiplex network body ECU).

      Click here

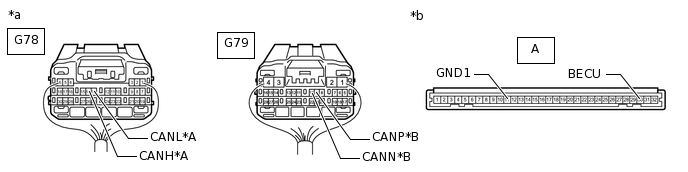

      C279368C01

      *A

      Bus 2

      *B

      Sub Bus 1

      *a

      Rear view of wire harness connector

      (to Main Body ECU [Multiplex Network Body ECU])

      *b

      Front view of wire harness connector

      (to Main Body ECU [Multiplex Network Body ECU])

    2. Reconnect the instrument panel junction block assembly connectors.

    3. Measure the resistance according to the value(s) in the table below.

      Table 11. Bus 2

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G78-14 (CANH) - G78-13 (CANL)

      G - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G78-14 (CANH) - A-11 (GND1)

      G - None

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G78-13 (CANL) - A-11 (GND1)

      W - None

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G78-14 (CANH) - A-30 (BECU)

      G - None

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G78-13 (CANL) - A-30 (BECU)

      W - None

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 12. Sub Bus 1

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G79-9 (CANP) - G79-10 (CANN)

      B - GR

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      G79-9 (CANP) - A-11 (GND1)

      B - None

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G79-10 (CANN) - A-11 (GND1)

      GR - None

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G79-9 (CANP) - A-30 (BECU)

      B - None

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G79-10 (CANN) - A-30 (BECU)

      GR - None

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  8. CHECK COMBINATION METER ASSEMBLY

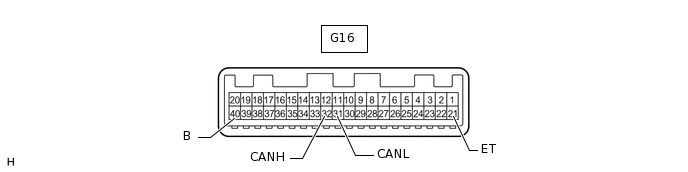

    E161130E26

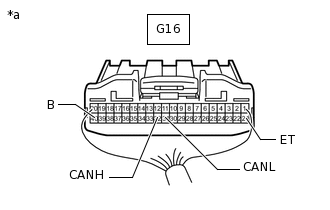

    1. C240157C07

      *a

      Rear view of wire harness connector

      (to Combination Meter Assembly)

      Disconnect the combination meter assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G16-32 (CANH) - G16-31 (CANL)

      G - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      G16-32 (CANH) - G16-21 (ET)

      G - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G16-31 (CANL) - G16-21 (ET)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G16-32 (CANH) - G16-40 (B)

      G - Y

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G16-31 (CANL) - G16-40 (B)

      W - Y

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  9. CHECK AIRBAG SENSOR ASSEMBLY

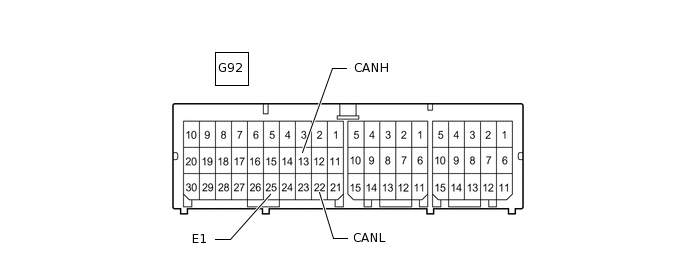

    C123353E89
    1. C227529C03

      *a

      Rear view of wire harness connector

      (to Airbag Sensor Assembly)

      *b

      Front view of DLC3

      Disconnect the airbag sensor assembly connector.

      Click here

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G92-13 (CANH) - G92-22 (CANL)

      BR - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G92-13 (CANH) - G92-25 (E1)

      BR - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G92-22 (CANL) - G92-25 (E1)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G92-13 (CANH) - G14-16 (BAT)

      BR - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G92-22 (CANL) - G14-16 (BAT)

      W - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

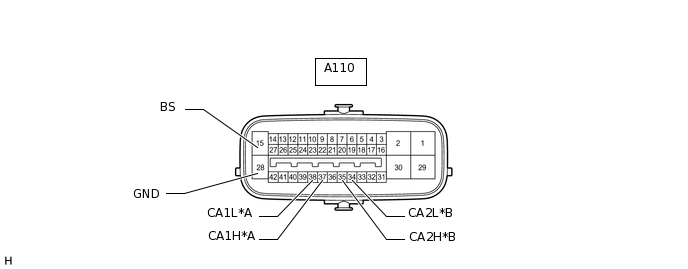

  10. C156569C39

    *A

    Bus 2

    *B

    Sub Bus 15

    CHECK BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (SKID CONTROL ECU)

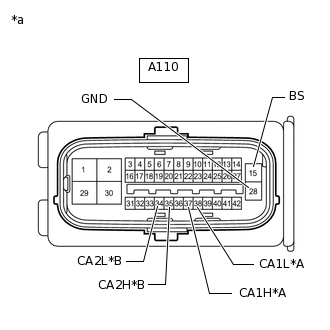

    1. C297192C45

      *A

      Bus 2

      *B

      Sub Bus 15

      *a

      Front view of wire harness connector

      (to Brake Booster with Master Cylinder Assembly [Skid Control ECU])

      Disconnect the brake booster with master cylinder assembly (skid control ECU) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Table 13. Bus 2

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      A110-37 (CA1H) - A110-38 (CA1L)

      GR - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      A110-37 (CA1H) - A110-28 (GND)

      GR - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A110-38 (CA1L) - A110-28 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A110-37 (CA1H) - A110-15 (BS)

      GR - B

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      A110-38 (CA1L) - A110-15 (BS)

      W - B

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 14. Sub Bus 15

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      A110-35 (CA2H) - A110-34 (CA2L)

      LG - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      A110-35 (CA2H) - A110-28 (GND)

      LG - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A110-34 (CA2L) - A110-28 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      A110-35 (CA2H) - A110-15 (BS)

      LG - B

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      A110-34 (CA2L) - A110-15 (BS)

      W - B

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

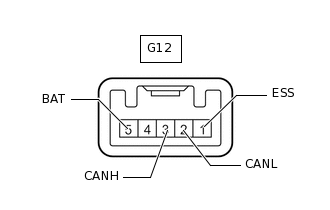

  11. CHECK SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY (STEERING ANGLE SENSOR)

    C228050E03

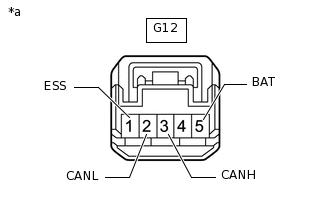

    1. C277459C04

      *a

      Front view of wire harness connector

      (to Spiral with Sensor Cable Sub-assembly [Steering Angle Sensor])

      Disconnect the spiral with sensor cable sub-assembly (steering angle sensor) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G12-3 (CANH) - G12-2 (CANL)

      P - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G12-3 (CANH) - G12-1 (ESS)

      P - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G12-2 (CANL) - G12-1 (ESS)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G12-3 (CANH) - G12-5 (BAT)

      P - B

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G12-2 (CANL) - G12-5 (BAT)

      W - B

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

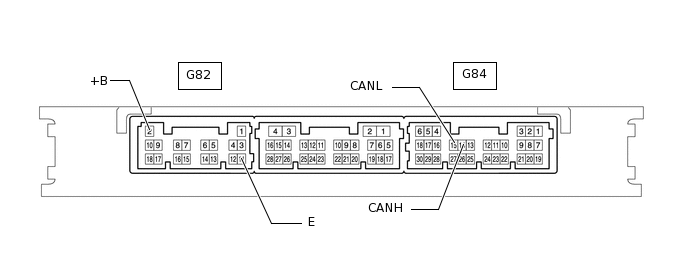

  12. B264892E76

    CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

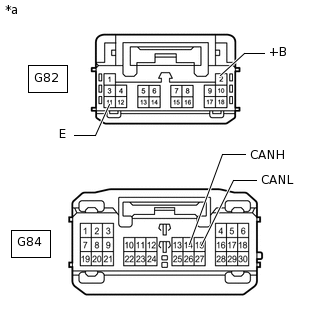

    1. C277455C02

      *a

      Front view of wire harness connector

      (to Certification ECU [Smart Key ECU Assembly])

      Disconnect the certification ECU (smart key ECU assembly) connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G84-14 (CANH) - G84-15 (CANL)

      R - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G84-14 (CANH) - G82-11 (E)

      R - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G84-15 (CANL) - G82-11 (E)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G84-14 (CANH) - G82-2 (+B)

      R - W

      HIGH-level CAN bus wire - Battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G84-15 (CANL) - G82-2 (+B)

      W - W

      LOW-level CAN bus wire - Battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  13. CHECK RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio and Visual System [for Radio and Display Type])

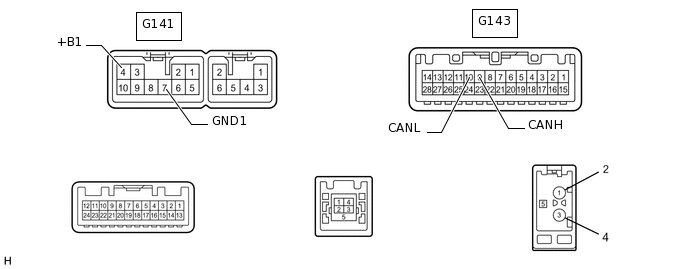

    C297912E01

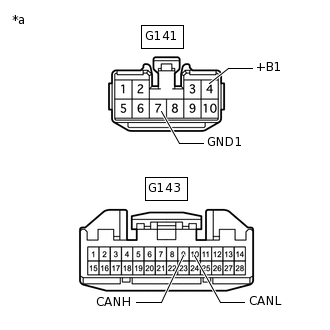

    1. C277477C07

      *a

      Front view of wire harness connector

      (to Radio and Display Receiver Assembly)

      Disconnect the radio and display receiver assembly connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G143-9 (CANH) - G143-10 (CANL)

      Y - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G143-9 (CANH) - G141-7 (GND1)

      Y - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G143-10 (CANL) - G141-7 (GND1)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G143-9 (CANH) - G141-4 (+B1)

      Y - SB

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G143-10 (CANL) - G141-4 (+B1)

      W - SB

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

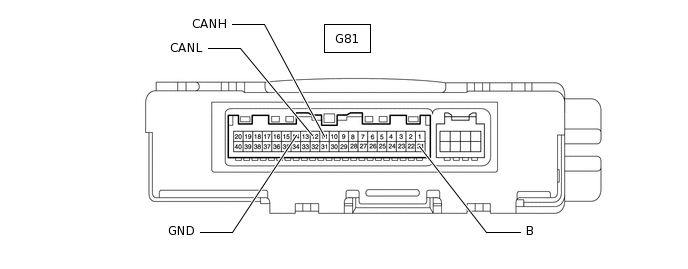

  14. C278749E01

    CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

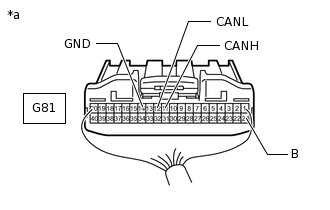

    1. C240157C06

      *a

      Rear view of wire harness connector

      (to Air Conditioning Amplifier Assembly)

      Disconnect the air conditioning amplifier assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G81-11 (CANH) - G81-12 (CANL)

      B - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G81-11 (CANH) - G81-14 (GND)

      B - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G81-12 (CANL) - G81-14 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G81-11 (CANH) - G81-21 (B)

      B - GR

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G81-12 (CANL) - G81-21 (B)

      W - GR

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  15. CHECK POWER STEERING ECU ASSEMBLY

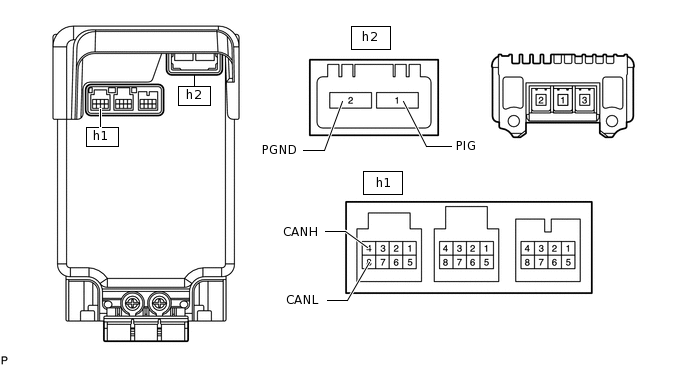

    C239855E06

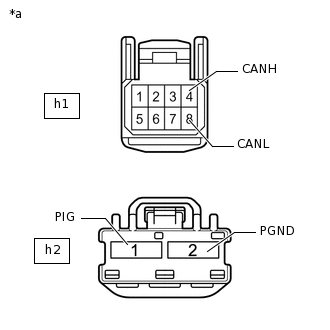

    1. C279366C01

      *a

      Front view of wire harness connector

      (to Power Steering ECU Assembly)

      Disconnect the power steering ECU assembly connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      h1-4 (CANH) - h1-8 (CANL)

      W - B

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      h1-4 (CANH) - h2-2 (PGND)

      W - B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      h1-8 (CANL) - h2-2 (PGND)

      B - B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      h1-4 (CANH) - h2-1 (PIG)

      W - R

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      h1-8 (CANL) - h2-1 (PIG)

      B - R

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

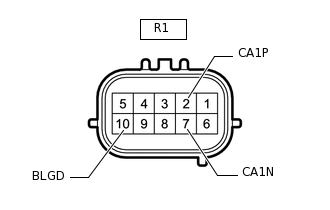

  16. CHECK BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System)

    C270135E10

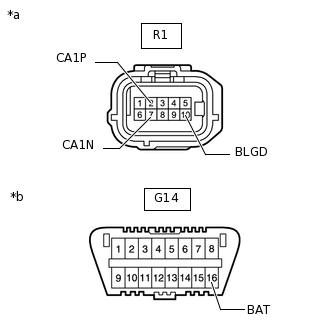

    1. C268298C15

      *a

      Front view of wire harness connector

      (to Blind Spot Monitor Sensor LH)

      *b

      Front view of DLC3

      Disconnect the blind spot monitor sensor LH connector.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      R1-2 (CA1P) - R1-7 (CA1N)

      R - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      R1-2 (CA1P) - R1-10 (BLGD)

      R - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      R1-7 (CA1N) - R1-10 (BLGD)

      LG - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      R1-2 (CA1P) - G14-16 (BAT)

      R - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      R1-7 (CA1N) - G14-16 (BAT)

      LG - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  17. CHECK MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System)

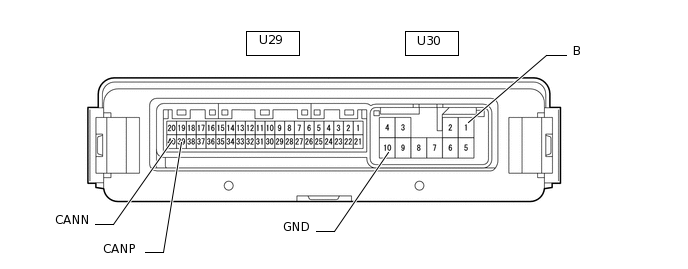

    C323669E09

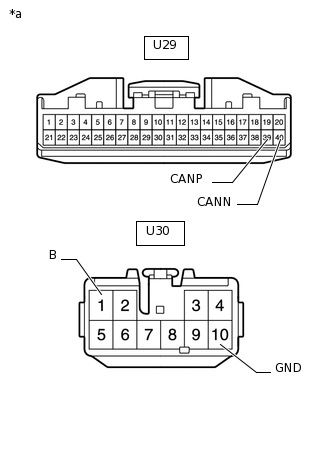

    1. C325480C21

      *a

      Front view of wire harness connector

      (to Multiplex Network Door ECU)

      Disconnect the multiplex network door ECU connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      U29-39 (CANP) - U29-40 (CANN)

      G - GR

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      U29-39 (CANP) - U30-10 (GND)

      G - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      U29-40 (CANN) - U30-10 (GND)

      GR - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      U29-39 (CANP) - U30-1 (B)

      G - W

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      U29-40 (CANN) - U30-1 (B)

      GR - W

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

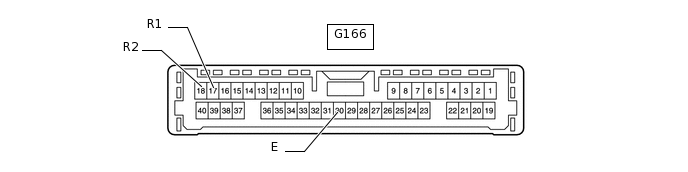

  18. C251659E06

    CHECK CLEARANCE WARNING ECU ASSEMBLY (w/ TOYOTA Parking Assist-sensor System)

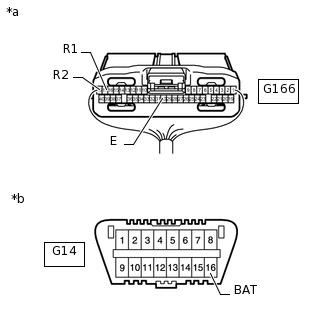

    1. C251149C12

      *a

      Rear view of wire harness connector

      (to Clearance Warning ECU Assembly)

      *b

      Front view of DLC3

      Disconnect the clearance warning ECU assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G166-17 (R1) - G166-18 (R2)

      R - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G166-17 (R1) - G166-30 (E)

      R - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G166-18 (R2) - G166-30 (E)

      LG - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G166-17 (R1) - G14-16 (BAT)

      R - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G166-18 (R2) - G14-16 (BAT)

      LG - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  19. CHECK FORWARD RECOGNITION CAMERA (w/ Pre-crash Safety System)

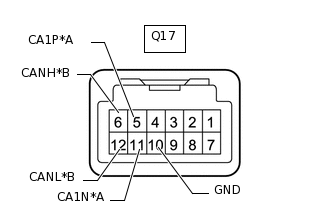

    C279365C02

    *A

    Bus 5

    *B

    Local Bus

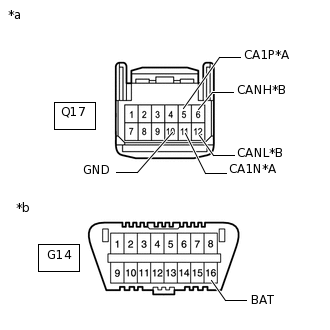

    1. C267485C14

      *A

      Bus 5

      *B

      Local Bus

      *a

      Front view of wire harness connector

      (to Forward Recognition Camera)

      *b

      Front view of DLC3

      Disconnect the forward recognition camera connector.

    2. Measure the resistance according to the value(s) in the table below.

      Table 15. Bus 5

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      Q17-5 (CA1P) - Q17-11 (CA1N)

      G - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      Q17-5 (CA1P) - Q17-10 (GND)

      G - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Q17-11 (CA1N) - Q17-10 (GND)

      LG - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Q17-5 (CA1P) - G14-16 (BAT)

      G - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      Q17-11 (CA1N) - G14-16 (BAT)

      LG - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 16. Local Bus

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      Q17-6 (CANH) - Q17-12 (CANL)

      L - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      Q17-6 (CANH) - Q17-10 (GND)

      L - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Q17-12 (CANL) - Q17-10 (GND)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Q17-6 (CANH) - G14-16 (BAT)

      L - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      Q17-12 (CANL) - G14-16 (BAT)

      W - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

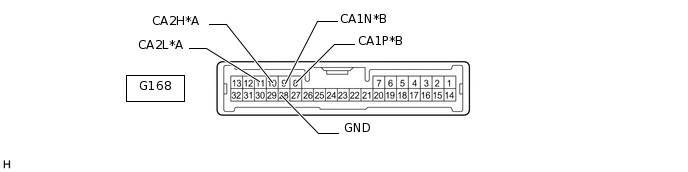

  20. C334530C04

    *A

    Bus 5

    *B

    Local Bus

    CHECK DRIVING SUPPORT ECU ASSEMBLY (w/ Pre-crash Safety System)

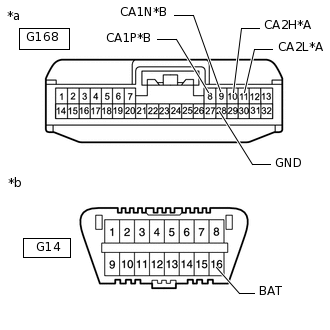

    1. C339054C02

      *A

      Bus 5

      *B

      Local Bus

      *a

      Front view of wire harness connector

      (to Driving Support ECU Assembly)

      *b

      Front view of DLC3

      Disconnect the driving support ECU assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Table 17. Bus 5

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G168-10 (CA2H) - G168-11 (CA2L)

      P - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G168-10 (CA2H) - G168-28 (GND)

      P - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G168-11 (CA2L) - G168-28 (GND)

      LG - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G168-10 (CA2H) - G14-16 (BAT)

      P - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G168-11 (CA2L) - G14-16 (BAT)

      LG - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 18. Local Bus

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      G168-8 (CA1P) - G168-9 (CA1N)

      B - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      G168-8 (CA1P) - G168-28 (GND)

      B - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G168-9 (CA1N) - G168-28 (GND)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      G168-8 (CA1P) - G14-16 (BAT)

      B - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      G168-9 (CA1N) - G14-16 (BAT)

      W - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

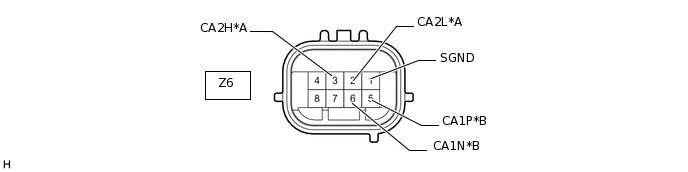

  21. E321782C05

    *A

    Bus 5

    *B

    Local Bus

    CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-crash Safety System)

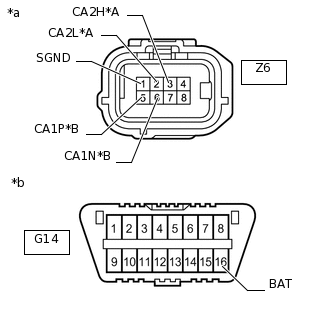

    1. C339037C03

      *A

      Bus 5

      *B

      Local Bus

      *a

      Front view of wire harness connector

      (to Millimeter Wave Radar Sensor Assembly)

      *b

      Front view of DLC3

      Disconnect the millimeter wave radar sensor assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Table 19. Bus 5

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      Z6-3 (CA2H) - Z6-2 (CA2L)

      B - LG

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      Z6-3 (CA2H) - Z6-1 (SGND)

      B - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Z6-2 (CA2L) - Z6-1 (SGND)

      LG - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Z6-3 (CA2H) - G14-16 (BAT)

      B - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      Z6-2 (CA2L) - G14-16 (BAT)

      LG - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
      Table 20. Local Bus

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      Z6-5 (CA1P) - Z6-6 (CA1N)

      SB - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      108 to 132 Ω

      Z6-5 (CA1P) - Z6-1 (SGND)

      SB - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Z6-6 (CA1N) - Z6-1 (SGND)

      W - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      Z6-5 (CA1P) - G14-16 (BAT)

      SB - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      Z6-6 (CA1N) - G14-16 (BAT)

      W - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

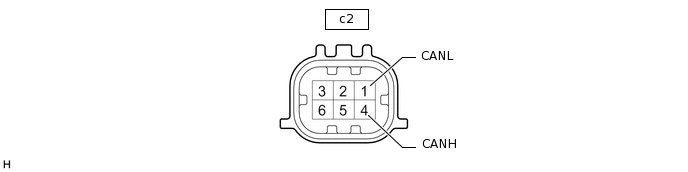

  22. E286120E22

    CHECK TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System [for Camera built-in ECU])

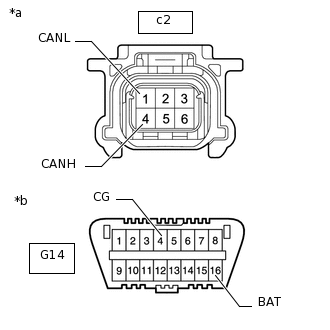

    1. C311029C04

      *a

      Front view of wire harness connector

      (to Television Camera Assembly)

      *b

      Front view of DLC3

      Disconnect the television camera assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      c2-4 (CANH) - c2-1 (CANL)

      P - G

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      c2-4 (CANH) - G14-4 (CG)

      P - BR

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      c2-1 (CANL) - G14-4 (CG)

      G - BR

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      c2-4 (CANH) - G14-16 (BAT)

      P - L

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      c2-1 (CANL) - G14-16 (BAT)

      G - L

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

  23. CHECK POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Seat Memory)

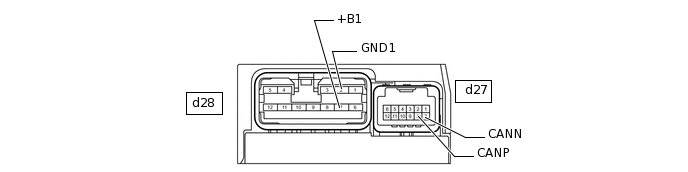

    B219506E59

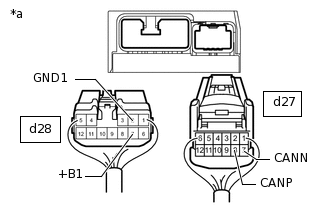

    1. C219234C24

      *a

      Rear view of wire harness connector

      (to Position Control ECU and Switch Assembly)

      Disconnect the position control ECU assembly connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Terminal No. (Symbol)

      Wiring Color

      Terminal Description

      Condition

      Specified Condition

      d27-8 (CANP) - d27-7 (CANN)

      L - W

      HIGH-level CAN bus wire - LOW-level CAN bus wire

      Cable disconnected from negative (-) auxiliary battery terminal

      54 to 69 Ω

      d27-8 (CANP) - d28-2 (GND1)

      L - W-B

      HIGH-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      d27-7 (CANN) - d28-2 (GND1)

      W - W-B

      LOW-level CAN bus wire - GND

      Cable disconnected from negative (-) auxiliary battery terminal

      200 Ω or higher

      d27-8 (CANP) - d28-7 (+B1)

      L - W

      HIGH-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher

      d27-7 (CANN) - d28-7 (+B1)

      W - W

      LOW-level CAN bus wire - auxiliary battery positive (+)

      Cable disconnected from negative (-) auxiliary battery terminal

      6 kΩ or higher
