EMISSION CONTROL SYSTEM

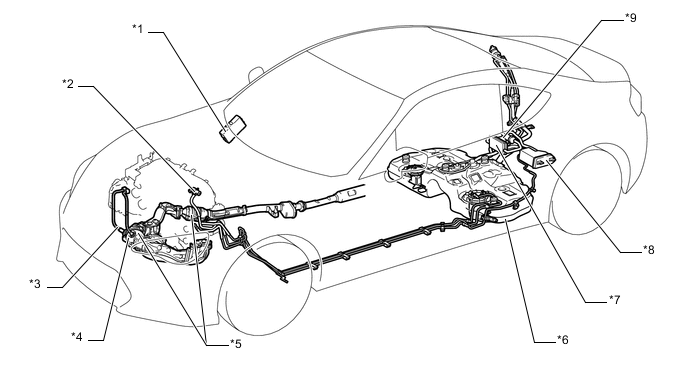

| *1 | ECM | *2 | Vacuum Switching Valve Assembly |
| *3 | Oxygen Sensor | *4 | Wide Range Air Fuel Ratio Sensor |
| *5 | TWC | *6 | Fuel Tank Assembly |
| *7 | Canister Filter | *8 | Charcoal Canister Assembly |
| *9 | Canister Pump Module (ELCM) | - | - |

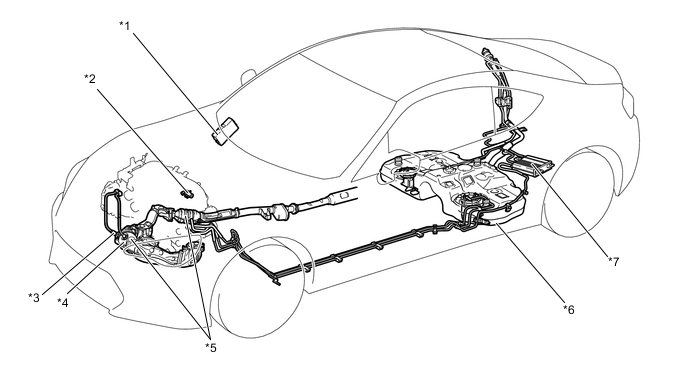

| *1 | ECM | *2 | Vacuum Switching Valve Assembly |
| *3 | Oxygen Sensor | *4 | Wide Range Air Fuel Ratio Sensor |
| *5 | TWC | *6 | Fuel Tank Assembly |
| *7 | Charcoal Canister Assembly | - | - |
