ENGINE IMMOBILISER SYSTEM

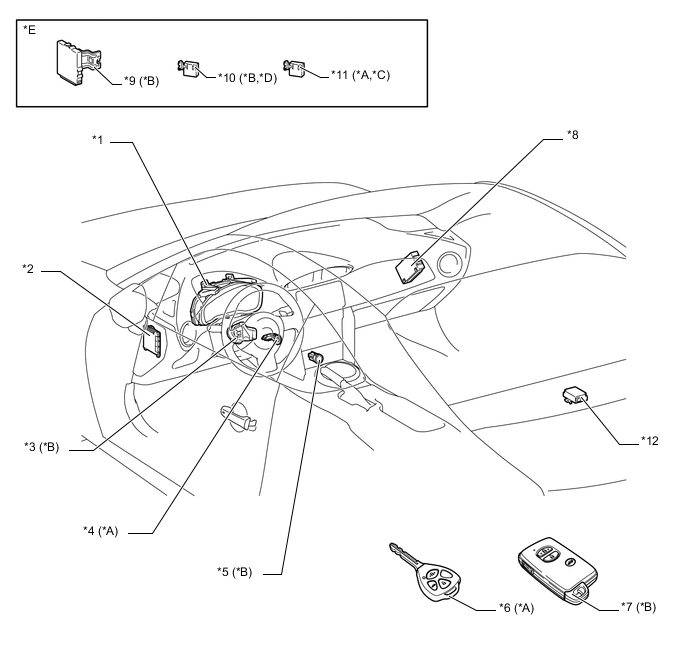

Figure 1. ( - 2017/10)
| *A | Models without entry and start system | *B | Models with entry and start system |
| *C | Models with transponder key ECU assembly | *D | Models with immobiliser code ECU |
| *E | Refer to the service bulletin for the installation of the part. | - | - |
| *1 | Combination Meter Assembly | *2 | Main Body ECU (Network Gateway ECU) |
| *3 | Steering Lock Actuator Assembly | *4 | Immobiliser Antenna - Transponder Key Amplifier |
| *5 | Push Start Switch - Transponder Key Amplifier |
*6 | Ignition Key |
| *7 | Key | *8 | ECM |
| *9 | Smart Key ECU Assembly | *10 | Immobiliser Code ECU |
| *11 | Transponder Key ECU Assembly | *12 | Door Control Receiver |

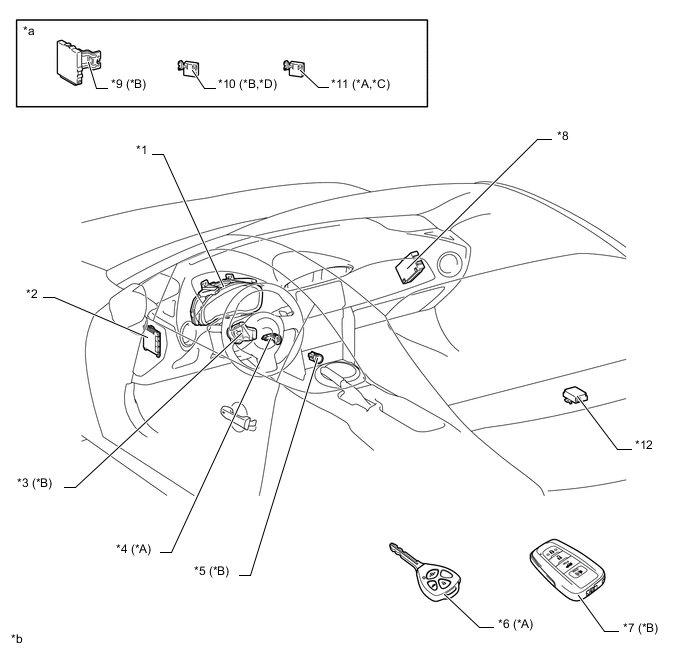

Figure 2. (2017/10 - )
| *A | Models without entry and start system | *B | Models with entry and start system |
| *C | Models with transponder key ECU assembly | *D | Models with immobiliser code ECU |
| *1 | Combination Meter Assembly | *2 | Main Body ECU (Network Gateway ECU) |
| *3 | Steering Lock Actuator Assembly | *4 | Immobiliser Antenna
|
| *5 | Push Start Switch
|
*6 | Ignition Key |
| *7 | Key | *8 | ECM |
| *9 | Smart Key ECU Assembly | *10 | Immobiliser Code ECU |
| *11 | Transponder Key ECU Assembly | *12 | Door Control Receiver |
| *a | Refer to the service bulletin for the installation of the part. | *b | The illustrations shown are examples only. |
