SFI SYSTEM(w/o EGR System) MIL Circuit

DTC Code DTC Name
MIL Circuit

DESCRIPTION

The Malfunction Indicator Lamp (MIL) is used to indicate vehicle malfunctions detected by the ECM.

The MIL operation can be checked visually. When the power switch is turned on (IG), the MIL should be illuminated and should then turn off after the power switch on (READY). If the MIL remains illuminated or is not illuminated, conduct the following troubleshooting procedure using the GTS.

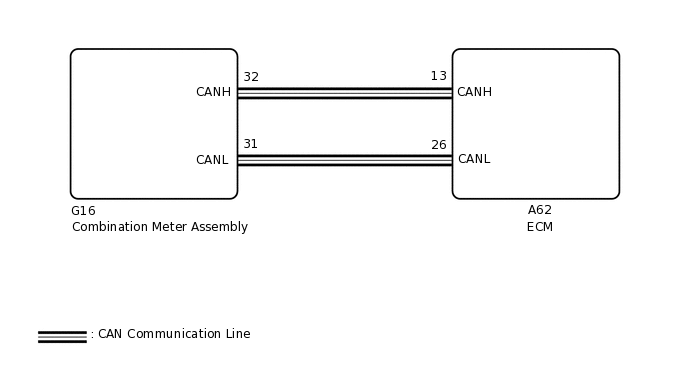

WIRING DIAGRAM

A280176E79

PROCEDURE

  1. CHECK THAT MIL IS ILLUMINATED

    1. Perform troubleshooting in accordance with the table below.

    Result

    MIL

    Condition

    Proceed to

    Illuminates → Turns off

    Power switch on (IG) → engine is started

    A

    Other than above

    -

    B

    A

    CHECK FOR INTERMITTENT PROBLEMS

    B
  2. CHECK COMMUNICATION BETWEEN GTS AND ECM

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Check the communication between the GTS and ECM.

      Tip:

      It can be checked using the "Engine and ECT" item of the Data List.

    Result

    Result

    Proceed to

    Communication is possible

    A

    Communication is not possible

    B

    B

    GO TO VC OUTPUT CIRCUIT

    A
  3. CHECK WHETHER DTC OUTPUT RECURS

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: System Select / Health Check.

    5. Check if any DTCs have been detected. Note down any DTCs.

    Result

    Result

    Proceed to

    DTCs are not output

    A

    Any DTCs is output

    B

    Tip:

    Check for detected DTCs output from other ECUs which relate to the MIL.

    B

    REPAIR CIRCUIT INDICATED BY OUTPUT

    A
  4. PERFORM ACTIVE TEST USING GTS

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Combination Meter / Active Test / Check Engine Indicator.

      Body Electrical > Combination Meter > Active Test

      Tester Display

      Check Engine Indicator

    5. Check the status of the MIL while performing the Active Test.

      Result

      Result

      Proceed to

      Changes

      A

      Does not change

      B

    A

    REPLACE ECM

    B

    REPLACE COMBINATION METER ASSEMBLY
