DYNAMIC RADAR CRUISE CONTROL SYSTEM

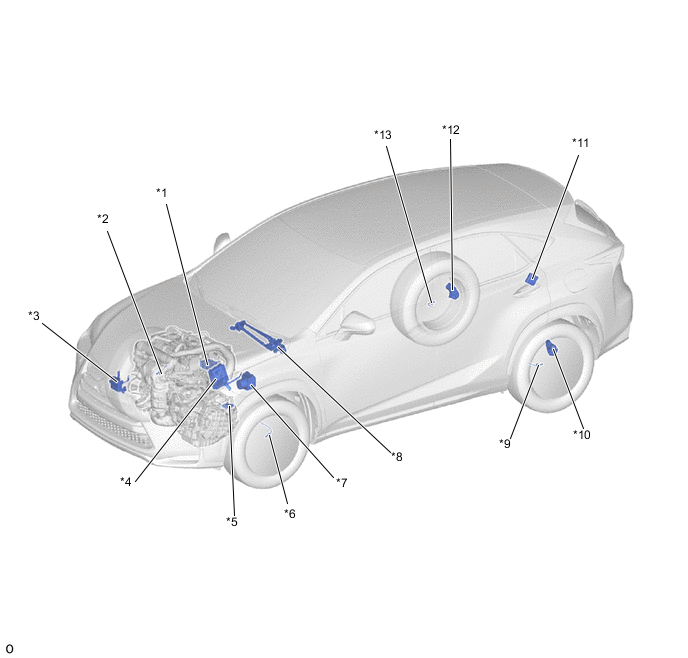

| *1 | Throttle Body with Motor Assembly | *2 | Front Speed Sensor RH |
| *3 | Millimeter Wave Radar Sensor Assembly | *4 | ECM |
| *5 | Park/Neutral Position Switch Assembly | *6 | Front Speed Sensor LH |
| *7 | Brake Actuator Assembly
|
*8 | Windshield Wiper Motor Assembly |
| *9 | Rear Speed Sensor LH | *10 | Parking Brake Actuator Assembly LH |
| *11 | Parking Brake ECU Assembly | *12 | Parking Brake Actuator Assembly RH |
| *13 | Rear Speed Sensor RH | - | - |

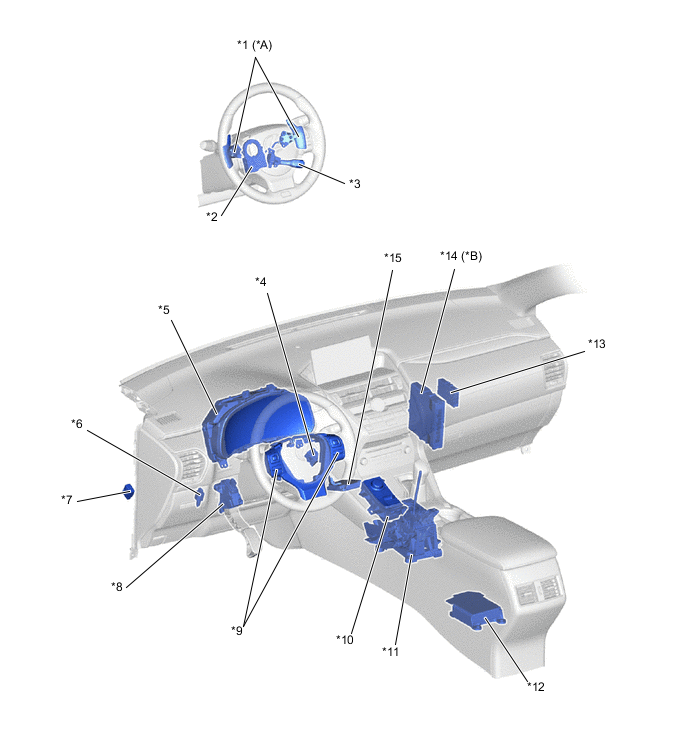

| *A | Models with Shift Paddle | *B | Models with Stop and Start System |
| *1 | Transmission Shift Switch Assembly | *2 | Steering Sensor |
| *3 | Cruise Control Main Switch | *4 | Skid Control Buzzer Assembly |
| *5 | Combination Meter Assembly | *6 | Stop Light Switch Assembly |
| *7 | Stop Light Control ECU Assembly | *8 | Accelerator Pedal Sensor Assembly |
| *9 | Steering Pad Switch Assembly
|
*10 | Integration Control and Panel Assembly
|
| *11 | Transmission Floor Shift Assembly
|
*12 | Airbag ECU Assembly |
| *13 | Network Gateway ECU | *14 | Engine Stop and Start ECU |
| *15 | Driving Support ECU Assembly | - | - |
