ENTRY AND START SYSTEM


  1. FUNCTION OF MAIN COMPONENTS


    1. The main components of the start function have the following functions:

      Component Function

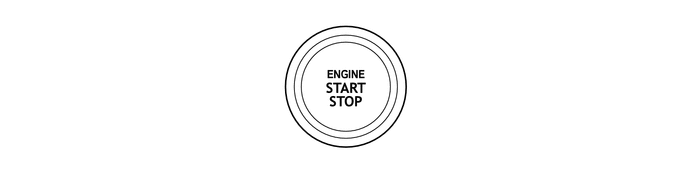

      Engine Switch


      • Transponder Key Amplifier

      • Transmits the engine switch signal to the smart key ECU assembly.

      • Receives the ID code and transmits it to the smart key ECU assembly when the key battery is low.
      Key Receives signals from the antennas and returns the ID code to the door control receiver.
      Indoor Electrical Key Oscillator The indoor electrical key oscillator and the No. 2 indoor electrical key oscillator transmits a request signal from the smart key ECU assembly and form an actuation area inside the vehicle interior.
      Door Control Receiver Receives the ID code from the key and transmits it to the smart key ECU assembly.
      Smart Key ECU Assembly

      • Turns the power source off, on (ACC), on (IG), or to START in accordance with the shift lever position and the state of the stop light switch assembly*1, or the state of the clutch start switch assembly*2.

      • Controls the start function in accordance with the signals received from the switches and each ECU.

      • Certifies the ID code received from the door control receiver and transmits the certification results to the immobiliser code ECU*3and steering lock ECU.

      Stop Light Switch Assembly*1

      		Outputs the state of the brake pedal to the smart key ECU assembly.

      Clutch Start Switch Assembly*2

      		Outputs the state of the clutch pedal to the smart key ECU assembly and ECM.

      Immobiliser Code ECU*3

      		Receives the steering unlock or engine immobiliser unset request signal from the smart key ECU assembly, certifies it, and transmits each unset signal to the steering lock ECU and ECM.
      ECM

      • Receives the engine start request signal from the smart key ECU assembly, turns on the starter relay assembly, and starts the engine.

      • Receives the signal from the smart key ECU assembly or immobiliser code ECU*3and performs engine ignition and injection.

      Steering Lock Actuator Assembly


      • Steering Lock ECU

      		 The steering wheel locks and unlocks according to signals from the smart key ECU assembly.

      Park/Neutral Position Switch Assembly*1

      		Outputs the shift lever position signal to the smart key ECU assembly.

      Tech Tips

      *1: Models with A/T

      *2: Models with M/T

      *3: Models with immobiliser code ECU

    2. The main components of the entry function have the following functions:

      Component Function

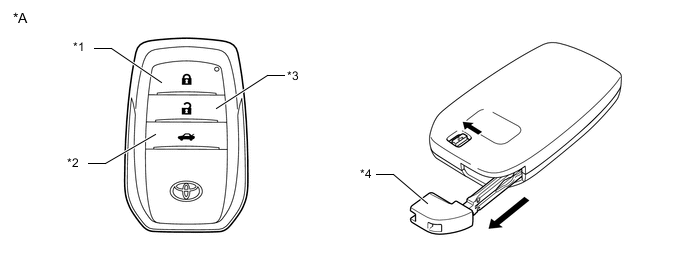

      Key

      • When receiving the request signals that are output by the indoor electrical key oscillators, door electrical key oscillators, and electrical key antenna, the key outputs information such as the key ID and vehicle ID.

      • When the driver pushes the lock or unlock button on the key, the key outputs a request signal.

      • When receiving the radio wave that is output by the transponder key amplifier in the engine switch, the key outputs information such as the key ID and vehicle ID.

      • Integrates with the mechanical key in order to unlock the doors when the key battery is low.
      Smart Key ECU Assembly

      • Judges and certifies the key.

      • Controls the indoor electrical key oscillators, door electrical key oscillator, electrical key antenna and touch sensor.

      • Transmits door lock/unlock request signals during the entry function.

      • Transmits steering lock/unlock request signals.

      • Transmits engine immobiliser set/unset request signals.

      • Records the ID codes between the smart key ECU assembly, immobiliser code ECU*1, and steering lock ECU.
      Main Body ECU (Network Gateway ECU)

      • Receives the request signal from the smart key ECU assembly and actuates the door lock motors to unlock or lock all the doors, and the luggage door.

      • Transmits the condition of each door to the smart key ECU assembly.
      Door Handle Assembly Touch Sensor Transmits the door unlock request signal to the smart key ECU assembly.
      Lock Sensor Transmits the door lock request signal to the smart key ECU assembly.
      Door Electrical Key Oscillator Transmits the request signal from the smart key ECU assembly, and forms an actuation area around the driver's and the front passenger's doors.
      Indoor Electrical Key Oscillator Transmits the request signal from the smart key ECU assembly, and forms an actuation area inside the interior of the vehicle and the interior of the luggage compartment.
      Electrical Key Antenna Transmits the request signal from the smart key ECU assembly, and forms an actuation area around the luggage compartment.
      Door Control Receiver Receives the ID code from the key in the actuation area and transmits it to the smart key ECU assembly.
      Back Door Opener Switch Transmits a luggage door open request signal to the smart key ECU assembly.

      Wireless Door Lock Buzzer*2, *3

      When the smart key ECU assembly detects human errors, it warns the driver by sounding the wireless door lock buzzer*2, sounding the buzzer in the combination meter assembly, and displaying a warning message on the multi-information display in accordance with the request signal from the smart key ECU assembly.

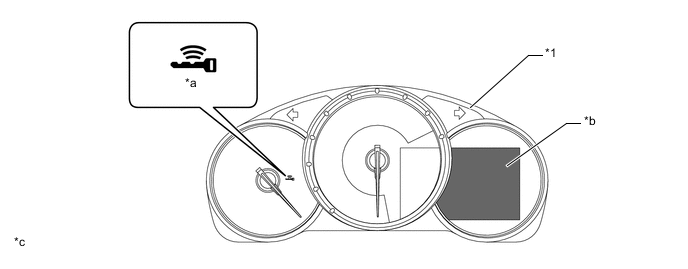

      Combination Meter Assembly Buzzer
      Multi-information Display

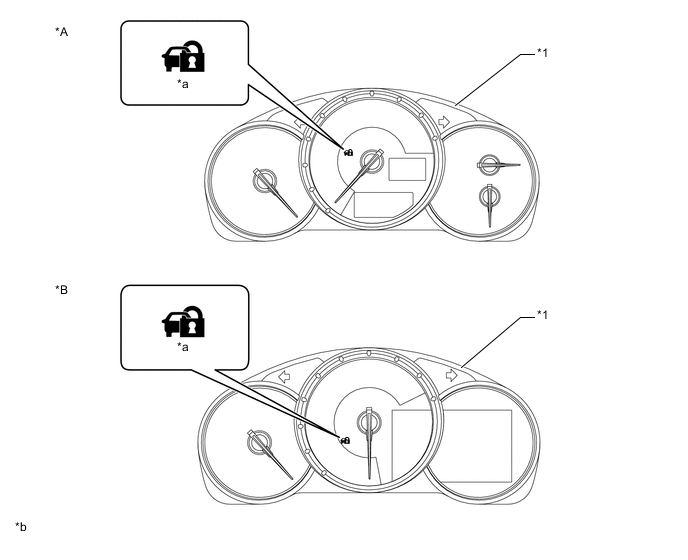

      Smart Warning Indicator Light Illuminates or blinks using different colors to inform the driver of the power source mode or of a system malfunction.

      Tech Tips

      *1: Models with immobiliser code ECU

      *2: Except models for China ( - 2017/10)

      *3: Models for Korea and Europe (2017/10 - )

  2. OPERATING CONDITION


    1. The special functions of the entry and start system only work when the key is in the actuation area formed by the 5 oscillators and the antenna.

    2. The indoor electrical key oscillator and No. 2 indoor electrical key oscillator form the actuation area of the start function.

    3. The door electrical key oscillators and the electrical key antenna form the actuation area of the entry function.

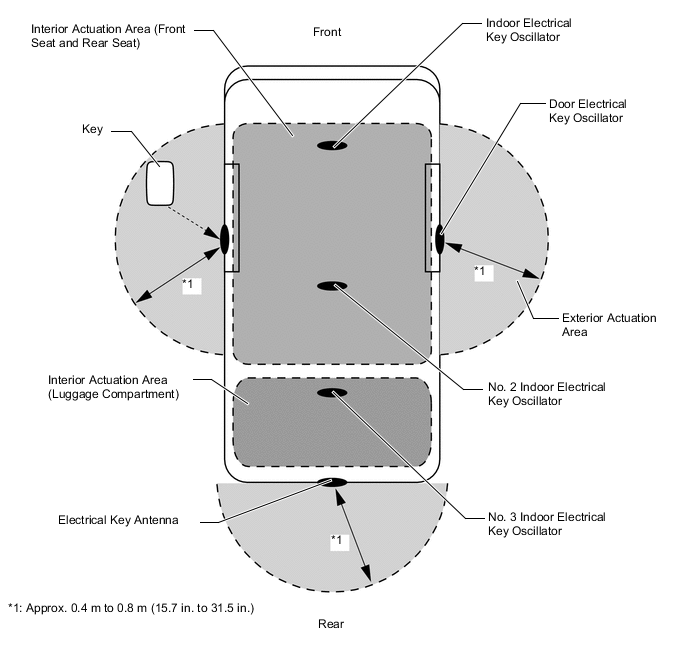

      B0082L4E02
      Actuation Area Details
      Interior

      The interior actuation area of the indoor electrical key oscillators is formed when the door is opened or closed, when the engine switch is pressed, when the brake pedal is depressed*1, when the clutch pedal is depressed*2, when a warning is activated.
      Exterior The exterior actuation area formed by the door electrical key oscillators and electrical key antenna is approx. 0.4 m to 0.8 m (15.7 in. to 31.5 in.) from the outside door handle of the front doors, or the center of the rear bumper.
      Front Door Area The exterior actuation area of the door electrical key oscillators is formed by transmitting a request signal every 0.25 seconds while the engine switch is off and each door is locked. In this way the proximity of a key can be detected. When locking the door using the lock sensor on the outside door handle, the actuation area is formed when the lock sensor is touched.
      Luggage Compartment Door Area The exterior actuation area of the electrical key antenna is formed when the back door opener switch is on.

      Tech Tips

      *1: Models with A/T

      *2: Models with M/T

  3. FUNCTION


    1. Start Function


      1. The start function has different power source modes to suit the brake pedal condition and shift lever position*1or clutch pedal condition*2.

      2. When a driver who is carrying a key enters the vehicle while the power source mode is off, and presses the engine switch without depressing the brake pedal*1or the clutch pedal*2, the power source mode turns on (ACC) to show a message appears on the multi-information display and the smart warning indicator light blinks green. With each pressing of the engine switch, the power source mode switches as follows: off → on (ACC) → on (IG) → off.

      3. When a driver who is carrying a key enters the vehicle while the power source mode is off, and depresses the clutch pedal*2or depresses the brake pedal while the shift lever is in P or N*1, the message appears on the multi-information display and the smart warning indicator light illuminates green. Pressing the engine switch with the message appears on the multi-information display and smart warning indicator light illuminated will cause the engine to start.

      4. When starting the engine with the vehicle stopped, pressing the engine switch while the shift lever is in P will cause the power source mode to turn off. Pressing the engine switch when the shift lever is in any position other than P will cause the mode to turn on (ACC).*1

      5. When starting the engine with the vehicle stopped, pressing the engine switch will cause the power source mode to turn off.*2

        Tech Tips

        *1: Models with A/T

        *2: Models with M/T

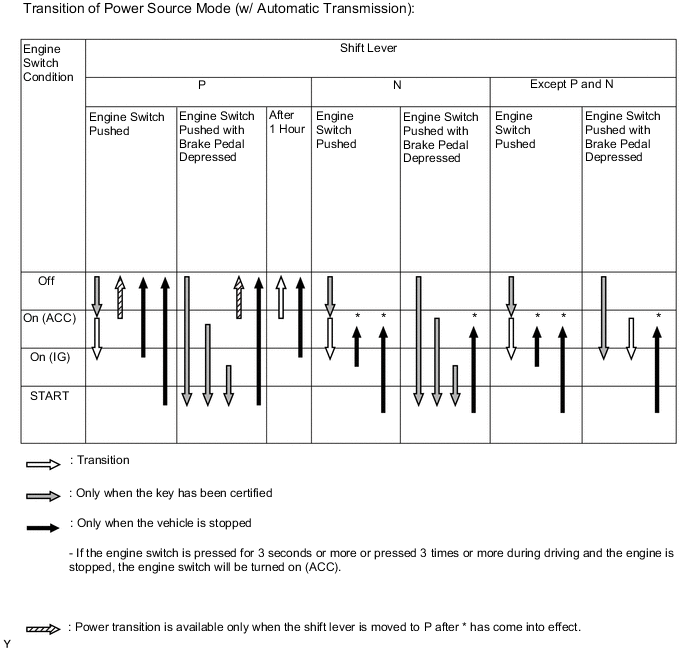

        B0082KHE06

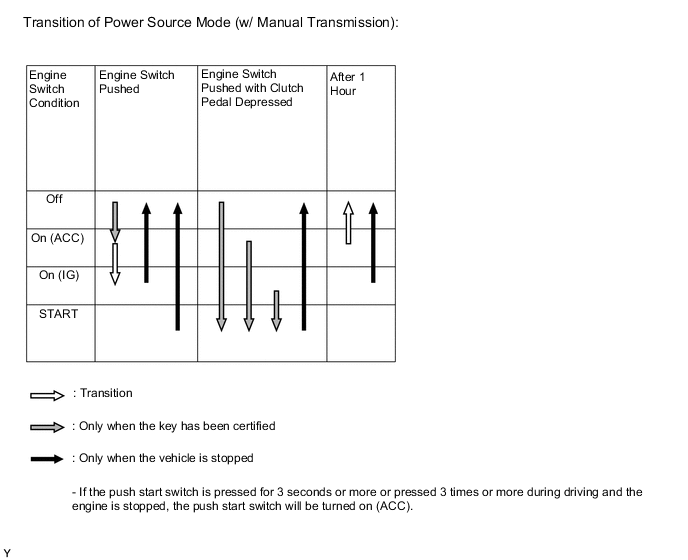

        B0082L5E14

      6. Transition of the power source mode when the key battery is low or the key is not operating normally due to an electromagnetic interference:


        1. The driver uses the mechanical key (which is built into the key) to unlock the door, and enters the vehicle while carrying the key.

        2. If the driver places the Toyota mark on the key in contact with the front of the engine switch while depressing the brake pedal*1or clutch pedal*2, the buzzer will sound and power source mode (IG) will be engaged.

        3. With each pressing of the engine switch, the power source mode switches as follows: off → on (ACC) → on (IG) → off. After it turns off, it will be necessary to place the Toyota mark on the key in contact with the front of the engine switch again.

        Tech Tips

        *1: Models with A/T

        *2: Models with M/T

      7. Starting the engine when the key battery is low or the key is not operating normally due to an electromagnetic interference:


        1. The driver uses the mechanical key (which is built into the key) to unlock the door, and enters the vehicle while carrying the key.

        2. If the driver places the Toyota mark of the key in contact with the front of the engine switch while depressing the clutch pedal*2or the brake pedal while the shift lever is in P or N*1, the buzzer will sound, smart warning indicator light illuminates green and power source mode (IG) will be engaged.

        3. The driver presses the engine switch while depressing the brake pedal*1or clutch pedal*2.

        4. Pressing the engine switch starts the engine.


          • *1: Models with A/T

          • *2: Models with M/T

        Tech Tips


        • Normally, the operation of the engine switch is disabled while the vehicle is being driven. However, if the engine must be stopped in an emergency while the vehicle is in motion, the driver can press the engine switch 3 times quickly or press it for approximately 3 seconds or more to stop the engine.

        • If no signals are transmitted to the smart key ECU assembly due to a malfunction in the stop light switch*1or the clutch start switch*2, the engine will not start even if the driver presses the engine switch while depressing the brake pedal*1or the clutch pedal*2. In this case, the driver can start the engine by the following operations: pressing the engine switch to turn the power source mode from off to on (ACC), and pressing the engine switch again and holding it for 15 seconds or more.

        • The above 2 operations must be applied only in emergency situations. Under normal conditions, the engine must not be stopped by pressing the engine switch during driving or started without depressing the clutch pedal*2or brake pedal when the shift lever is in any position other than P or N*1.


          • *1: Models with A/T

          • *2: Models with M/T

    2. Entry Function


      1. The entry function consists of the following functions:

        Function Outline
        Wireless Door Lock Control This function is a convenient system for locking and unlocking all the doors and unlocking the luggage door from a distance. The operation of this function in the entry and start system is the same as that of the wireless door lock control system. However, the receiver in the smart key ECU assembly uses a door control receiver to perform the control.
        Entry Illumination When a key enters any actuation area of the door electrical key oscillator, the map light and engine switch illumination light illuminate.
        Entry Unlock

        When a key is located in the exterior actuation area of a door electrical key oscillator, touching any touch sensor will cause doors to unlock.


        • The driver or passenger front door handle assembly outside unlocks the all doors.*1,*2

        • On the driver side, only the driver's door unlocks, while on the passenger side, all doors unlock.*3,*4

        Entry Lock When a key is located in the exterior actuation area of any door electrical key oscillator or electrical key antenna and the engine switch is off, all doors can be locked by simply touching the lock sensor or pressing the lock switch.
        Entry Luggage Door Open When a key is in an exterior actuation area of the electrical key antenna, the luggage door can be opened manually by simply pressing the back door opener switch.
        Prevention of Key Confinement

        • Prevents the confinement of the key if the door is locked from the outside door handle while the key is still inside the vehicle.

        • When all doors are locked, the wireless door lock buzzer will sound if the luggage door is closed and a key has been left inside the luggage compartment.*5, *6

        Key Cancel

        The following key functions can be canceled by following certain procedures:


        • Entry unlock/lock

        • Luggage door

        • Prevention of key confinement

        • Warning
        Battery Saving To prevent the key battery and the vehicle battery from becoming discharged, the battery saving function activates when the vehicle remains unused for a long period of time.
        Warning

        The entry and start system causes the smart key ECU assembly to sound the buzzer in the combination meter assembly and wireless door lock buzzer*5, illuminate the smart warning indicator light and displaying a warning message on the multi-information display in order to alert the driver.
        Key Code Registration Function A total of 7 keys can be registered. Key registration enables the registering (writing and storing) of transmitter recognition codes in the EEPROM that is contained in the smart key ECU assembly.

        Tech Tips

        *1: Except models for Korea

        *2: Models without double locking system

        *3: Modes for Korea

        *4: Models with double locking system

        *5: Except models for China ( - 2017/10)

        *6: Models for Korea and Europe (2017/10 - )

    3. Wireless Door Lock Control Function


      1. The wireless door lock control function has the following functions:

        Function Outline

        Customized Body Electronics System*1

        All Doors Lock Pressing the lock button of the key locks all doors. Default Setting is on.
        All Doors Unlock

        • Pressing the unlock button of the key unlocks all doors. The customization function can be used to set this to unlock the driver side door.*3,*4

        • Pressing the unlock button of the key twice within 5 seconds unlocks all doors after it first unlocks the driver's door. The customization function can be used to set this to unlock the all doors.*5,*6

        		Default Setting is on.
        Luggage Door Open Pressing the luggage door open button of the key opens the luggage door. Default Setting is on.
        Answer Back

        • The hazard light flashes once when locking and twice when unlocking to inform that the operation has been completed.*3

        • When the door is locked, the hazard light flashes once and the wireless door lock buzzer sounds once. When the door is unlocked, the hazard light flashes twice and the wireless door lock buzzer sounds twice. When the luggage door is unlocked, the wireless door lock buzzer sounds once. This is to inform the driver that the operation has been completed.*5

        		Default Setting is on.
        Automatic Lock

        If none of the doors are opened within 30 seconds*3(60 seconds)*5after they have been unlocked by the wireless door lock control, all the doors will be locked again automatically. The starting time of the automatic lock function can be changed to 120, 60, or 30 seconds.

        Standard*2

        Door Ajar Warning*7, *8

        		If any door is open or ajar, pressing the lock button of the key will cause the wireless door lock buzzer to sound for about 10 seconds. Default Setting is on.

        Tech Tips

        *1: The wireless door lock control function can be set on or off. For details, refer to the Repair Manual.

        *2: When the wireless door lock control function is on.

        *3: Except models for Korea

        *4: Models without double locking system

        *5: Models for Korea

        *6: Models with double locking system

        *7: Except models for China ( - 2017/10)

        *8: Models for Korea and Europe (2017/10 - )

    4. Entry Unlock Function


      1. When a key is located in the exterior actuation area of any door electrical key oscillator, touching the touch sensor of an outside door handle will cause doors to unlock.


        • The driver or passenger front door handle assembly outside unlocks the all doors.*1,*2

        • On the driver side, only the driver's door unlocks, while on the passenger side, all doors unlock.*3,*4

      2. After the doors are unlocked, the hazard lights will flash twice as an answer back, and the wireless door lock buzzer*3will sound twice.

        Tech Tips

        *1: Except models for Korea

        *2: Models without double locking system

        *3: Models for Korea

        *4: Models with double locking system

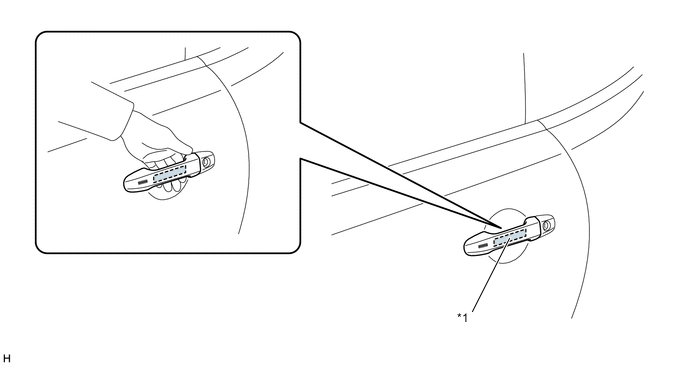

        B0082JTE02
        Text in Illustration
        *1 Touch Sensor - -

    5. Entry Lock Function


      1. When all doors are closed and a key is located in the exterior actuation area of any door electrical key oscillator, all doors can be locked through the following operations: touching the lock sensor of an outside door handle.

      2. After the doors are locked, the hazard lights will flash once as an answer back, and the wireless door lock buzzer*will sound once.

        Tech Tips

        *: Models for Korea

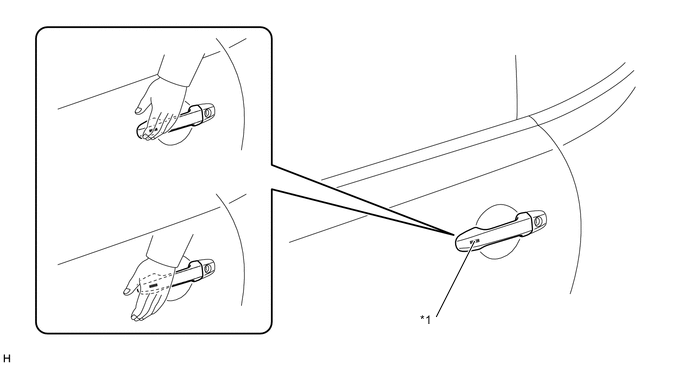

        B0082LRE02
        Text in Illustration
        *1 Lock Sensor - -

    6. Entry Luggage Door Unlock Function


      1. When a key is located in the exterior actuation area of the electrical key antenna, pressing the back door opener switch will cause the luggage door to unlock.

    7. Warning Function


      1. When any of the situations below occur, the entry and start system sounds a buzzer, displays a message on the multi-information display, illuminates the smart warning indicator light in the combination meter assembly and sounds the wireless door lock buzzer*1, *2in order to alert the driver.

        Situation Condition

        A*3

        		The shift lever is in any position other than P and the power source mode is anything other than off.
        B The driver door is opened while the steering is unlocked.
        C

        The shift lever is in P*3and the power source mode is anything other than off.
        D The occupant leaves with the key.
        E The engine switch is operated while the key is outside the actuation area.
        F The entry lock is operated while the key is inside the vehicle.
        G The entry lock is operated while any of the doors are open.
        H The luggage door is closed while the key is inside the luggage compartment.

        I*4

        		Because the key is confined inside the vehicle interior, the stop-confinement door unlock function will activate.
        J The key battery is low.
        K The steering lock cannot be released.
        L A steering lock ECU malfunction has been detected.

        M*4

        		An engine start method is displayed.
        N The key and engine switch ID codes have been authenticated.
        O The vehicle is driven without the key.

        P*5

        		A clutch start switch assembly malfunction has been detected.
        Q Automatic power off operation occurs.

        Tech Tips

        *1: Except models for China ( - 2017/10)

        *2: Models for Korea and Europe (2017/10 - )

        *3: Models with A/T

        *4: Models for Europe (RHD)

        *5: Models with M/T

      2. There are 3 patterns for situation A (models with A/T)


        • When the engine is left running and the shift lever is in any position other than P, the driver opens the door and attempts to get out of the vehicle. In this situation, the following control is performed:

          Possible Effects without Warning Sudden vehicle start, vehicle theft, vehicle roll-away
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Power source mode is anything other than off.

          • Shift lever is in any position other than P.

          • Driver door is opened.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Continuously sounds
          Smart Warning Indicator Light -
          Multi-information Display

          The following warning message is displayed:


          • Shift to P position when parked
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is off.

          • Shift lever is in P.

          • Driver door is closed.

          • Vehicle speed is above 0.

        • Under the conditions of pattern 1, the driver closes the door and attempts to leave the vehicle holding the key. In this situation, the following control is performed:

          Possible Effects without Warning Sudden vehicle start, vehicle theft, vehicle roll-away
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Power source mode is anything other than off.

          • Shift lever is in any position other than P.

          • The state of the driver door is changed from open to closed.

          • There is no key in the cabin or in the luggage compartment.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Continuously sounds
          Smart Warning Indicator Light -
          Multi-information Display

          The following warning messages are alternately displayed:


          • Shift to P position when parked

          • Key not detected
          Wireless Door Lock Buzzer

          Continuously sounds*1, *2

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is off.

          • There is a key in the cabin or in the luggage compartment.

          • Vehicle speed is available or shift lever is in P.


            • Buzzer and wireless door lock buzzer*1, *2stop sounding.
          "SHIFT TO P POSITION" Message Warning Stop Condition

          The warning is stopped when either of the following conditions is met:


          • Shift lever is in P.

          • Vehicle speed is above 0.
          "KEY NOT DETECTED" Message Warning Stop Condition

          The warning is stopped when either of the following conditions is met:


          • Power source mode is off.

          • There is a key in the cabin or in the luggage compartment.
          Smart Warning Indicator Light

          The warning is stopped when either of the following conditions is met:


          • Power source mode is off.

          • An electrical key transmitter sub-assembly is detected in the vehicle interior.

          • Key not detected.

          Tech Tips

          *1: Except models for China ( - 2017/10)

          *2: Models for Korea and Europe (2017/10 - )


        • The driver attempts to turn the engine switch off with the shift lever in any position other than P. In this situation, the following control is performed:

          Possible Effects without Warning Discharged vehicle battery, vehicle roll-away
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Shift lever is in any position other than P.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Continuously sounds
          Smart Warning Indicator Light -
          Multi-information Display

          The following warning messages are alternately displayed:


          • Shift to P position when parked
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Shift lever is in P.

          • The engine has started.

      3. In situation B


        • If the driver door is opened while the steering is unlocked, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when one of the following conditions is met:


          • The power source mode is on (ACC) and the driver's door is opened.

          • The power source mode is off, steering is unlocked and driver door is opened.
          Warning Method Combination Meter Assembly Buzzer Intermittently sounds
          Smart Warning Indicator Light -
          Multi-information Display -
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • The power source mode is on (IG) or the driver's door is closed.

          • The power source mode is off and steering is locked.

      4. There are 2 patterns for situation C


        • When the engine is left running and the shift lever is in P*1, the driver closes the driver door and attempts to leave the vehicle while holding the key. In this situation, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Power source mode is anything other than off.

          • Shift lever is in P.*1

          • The state of the driver door is changed from open to closed.

          • There is no key in the cabin or in the luggage compartment.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Key not detected
          Wireless Door Lock Buzzer

          Sounds 3 times*2, *3

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is off.

          • There is a key in the cabin or in the luggage compartment.

          Tech Tips

          *1: Models with A/T

          *2: Except models for China ( - 2017/10)

          *3: Models for Korea and Europe (2017/10 - )

        • Under the conditions of pattern 1, the driver touches the lock sensor. In this situation, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Power source mode is anything other than off.

          • Shift lever is in P.*1

          • There is no key in the cabin or in the luggage compartment.

          • A key is outside the vehicle.

          • Lock sensor is touched.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Key not detected
          Wireless Door Lock Buzzer

          Continuously sounds*2, *3

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is off.

          • There is a key in the cabin or in the luggage compartment.

          • Shift lever is in any position other than P.*1

          • Vehicle speed is above 0.

          • Any door is opened (stops only the wireless door lock buzzer*2 , *3).

          • Any door is closed (stops only the wireless door lock buzzer*2 , *3).

          • Approx. 10 seconds have elapsed from the time the warning started (stops only the wireless door lock buzzer*2 , *3).

          Tech Tips

          *1: Models with A/T

          *2: Except models for China ( - 2017/10)

          *3: Models for Korea and Europe (2017/10 - )

      5. In situation D


        • If the engine is left running when a passenger gets out of the vehicle while holding the key, the following control is performed:

          Possible Effects without Warning Engine cannot be restarted.
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Engine switch is in the mode other than off.

          • The state of the door other than the driver door changed from open to close.

          • There is no key in the cabin or in the luggage compartment.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Key not detected
          Wireless Door Lock Buzzer

          Sounds 3 times*1, *2

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is off.

          • There is a key in the cabin or in the luggage compartment.

          Tech Tips

          *1: Except models for China ( - 2017/10)

          *2: Models for Korea and Europe (2017/10 - )

      6. In situation E


        • If the key is not within the actuation areas, the following control is performed:

          Possible Effects without Warning Driver confusion
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Engine immobiliser function is on.

          • There is no key in the cabin.

          • Engine switch is pushed.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light -
          Multi-information Display

          The following warning message is displayed:


          • Key not detected
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Approx. 15 seconds have elapsed from the time the warning started.

          • There is a key in the cabin or in the luggage compartment.

      7. In situation F


        • If the key is left in the vehicle interior and the lock sensor is touched, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Power source mode is off.

          • All doors are closed.

          • There is a key in the cabin or in the luggage compartment.

          • Lock sensor is touched.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer -
          Smart Warning Indicator Light -
          Multi-information Display

          The following warning message is displayed:


          • Key detected in vehicle
          Wireless Door Lock Buzzer

          Continuously sounds*1, *2

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is anything other than off.

          • The state of the any door is changed from close to opened.

          • Vehicle speed is above 0.

          • Doors are locked through the manual lock or wireless door lock function operation.

          • Approx. 10 seconds have elapsed from the time the warning started.

          Tech Tips

          *1: Except models for China ( - 2017/10)

          *2: Models for Korea and Europe (2017/10 - )

      8. In situation G


        • Any door is ajar, and the locking of the doors is attempted through the entry lock function by touching the lock sensor of an outside door handle. In this situation, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Power source mode is off.

          • Any door (other than the one performing the entry lock operation) is open.

          • Lock sensor is touched.

          • Doors are locked through the wireless door lock control function.

          • The key is outside the vehicle.
          Warning Method Combination Meter Assembly Buzzer -
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Key not detected
          Wireless Door Lock Buzzer

          Continuously sounds*1, *2

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is anything other than off.

          • All doors are closed.

          • Doors are unlocked through the wireless door lock control function.

          • Approx. 10 seconds have elapsed from the time the warning started.

          Tech Tips

          *1: Except models for China ( - 2017/10)

          *2: Models for Korea and Europe (2017/10 - )

      9. In situation H


        • The luggage door is closed with a key inside the luggage compartment. In this situation, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • Vehicle speed is 0.

          • All doors are closed.

          • The luggage door is closed.

          • A key is inside the luggage compartment.
          Warning Method Combination Meter Assembly Buzzer -
          Smart Warning Indicator Light -
          Multi-information Display -
          Wireless Door Lock Buzzer

          Continuously sounds*1, *2

          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Vehicle speed is above 0.

          • Luggage door is open.

          • Approx. 10 seconds have elapsed from the time the warning started.

          Tech Tips

          *1: Except models for China ( - 2017/10)

          *2: Models for Korea and Europe (2017/10 - )

      10. In situation I (models for Europe [RHD])


        • A key is confined inside the vehicle interior. In this situation, the following control is performed:

          Possible Effects without Warning Vehicle theft
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • There is a key in the cabin or in the luggage compartment.

          • Doors are locked through the wireless door lock control function.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light -
          Multi-information Display -
          Wireless Door Lock Buzzer Continuously sounds
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Engine switch is in the mode other than off.

          • The state of the any door is changed from close to opened.

          • Doors are locked through the manual lock, wireless door lock function, or key-linked lock operation.

          • Vehicle speed is above 0.

          • Approx. 10 seconds have elapsed from the time the warning started.

      11. In situation J


        • The key battery is low. In this situation, the following control is performed:

          Possible Effects without Warning Entry and start system does not function.
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • After the power source mode has been on (IG) continuously for approx. 20 minutes or more, it is changed from on (IG) to off.

          • Key battery is low.

          • There is a key in the cabin or in the luggage compartment.

          • Vehicle speed is 0.

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • The engine goes from being stopped to starting up.

          • Key battery is low.

          • There is a key in the cabin or in the luggage compartment.

          • Vehicle speed is 0.

          • After the power source mode has been on (IG) continuously for approx. 20 minutes or more, it is changed from on (IG) to off.

            After the power source mode has been on (IG) for approx. 20 minutes or more, past performance has a low-battery alarm sounding for the key battery when the power source is turned off.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Key Battery Low
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Vehicle speed is above 0.

          • Approx. 15 seconds have elapsed from the time the warning started.

      12. In situation K


        • The steering lock cannot be released. In this situation, the following control is performed:

          Possible Effects without Warning Entry and start system does not function.
          Warning Condition The steering lock does not release when performing the release operation, preventing the engine from starting.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Steering Lock active
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Steering lock is unlocked.

          • Approx. 15 seconds have elapsed from the time the warning started.

      13. In situation L


        • A malfunction of the steering lock ECU is detected. In this situation, the following control is performed:

          Possible Effects without Warning Malfunction detection
          Warning Condition

          The smart key ECU assembly gives a warning when one of the following conditions is met:


          • Steering lock actuator assembly or smart key ECU assembly malfunction, or steering lock/unlock switch failure.

          • An IG relay output circuit error is generated 3 or more times in a row.

          • A vehicle speed data error is detected.

          • The driver side door goes from being closed to being open while the power is off, after which the clutch start switch is in the on state continuously for 5 minutes or longer.*

          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display -
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Failure has been resolved.

          • Approx. 15 seconds have elapsed from the time the warning started.

          Tech Tips

          *: Models with M/T

      14. In situation M (models for Europe [RHD])


        • The driver uses a mechanical key to open the door and presses the engine switch, but no key is detected in the vehicle interior. Or, the driver presses the engine switch, but no key is detected 2 consecutive times in the vehicle interior. In these situations, the following control is performed:

          Possible Effects without Warning Usability function
          Prerequisite

          • Engine immobiliser function is on.

          • No key is located inside the vehicle interior.

          • Unlocking with a mechanical key or operating the engine switch has resulted in a certification failure 2 consecutive times.
          Warning Condition Engine switch is pushed.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Depress brake pedal, touch engine switch with key*1

          • Depress clutch pedal, touch engine switch with key*2

          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • The key is inside the vehicle interior.

          • Approx. 30 seconds have elapsed from the time the warning started.

          Tech Tips

          *1: Models with A/T

          *2: Models with M/T

      15. In situation N


        • The driver holds a key against the engine switch. In this situation, the following control is performed:

          Possible Effects without Warning Usability function
          Warning Condition ID code certification is completed.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light -
          Multi-information Display -
          Wireless Door Lock Buzzer -

      16. In situation O


        • The driver started driving without having a key in the vehicle interior. In this situation, the following control is performed:

          Possible Effects without Warning Restarting prevention
          Warning Condition

          The smart key ECU assembly gives a warning when all the following conditions are satisfied:


          • The power source mode is on (IG) .

          • The key removal alarm is on.

          • Vehicle speed is above 0.

          • No key is located inside the vehicle interior.
          Warning Method Combination Meter Assembly Buzzer Intermittently sounds
          Smart Warning Indicator Light Blinks
          Multi-information Display

          The following warning message is displayed:


          • Key not detected
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Power source mode is off.

          • A key is inside the vehicle interior.

          • Approx. 7 seconds have elapsed from the time the warning started.

      17. In situation P (models with M/T)


        • The clutch start switch assembly has failed. In this situation, the following control is performed:

          Possible Effects without Warning Malfunction detection
          Prerequisite

          • Power source mode is off.

          • Clutch start switch assembly is on for 5 minutes or longer.
          Warning Condition Driver door is changed from closed to open.
          Warning Method Combination Meter Assembly Buzzer Sounds once
          Smart Warning Indicator Light Blinks
          Multi-information Display -
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Approx. 15 seconds have elapsed from the time the warning started.

          • Clutch start switch assembly failure has been resolved.

      18. In situation Q


        • An automatic power off operation is detected. In this situation, the following control is performed:

          Possible Effects without Warning Usability function
          Warning Condition

          The warning is started when all the following conditions are satisfied:


          • Shift lever position is in P.*

          • Power source mode is on (ACC) or on (IG).

          • Engine is stopped.

          • Vehicle speed is 0.
          Warning Method Combination Meter Assembly Buzzer -
          Smart Warning Indicator Light -
          Multi-information Display

          The following warning message is displayed:


          • Auto Power Off to Conserve Battery
          Wireless Door Lock Buzzer -
          Warning Stop Condition

          The warning is stopped when one of the following conditions is met:


          • Approx. 10 seconds have elapsed from the time the warning started.

          • Power source mode is turned to anything other than off.

          Tech Tips

          *: Models with A/T

    8. Battery Saving Function


      1. Vehicle Battery Saving


        • Control


          • If the engine is not started for 5 days or longer, this function stops the request signals transmitted by the door electrical key oscillator (the lock and touch sensors at the driver and front passenger doors remain active, therefore, these doors can be locked or unlocked by touching the sensors).

          • If the engine is not started for 14 days or longer, this function prohibits the locking or unlocking operation of the doors other than the driver door.

        • Revert Condition 1 (clear the day count)


          • Power source mode is on

        • Revert Condition 2 (return to sixth-day-equivalent day count)


          • Doors are locked or unlocked through the wireless door lock control function.

          • Doors are locked or unlocked by touching the lock or touch sensor on the driver door.

          • Doors are locked or unlocked with a mechanical key.*

          • Any door is opened or closed.

            Tech Tips

            *: Models for Europe (RHD)

      2. Key Battery Saving


        • Control


          • If a key is located in the exterior actuation area for 10 minutes or longer, this function stops the request signals transmitted by the door electrical key oscillator and the electrical key antenna.

        • Revert Condition


          • Doors are locked or unlocked through the wireless door lock control function.

          • Doors are locked or unlocked by touching the lock or touch sensor of any door.

          • Doors are locked or unlocked with a mechanical key.*

          • Any door is opened.

          • Any door is unlocked.

            Tech Tips

            *: Models for Europe (RHD)

    9. Key Cancel Function


      1. A key cancel function is provided to make it possible to disable the entry and start system. Key cancel can be operated when certain operations are performed when the vehicle is in the following conditions:


        • Engine switch is off.

        • Driver door is closed.

        • Driver door is unlocked.

          Tech Tips

          The operation procedure is as follows:


          1. Unlock once with the unlock button of the key.

          2. Open the driver door within 5 seconds.

          3. Unlock twice with the unlock button of the key within 5 seconds.

          4. Repeat open → close twice for the driver door within 30 seconds, and open again. (Driver door: open → close → open → close → open)

          5. Unlock twice with the unlock button of the key within 30 seconds.

          6. Repeat open → close once for the driver door within 30 seconds, and open again. (Driver door: open → close → open)

          7. Close the driver door within 5 seconds.

          8. When key cancel is activated, the wireless door lock buzzer sounds once.

          9. To return to the original condition, perform the procedures again. When key cancel is returned, the wireless door lock buzzer sounds twice.

    10. Key Code Registration Function


      1. The table below shows the 4 special ID code registration function modes through which up to 7 different codes can be registered. The codes are electronically registered (written and stored) in the EEPROM. For details of the recognition code registration procedure, refer to the Service Bulletin.

        Mode Function
        Rewrite Clears all previously registered codes and registers only the newly received codes. This mode is used whenever a transmitter or an integration relay is replaced.
        Add Adds a newly received code while preserving previously registered codes. This mode is used when adding a new transmitter.
        Confirm Confirms how many codes are currently registered. When adding a new code, this mode is used to check how many codes already exist.
        Prohibit Clears all registered codes. This mode is used when a key is lost.

  4. CONSTRUCTION


    1. Key


      1. The key consists of a mechanical key, a transmitter for the wireless door lock control and a transceiver for the entry and start system.

      2. The transceiver for the entry and start system receives the signals from the oscillators and returns the ID code to the door control receiver.

      3. The transmitter for the wireless door lock control has a lock button, unlock button, luggage door open button and panic alarm button*.

        Tech Tips

        *: Models for Korea

      4. When the key battery is low, the radio wave response received from the engine switch is returned to the engine switch by the key.

      5. This mechanical key works for the driver door, but cannot be used to start the engine.

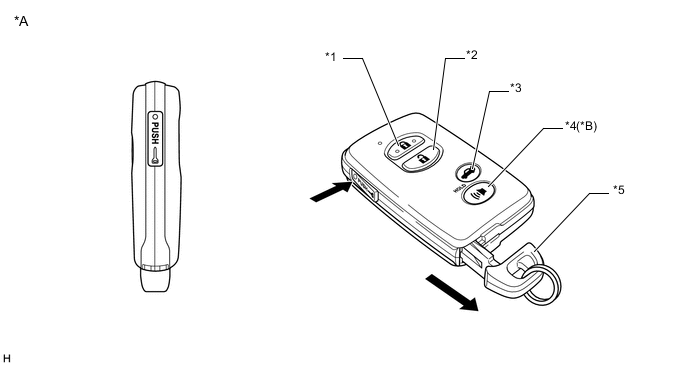

        Figure 1. Electrical Key transmitter Sub-assembly ( - 2017/10)

        B0082K9E07
        Text in Illustration
        *A Except Models for China *B Models for Korea
        *1 Lock Button *2 Unlock Button
        *3 Luggage Door Open Button *4 Panic Alarm Button
        *5 Mechanical Key - -

        Figure 2. Electrical Key Transmitter Sub-assembly ( - 2017/10)

        B0082JSE02
        Text in Illustration
        *A Models for China - -
        *1 Lock Button *2 Luggage Door Open Button
        *3 Unlock Button *4 Mechanical Key

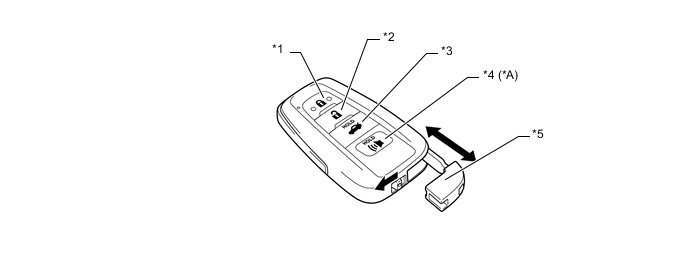

        Figure 3. Electrical Key Transmitter Sub-assembly (2017/10 - )

        B0082KOC02
        *A Models for Korea - -
        *1 Lock Button *2 Unlock Button
        *3 Luggage Door Open Button *4 Panic Alarm Button
        *5 Mechanical Key - -

    2. Engine Switch


      1. The engine switch consists of a momentary type switch, illumination, antenna coil, and transponder key amplifier.

        B0082L2

    3. Combination Meter Assembly


      1. When the smart key ECU assembly detects an abnormality with the entry and start system, it makes the smart warning indicator light blink in yellow and displays a warning message on the multi-information display. If the engine is stopped in this state, it might not be possible to restart it.

        B0082IFE02
        Text in Illustration
        *1 Combination Meter Assembly - -
        *a Smart Warning Indicator Light *b Multi-information Display
        *c This illustration shown is an example only. - -

      2. The current power condition can be confirmed through the illumination or blinking and emission color of the smart warning indicator light provided on the combination meter assembly.

      3. When the smart key ECU assembly detects an abnormality of the entry and start system, the smart warning indicator light blinks in yellow to inform the driver.

        Models with A/T
        Power Source Condition Smart Warning Indicator Light
        Brake pedal not depressed Brake pedal depressed with shift lever in P or N
        Off Off On (Green)
        On (ACC), On (IG) Blinks slowly (Green) On (Green)
        Engine Running Off Off
        Steering Wheel Lock not Unlocked Blinks (Green) for 15 seconds Blinks (Green) for 15 seconds
        Entry and Start System Malfunction Blinks (Yellow) for 15 seconds Blinks (Yellow) for 15 seconds
        Models with M/T
        Power Source Condition Smart Warning Indicator Light
        Clutch pedal not depressed Clutch pedal depressed
        Off Off On (Green)
        On (ACC), On (IG) Blinks slowly (Green) On (Green)
        Engine Running Off Off
        Steering Wheel Lock not Unlocked Blinks (Green) for 15 seconds Blinks (Green) for 15 seconds
        Entry and Start System Malfunction Blinks (Yellow) for 15 seconds Blinks (Yellow) for 15 seconds
        Clutch Start Switch Signal Malfunction Blinks (Yellow) for 15 seconds Blinks (Yellow) for 15 seconds

    4. Security Indicator Light


      1. Security indicator light located in the combination meter assembly.

      2. Security indicator light is blinking to inform the user when the immobiliser is the set state.

      3. Security indicator light is controlled by the smart key ECU assembly.

        B0082MGE02
        Text in Illustration
        *A Models with Segment LCD Type Multi-information Display *B Models with TFT LCD Type Multi-information Display
        *1 Combination Meter Assembly - -
        *a Security Indicator Light *b This illustration shown is an example only.
        The states of the immobiliser system are as follows:
        Security Indicator Light State
        Turn Off The immobiliser system has not been set.
        Blinking The immobiliser system is active.

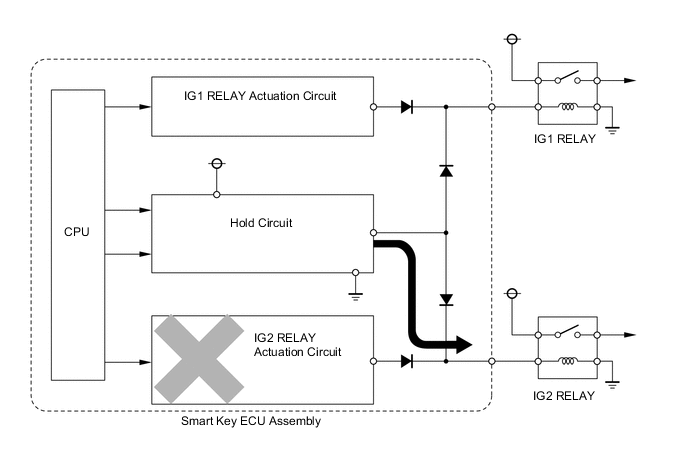

    5. Smart Key ECU Assembly


      1. The smart key ECU assembly consists of the IG1 and IG2 relay actuation circuits, a CPU, and a hold circuit.

      2. The hold circuit is installed to prevent the power supply to the relays from being cut off when an abnormality occurs in the IG1 and/or IG2 relay actuation circuits during driving.

        B0082K8E14

        Tech Tips

        The smart key ECU assembly constantly stores the present power source mode in its memory. Therefore, if the power to the smart key ECU assembly is interrupted due to the removal of the battery, the smart key ECU assembly restores the power source mode after the battery is reconnected. For this reason, if the battery is removed when the engine switch is in any position other than off, the power will be restored to the vehicle at the same time the power is restored to the smart key ECU assembly (by reconnecting the battery). Therefore, before removing or disconnecting the battery, make sure to turn the engine switch off.

  5. DIAGNOSIS


    1. The smart key ECU assembly can detect malfunctions in the start function when the power source mode is on (IG). At the same time, the ECU stores the 5-digit DTC in the memory.

    2. The DTC can be read by connecting a Grobal TechStream (GTS) to the DLC3.

    3. The start function cannot be operated again if a malfunction occurs.

    4. For details, refer to the corresponding Repair Manual for this model.
