FRONT DOOR BELT MOULDING COMPONENTS

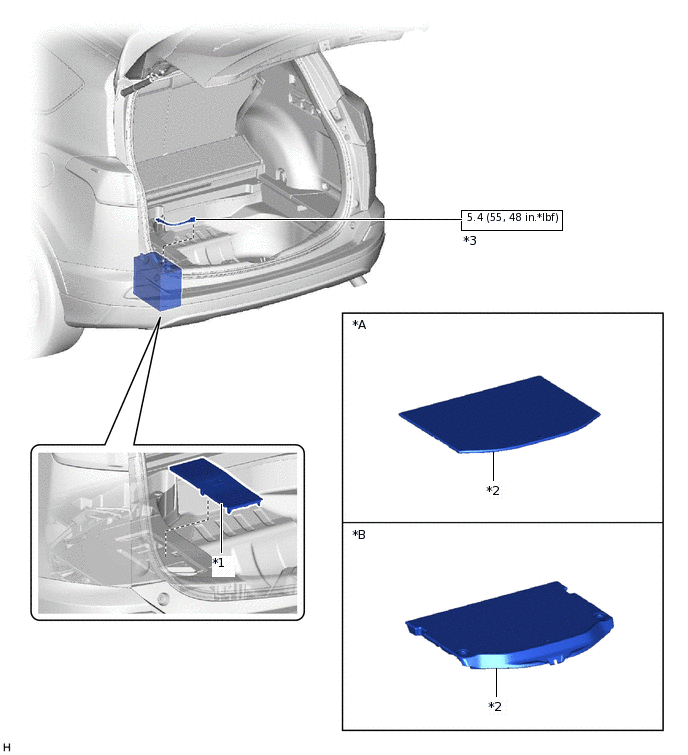

ILLUSTRATION

B439373C65

*A

w/o Spare Tire, for Compact Spare Tire

*B

for Full Size Spare Tire

*1

BATTERY SERVICE COVER

*2

DECK BOARD ASSEMBLY

*3

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

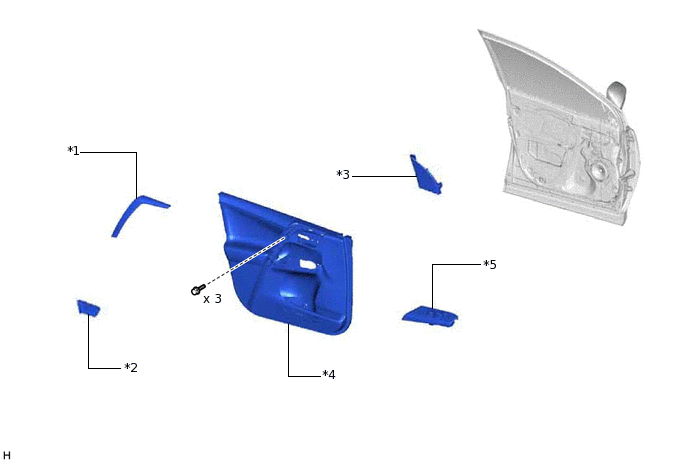

ILLUSTRATION

B340183C05

*1

FRONT DOOR ASSIST GRIP COVER LH

*2

FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

*3

FRONT DOOR LOWER FRAME BRACKET GARNISH LH

*4

FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

*5

POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

-

-

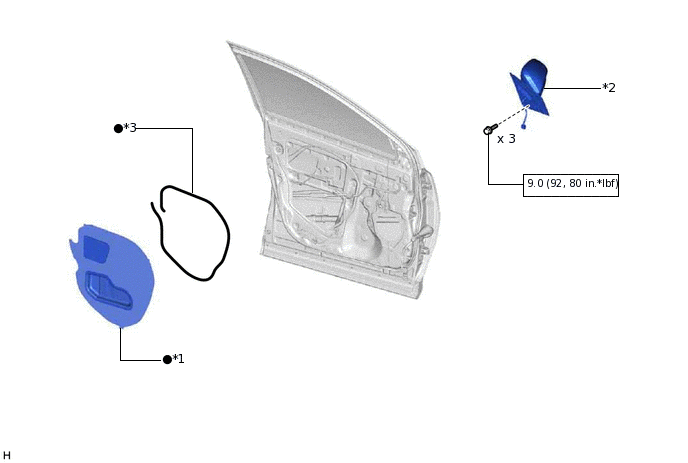

ILLUSTRATION

B340181C05

*1

FRONT DOOR SERVICE HOLE COVER LH

*2

OUTER REAR VIEW MIRROR ASSEMBLY LH

*3

BUTYL TAPE

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

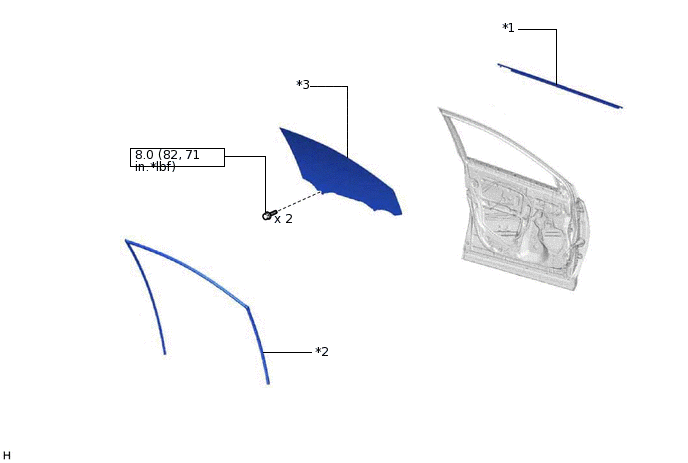

ILLUSTRATION

B340182C01

*1

FRONT DOOR BELT MOULDING ASSEMBLY LH

*2

FRONT DOOR GLASS RUN LH

*3

FRONT DOOR GLASS SUB-ASSEMBLY LH

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
