AUDIO AND VISUAL SYSTEM PARTS LOCATION

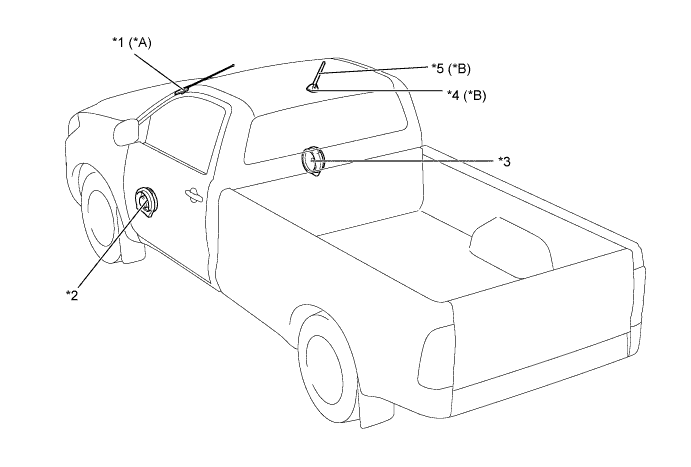

A01EZ79E01
Text in Illustration (Single Cab Models:)
*A Models with Pillar Antenna Type *B Models with Roof Antenna Type
*1 Pillar Antenna (Antenna with Holder Assembly) *2 Front No. 1 Speaker Assembly LH
*3 Front No. 1 Speaker Assembly RH *4 Amplifier Antenna Assembly
*5 Pole Antenna (Roof Antenna Pole Sub-assembly) - -

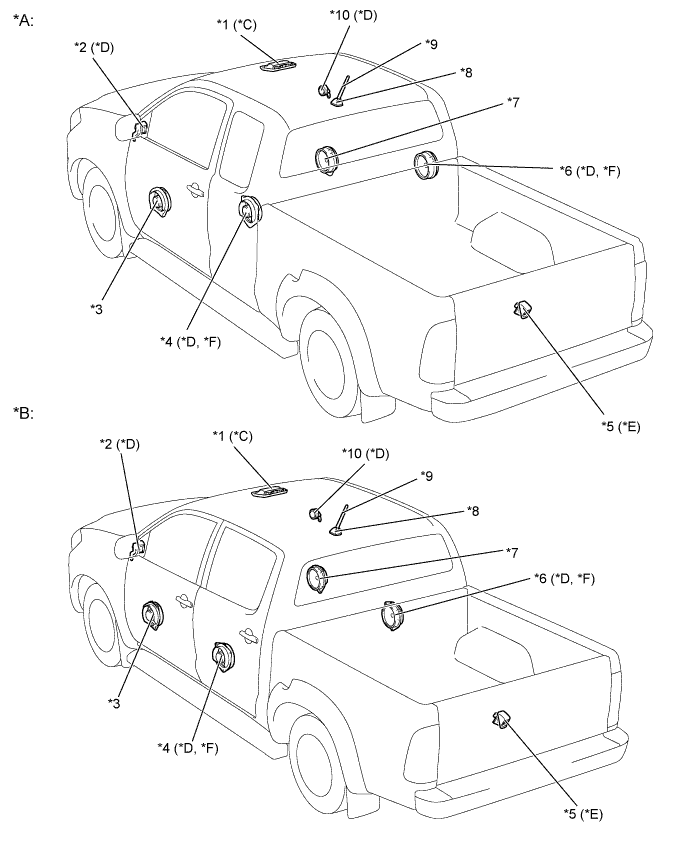

A01EZR7E01
Text in Illustration
*A Extra Cab Models *B Double Cab Models
*C Models with Bluetooth Hands-free System *D Models with 6-speaker System
*E Models with Monitor System *F Models with 4-speaker System
*1

Map Light Assembly

- Amplifier Microphone Assembly

 *2 Front No. 2 Speaker Assembly LH
*3 Front No. 1 Speaker Assembly LH *4 Rear Speaker Assembly LH
*5 Rear Television Camera Assembly *6 Rear Speaker Assembly RH
*7 Front No. 1 Speaker Assembly RH *8 Amplifier Antenna Assembly (Antenna with Holder Assembly)
*9 Pole Antenna (Roof Antenna Pole Sub-assembly) *10 Front No. 2 Speaker Assembly RH

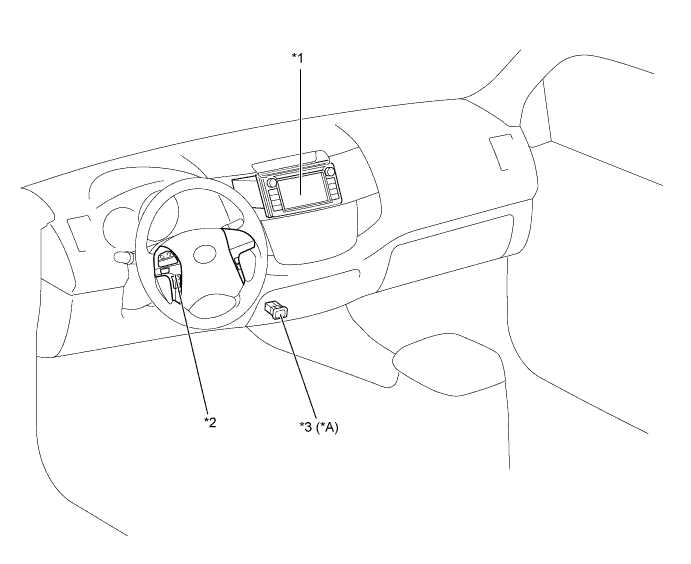

A01EZNVE02
Text in Illustration
*A Models with No. 1 Stereo Jack Adapter Assembly - -
*1 Audio Head Unit *2 Steering Pad Switch Assembly
*3 No. 1 Stereo Jack Adapter Assembly - -
