ENGINE UNIT


  1. CONSTRUCTION


    1. A steel-laminate type cylinder head gasket is used.

    2. A shim has been added around the cylinder bore to increase the sealing surface, thus improving sealing performance and durability.

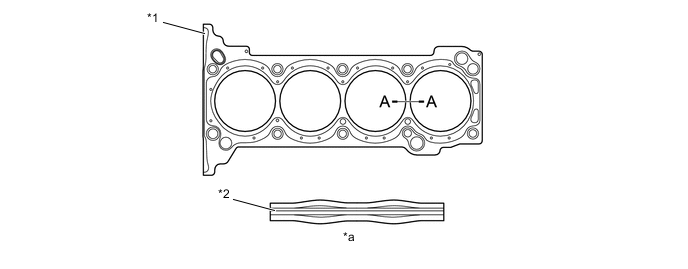

      A01KWZWC01
      *1 Cylinder Head Gasket *2 Shim
      *a A - A Cross Section - -
