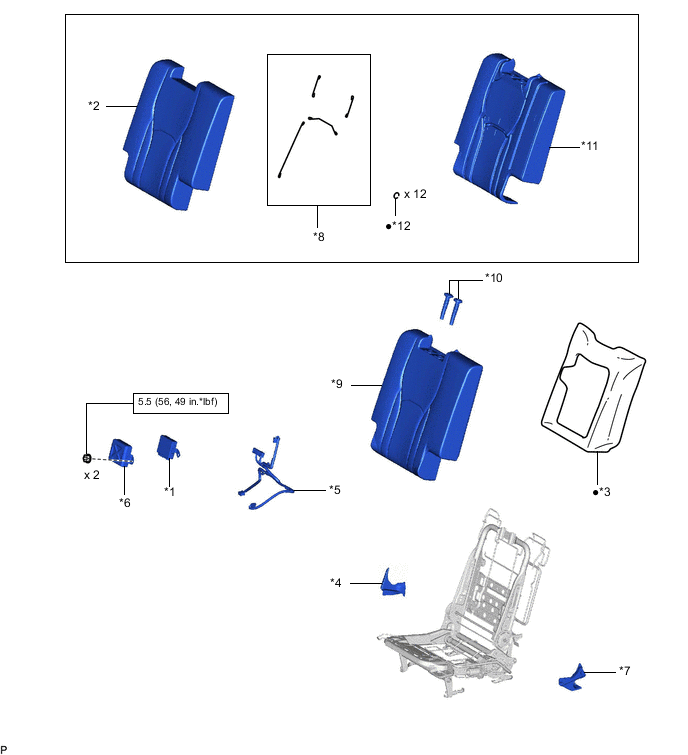

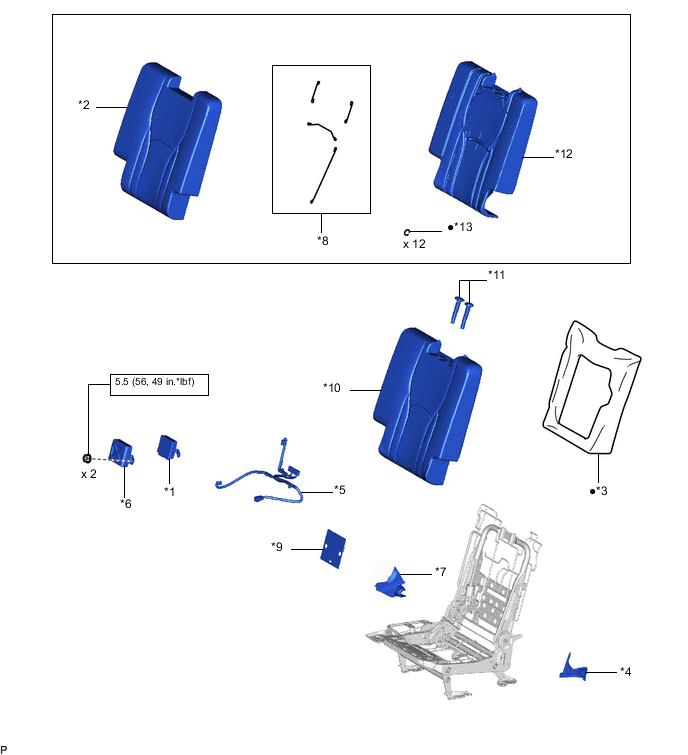

REAR NO. 2 SEAT INNER BELT ASSEMBLY INSPECTION

PROCEDURE


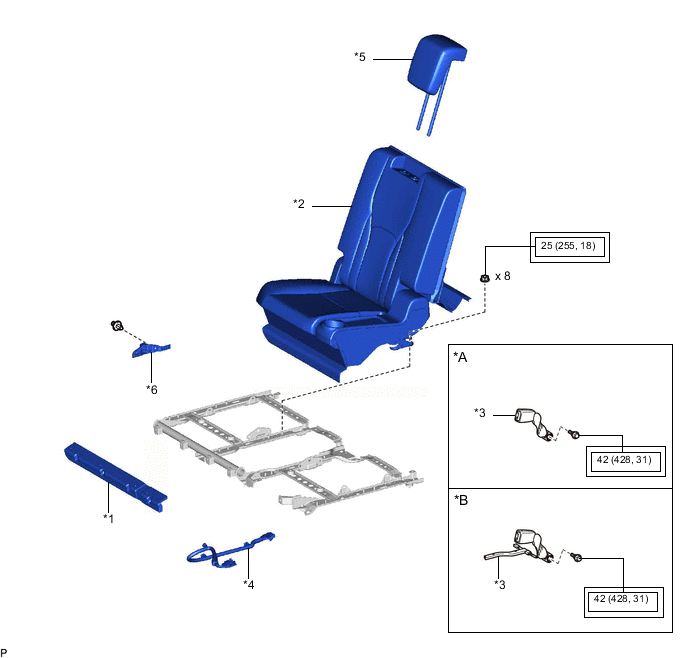

  1. INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY RH


    1. B005NIJC01
      *a

      Component without harness connected

      (Rear No. 2 Seat Inner Belt Assembly RH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Rear No. 2 RH seat belt unfastened Below 1 Ω
      Rear No. 2 RH seat belt fastened 10 kΩ or higher

      If the result is not as specified, replace the rear No. 2 seat inner belt assembly RH.

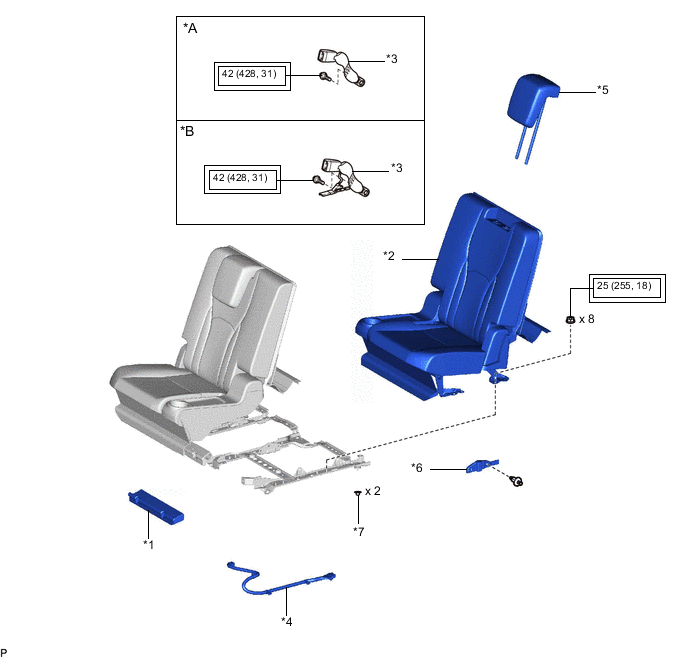

  2. INSPECT REAR NO. 2 SEAT INNER BELT ASSEMBLY LH


    1. B005NIJC01
      *a

      Component without harness connected

      (Rear No. 2 Seat Inner Belt Assembly LH)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 Rear No. 2 LH seat belt unfastened Below 1 Ω
      Rear No. 2 LH seat belt fastened 10 kΩ or higher

      If the result is not as specified, replace the rear No. 2 seat inner belt assembly LH.
