ENTRY AND START SYSTEM

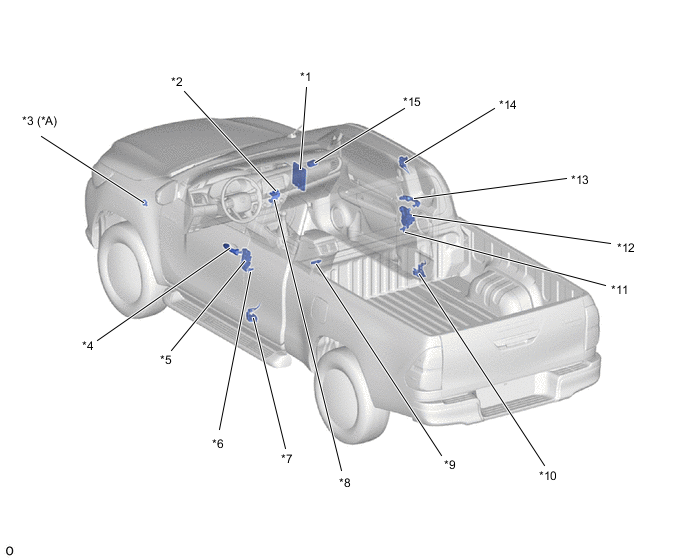

Figure 1. Smart Cab Models
| *A | Models with Wireless Door Lock Buzzer | - | - |
| *1 | ECM | *2 | No. 1 Indoor Electrical Key Antenna Assembly (Front Floor) |
| *3 | Wireless Door Lock Buzzer | *4 | Front Door Outside Handle Assembly LH |
| *5 | Front Door Lock Assembly LH | *6 | Front Door Courtesy Light Switch Assembly (LH) |
| *7 | Lower Access Panel Lock Assembly LH | *8 | Upper Access Panel Lock Assembly LH |
| *9 | No. 2 Indoor Electrical Key Antenna Assembly (Rear Floor) | *10 | Lower Access Panel Lock Assembly RH |
| *11 | Front Door Courtesy Light Switch Assembly (RH) | *12 | Front Door Lock Assembly RH |
| *13 | Front Door Outside Handle Assembly RH | *14 | Upper Access Panel Lock Assembly RH |
| *15 | Door Control Receiver Assembly | - | - |

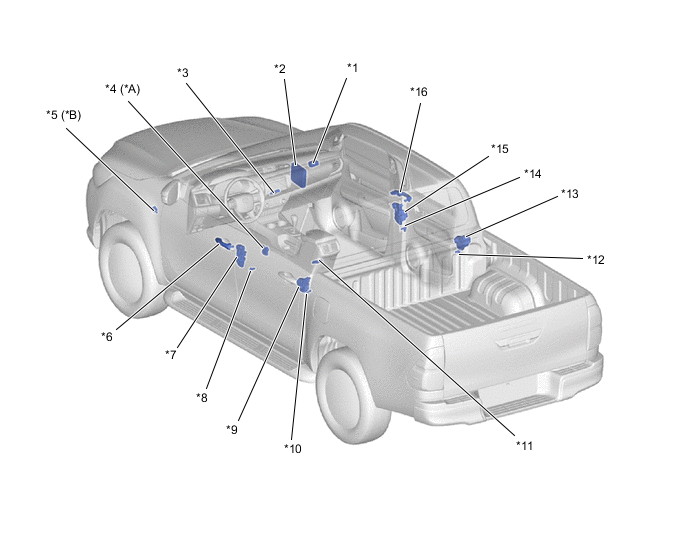

Figure 2. Double Cab Models
| *A | Models with Automatic Transmission | *B | Models with Wireless Door Lock Buzzer |
| *1 | Door Control Receiver Assembly | *2 | ECM |
| *3 | No. 1 Indoor Electrical Key Antenna Assembly (Front Floor) | *4 | Park/Neutral Position Switch Assembly |
| *5 | Wireless Door Lock Buzzer | *6 | Front Door Outside Handle Assembly LH |
| *7 | Front Door Lock Assembly LH | *8 | Front Door Courtesy Light Switch Assembly (LH) |
| *9 | Rear Door Lock Assembly LH | *10 | Rear Door Courtesy Light Switch Assembly (LH) |
| *11 | No. 2 Indoor Electrical Key Antenna Assembly (Rear Floor) | *12 | Rear Door Courtesy Light Switch Assembly (RH) |
| *13 | Rear Door Lock Assembly RH | *14 | Front Door Courtesy Light Switch Assembly (RH) |
| *15 | Front Door Lock Assembly RH | *16 | Front Door Outside Handle Assembly RH |

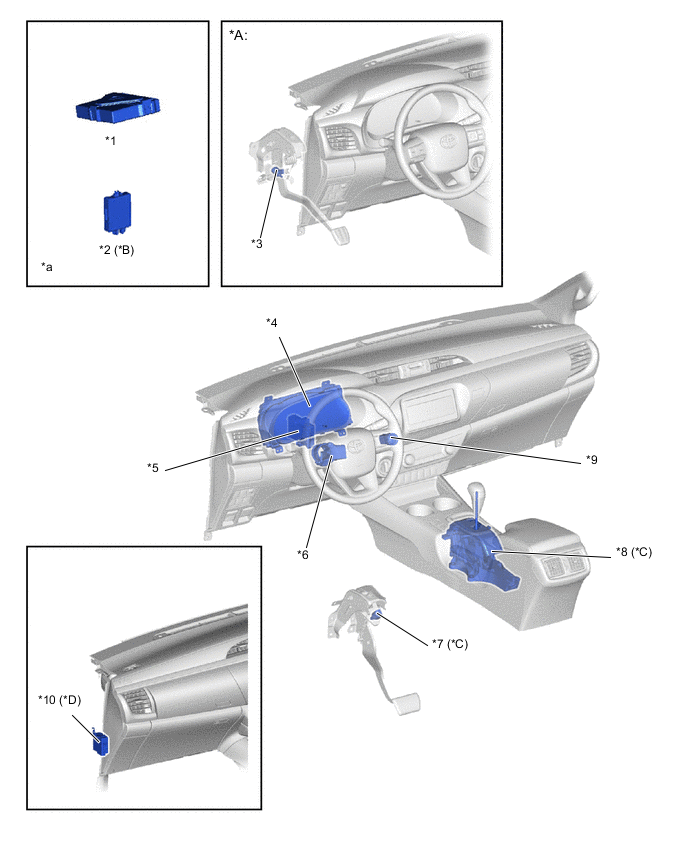

| *A | Models with Manual Transmission | *B | Models with ID Code Box |
| *C | Models with Automatic Transmission | *D | Models with Double Locking Function |
| *1 | Certification ECU (Smart Key ECU Assembly) | *2 | ID Code Box (Immobiliser Code ECU) |
| *3 | Clutch Start Switch Assembly | *4 | Combination Meter Assembly |
| *5 | Body ECU | *6 | Steering Lock Actuator Assembly |
| *7 | Stop Light Switch Assembly | *8 | Transmission Floor Shift Assembly |
| *9 | Engine Switch (Push Start Switch) | *10 | Double Lock Control Relay Assembly |
| *a | Refer to the Service Bulletin for the installation of the part. | - | - |
