HEADLIGHT CLEANER ACTUATOR COVER REMOVAL

PROCEDURE

  1. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH

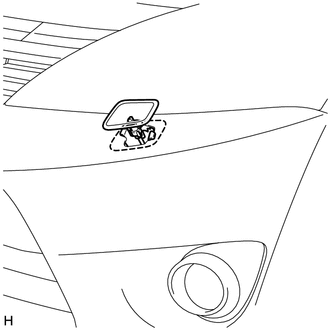

    1. E269667

      Extend the type 1 headlight washer nozzle sub-assembly LH by hand.

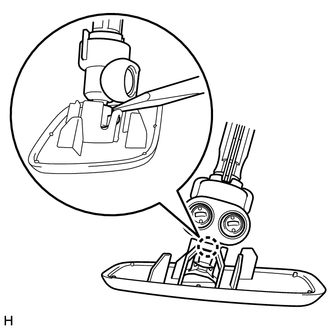

    2. E269668

      Using a screwdriver, detach the claw and remove the type 1 headlight washer nozzle sub-assembly LH.

      Note:

      Be careful not to damage the headlight washer actuator sub-assembly or type 1 headlight washer nozzle sub-assembly LH.

  2. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.
