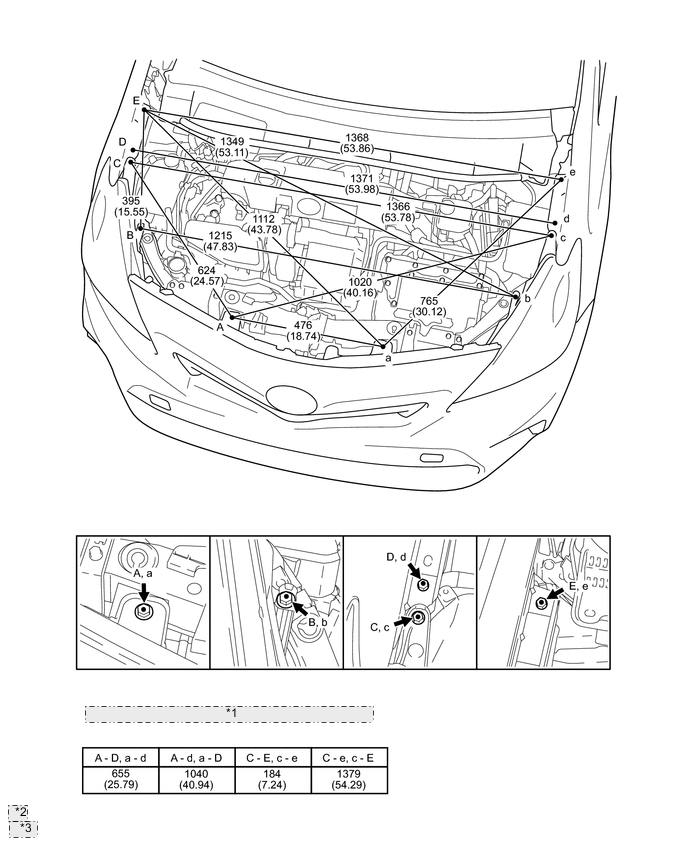

ENGINE COMPARTMENT REFERENCE VALUES THREE-DIMENSIONAL DISTANCE

Tech Tips


  • Measure points with the radiator support opening cover removed.

  • In cases in which only one dimension is given, left and right are symmetrical.


  • For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (seen from rear).

Measuring Point Name
Symbol Name

Hole Diameter

mm (in.)
A, a Radiator Grille Installation Bolt M6 (0.24)
B, b Headlight Installation Screw -
C, c Headlight Installation Screw -
D, d Front Fender Installation Bolt M6 (0.24)
E, e Front Fender Installation Bolt M6 (0.24)
A0050FAE01
*1 Distance between points other than those above
*2 mm
*3 (in.)
