WHEN REMOVING,INSTALLING,REPAIRING OR REPLACING PARTS COMPONENTS

Tech Tips

The shapes and names of parts and the general layout may differ depending on the vehicle grade and options.


  1. FRONT BUMPER

    B00835JC01
    *1 COOL AIR INTAKE DUCT SEAL *2 FRONT BUMPER ASSEMBLY
    B008395 N*m (kgf*cm, ft.*lbf): Specified torque - -
    B00838NC01
    *A for LED Type Turn Signal Light *B for Bulb Type Turn Signal Light
    *1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER REINFORCEMENT
    *3 FRONT BUMPER SIDE RETAINER LH *4 FRONT BUMPER SIDE RETAINER RH
    *5 FRONT FENDER LINER RETAINER *6 PIN HOLD CLIP
    *7 HEADLIGHT ASSEMBLY LH *8 HEADLIGHT ASSEMBLY RH
    B008395 N*m (kgf*cm, ft.*lbf): Specified torque - -

  2. REAR BUMPER

    B00834ZC01
    *A for Single Type *B for Dual Type
    *1 REAR BUMPER ASSEMBLY *2 REAR COMBINATION LIGHT COVER LH
    *3 REAR COMBINATION LIGHT COVER RH - -
    B00835AC01
    *A for Type A *B for Type B
    *C for Single Type *D for Dual Type
    *1 REAR BUMPER ENERGY ABSORBER *2 REAR BUMPER REINFORCEMENT
    *3 REAR BUMPER SIDE RETAINER LH *4 REAR BUMPER SIDE RETAINER RH
    *5 REAR BUMPER SIDE SEAL LH *6 REAR BUMPER SIDE SEAL RH
    *7 REAR BUMPER UPPER RETAINER LH *8 REAR BUMPER UPPER RETAINER RH
    *9 REAR COMBINATION LIGHT ASSEMBLY LH *10 REAR COMBINATION LIGHT ASSEMBLY RH
    *11 GROMMET - -
    B008395 N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

  3. INSTRUMENT PANEL

    B00834QC01
    *1 STEERING WHEEL ASSEMBLY - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

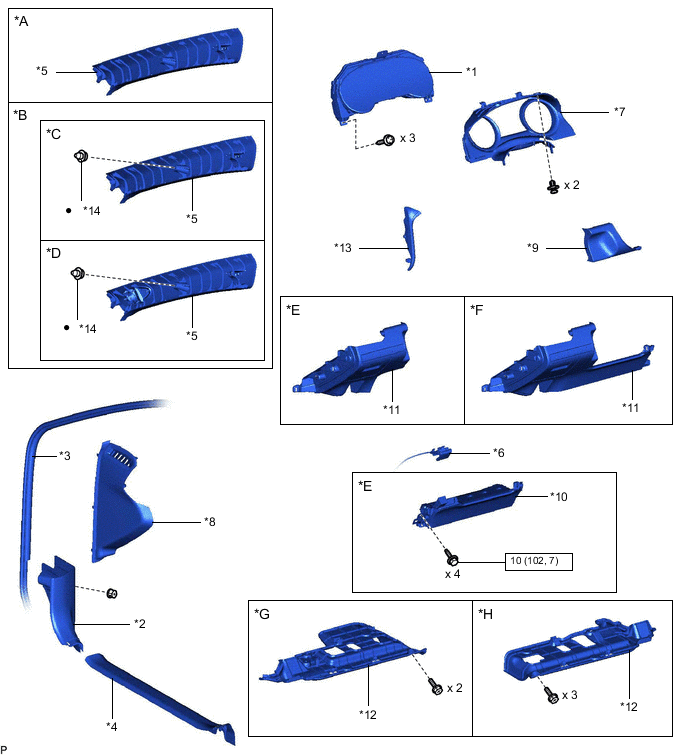

    B0083AQC01
    *A w/o Curtain Shield Airbag *B w/ Curtain Shield Airbag
    *C w/o Front No. 3 Speaker *D w/ Front No. 3 Speaker
    *E w/ Driver Side Knee Airbag *F w/o Driver Side Knee Airbag
    *G for LHD *H for RHD
    *1 COMBINATION METER ASSEMBLY *2 COWL SIDE TRIM SUB-ASSEMBLY LH
    *3 FRONT DOOR OPENING TRIM WEATHERSTRIP LH *4 FRONT DOOR SCUFF PLATE LH
    *5 FRONT PILLAR GARNISH LH *6 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    *7 INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY *8 INSTRUMENT SIDE PANEL LH
    *9 LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY *10 LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    *11 NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY *12 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    *13 NO. 2 METER HOOD CLUSTER *14 CLIP
    B008395 N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part

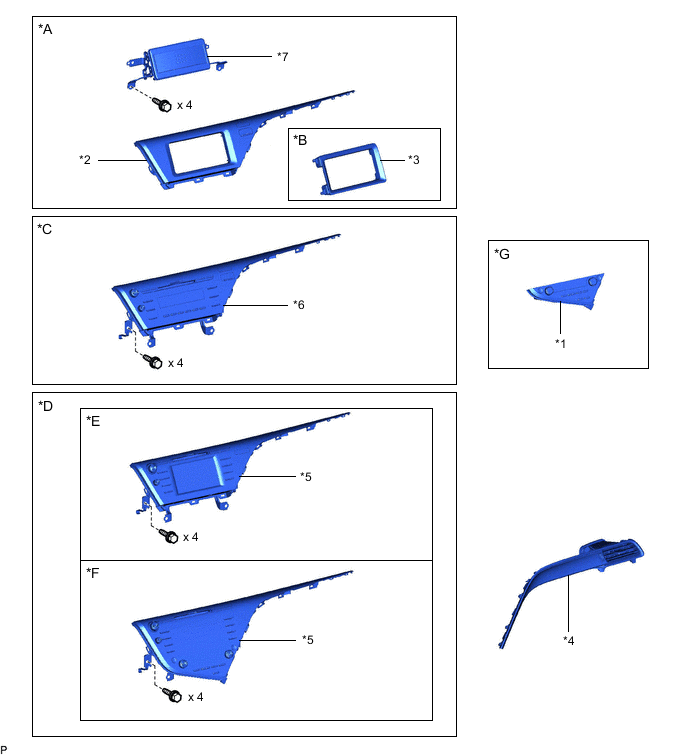

    B00839KC01
    *A w/o Radio Receiver *B for RHD
    *C for 7 Inch Display *D for Radio and Display Type
    *E for 8 Inch Display *F for 8 Inch Display
    *G except 8 Inch Display - -
    *1 AIR CONDITIONING CONTROL ASSEMBLY *2 CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    *3 INSTRUMENT CLUSTER FINISH PANEL COVER *4 NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    *5 RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET *6 RADIO RECEIVER ASSEMBLY WITH BRACKET
    *7 RADIO TUNER OPENING COVER WITH BRACKET - -

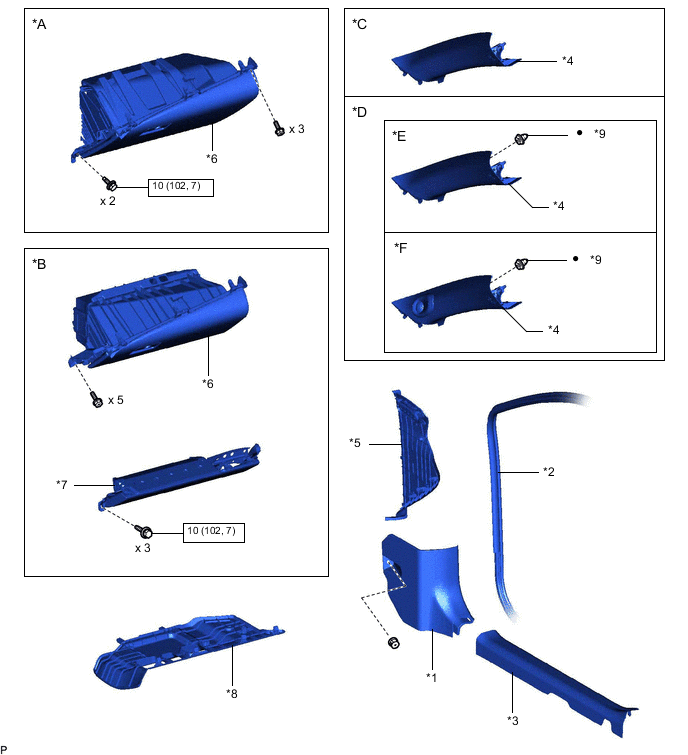

    B008379C01
    *A w/o Passenger Side Knee Airbag *B w/ Passenger Side Knee Airbag
    *C w/o Curtain Shield Airbag *D w/ Curtain Shield Airbag
    *E w/o Front No. 3 Speaker *F w/ Front No. 3 Speaker
    *1 COWL SIDE TRIM SUB-ASSEMBLY RH *2 FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    *3 FRONT DOOR SCUFF PLATE RH *4 FRONT PILLAR GARNISH RH
    *5 INSTRUMENT SIDE PANEL RH *6 LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    *7 LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY *8 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    *9 CLIP - -
    B008395 N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
    B00836VC01
    *A for LH Side *B for RH Side
    *1 FRONT NO. 2 SPEAKER ASSEMBLY *2 NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
    *3 NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY *4 NO. 1 INSTRUMENT PANEL SPEAKER PANEL
    *5 NO. 2 INSTRUMENT PANEL SPEAKER PANEL - -
    B00838FC01
    *1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY - -
    B008395 N*m (kgf*cm, ft.*lbf): Specified torque - -

  4. FRONT CONSOLE BOX

    B00837ZC01
    *1 CONSOLE BOX ASSEMBLY *2 CONSOLE BOX CARPET
    *3 CONSOLE REAR END PANEL SUB-ASSEMBLY *4 INSTRUMENT PANEL FINISH PLATE GARNISH
    *5 LOWER CENTER INSTRUMENT PANEL FINISH PANEL *6 NO. 1 METER HOOD CLUSTER
    *7 NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY *8 REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
    *9 SHIFT LEVER KNOB SUB-ASSEMBLY *10 SHIFT LOCK RELEASE BUTTON COVER

  5. INTERIOR TRIM

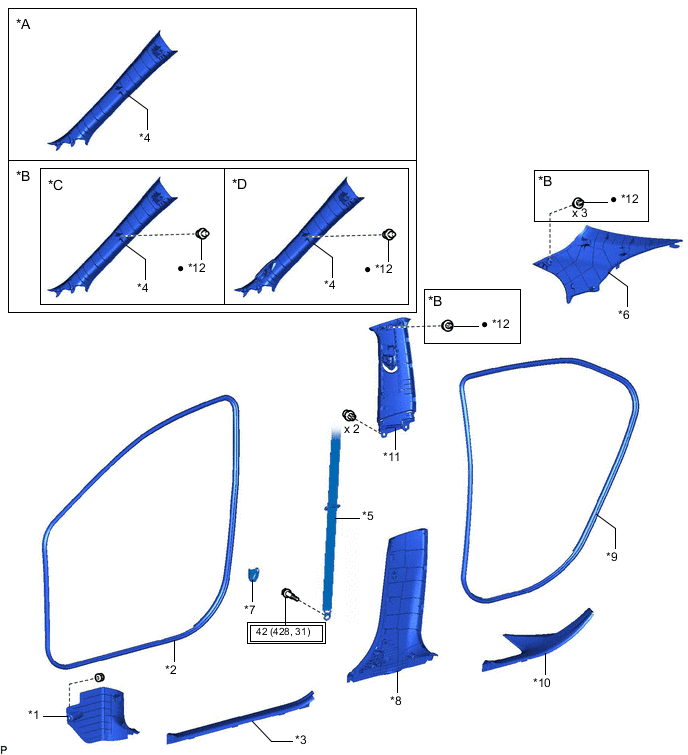

    B00839UC01
    *A w/o Curtain Shield Airbag *B w/ Curtain Shield Airbag
    *C w/o Front No. 3 Speaker *D w/ Front No. 3 Speaker
    *1 COWL SIDE TRIM SUB-ASSEMBLY LH *2 FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    *3 FRONT DOOR SCUFF PLATE LH *4 FRONT PILLAR GARNISH LH
    *5 FRONT SEAT OUTER BELT ASSEMBLY LH *6 INNER ROOF SIDE GARNISH LH
    *7 LAP BELT OUTER ANCHOR COVER *8 LOWER CENTER PILLAR GARNISH LH
    *9 REAR DOOR OPENING TRIM WEATHERSTRIP LH *10 REAR DOOR SCUFF PLATE LH
    *11 UPPER CENTER PILLAR GARNISH LH *12 CLIP
    B008395 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part

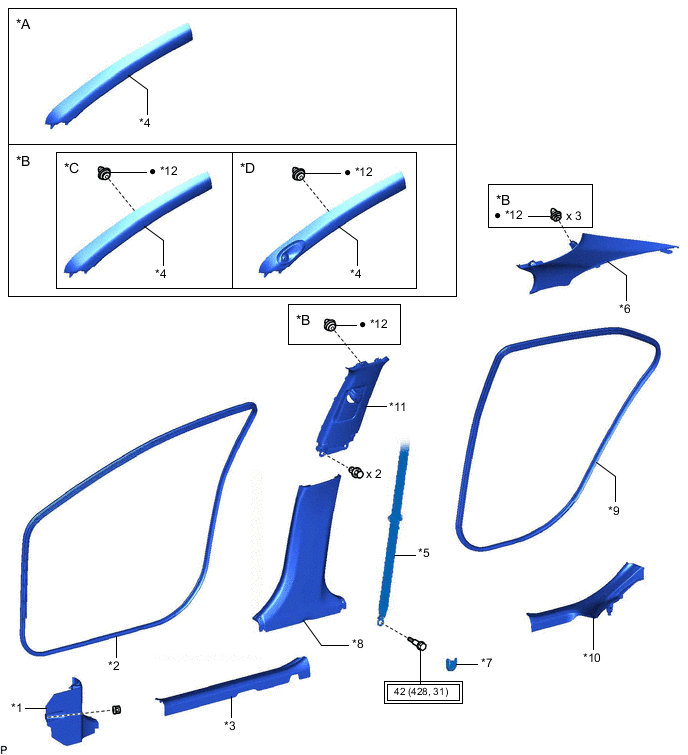

    B00838UC01
    *A w/o Curtain Shield Airbag *B w/ Curtain Shield Airbag
    *C w/o Front No. 3 Speaker *D w/ Front No. 3 Speaker
    *1 COWL SIDE TRIM SUB-ASSEMBLY RH *2 FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    *3 FRONT DOOR SCUFF PLATE RH *4 FRONT PILLAR GARNISH RH
    *5 FRONT SEAT OUTER BELT ASSEMBLY RH *6 INNER ROOF SIDE GARNISH RH
    *7 LAP BELT OUTER ANCHOR COVER *8 LOWER CENTER PILLAR GARNISH RH
    *9 REAR DOOR OPENING TRIM WEATHERSTRIP RH *10 REAR DOOR SCUFF PLATE RH
    *11 UPPER CENTER PILLAR GARNISH RH *12 CLIP
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part
    B0083AYC01
    *A for Normal Roof *B except Normal Roof
    *C for Bulb Type *D for LED Type
    *E w/ Rain Sensor *F w/ Cover
    *G w/ Pre-collision System - -
    *1 INNER REAR VIEW MIRROR STAY HOLDER COVER *2 NO. 1 FORWARD RECOGNITION COVER
    *3 NO. 2 FORWARD RECOGNITION COVER *4 RAIN SENSOR COVER
    *5 ROOF CONSOLE BOX ASSEMBLY *6 ROOM LIGHT ASSEMBLY
    *7 SPOT LIGHT ASSEMBLY *8 ROOM LIGHT HOUSING
    *9 ROOM LIGHT LENS - -
    B00839NC02
    *A for Moon Roof - -
    *1 ASSIST GRIP ASSEMBLY *2 REAR ASSIST GRIP ASSEMBLY LH
    *3 REAR ASSIST GRIP ASSEMBLY RH *4 SUN ROOF OPENING TRIM MOULDING
    *5 VISOR ASSEMBLY LH *6 VISOR ASSEMBLY RH
    *7 VISOR BRACKET COVER LH *8 VISOR BRACKET COVER RH
    *9 VISOR HOLDER LH *10 VISOR HOLDER RH
    *11 ASSIST GRIP COVER LH *12 ASSIST GRIP COVER RH

  6. FRONT SEAT OUTER BELT ASSEMBLY

    B00836ZC03
    *A w/ Curtain Shield Airbag - -
    *1 FRONT DOOR OPENING TRIM WEATHERSTRIP *2 FRONT DOOR SCUFF PLATE
    *3 FRONT SEAT OUTER BELT ASSEMBLY *4 FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY
    *5 LAP BELT OUTER ANCHOR COVER *6 LOWER CENTER PILLAR GARNISH
    *7 REAR DOOR OPENING TRIM WEATHERSTRIP *8 REAR DOOR SCUFF PLATE
    *9 UPPER CENTER PILLAR GARNISH *10 CLIP
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) B008395 N*m (kgf*cm, ft.*lbf): Specified torque
    ● Non-reusable part - -

  7. REAR SEAT INNER BELT ASSEMBLY (for LH Side)

    B00837MC01
    *A w/o Seat Belt Warning System *B w/ Seat Belt Warning System
    *1 LUGGAGE COMPARTMENT TRIM INNER PAD *2 REAR CENTER SEAT OUTER BELT ASSEMBLY
    *3 REAR SEAT CUSHION ASSEMBLY *4 REAR SEAT CUSHION LOCK HOOK
    *5 REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH *6 REAR SEATBACK ASSEMBLY LH
    *7 REAR SEATBACK ASSEMBLY RH - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part

  8. REAR SEAT INNER BELT ASSEMBLY (for RH Side)

    B00838LC01
    *A w/o Seat Belt Warning System *B w/ Seat Belt Warning System
    *1 LUGGAGE COMPARTMENT TRIM INNER PAD *2 REAR CENTER SEAT OUTER BELT ASSEMBLY
    *3 REAR SEAT CUSHION ASSEMBLY *4 REAR SEAT CUSHION LOCK HOOK
    *5 REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH *6 REAR SEATBACK ASSEMBLY LH
    *7 REAR SEATBACK ASSEMBLY RH - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part

  9. REAR SEAT OUTER BELT ASSEMBLY

    B0083ATC01
    *A w/o Pretensioner *B w/ Pretensioner
    *1 REAR SEAT BELT RETRACTOR COVER *2 REAR SEAT OUTER BELT ASSEMBLY LH
    *3 REAR SEAT OUTER BELT ASSEMBLY RH - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) B008395 N*m (kgf*cm, ft.*lbf): Specified torque

  10. REAR CENTER SEAT OUTER BELT ASSEMBLY

    B008350C02
    *A w/o Rear Sunshade *B w/ Rear Sunshade
    *C w/ Curtain Shield Airbag - -
    *1 INNER ROOF SIDE GARNISH LH *2 INNER ROOF SIDE GARNISH RH
    *3 PACKAGE TRAY TRIM PANEL ASSEMBLY *4 REAR CENTER SEAT OUTER BELT ASSEMBLY
    *5 REAR SEAT OUTER BELT ASSEMBLY LH *6 REAR SEAT OUTER BELT ASSEMBLY RH
    *7 REAR SEAT SHOULDER BELT HOLE COVER *8 SEAT BELT RETRACTOR COVER
    *9 CLIP - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) B008395 N*m (kgf*cm, ft.*lbf): Specified torque
    ● Non-reusable part - -

  11. FRONT SEAT ASSEMBLY (for Manual Seat)

    B008368C01
    *1 FRONT INNER SEAT TRACK BRACKET COVER *2 FRONT OUTER SEAT TRACK BRACKET COVER
    *3 FRONT SEAT ASSEMBLY *4 FRONT SEAT HEADREST ASSEMBLY
    *5 REAR INNER SEAT TRACK BRACKET COVER *6 REAR OUTER SEAT TRACK BRACKET COVER
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

  12. FRONT SEAT ASSEMBLY (for Power Seat)

    B0083B1C01
    *1 FRONT INNER SEAT TRACK BRACKET COVER *2 FRONT OUTER SEAT TRACK BRACKET COVER
    *3 FRONT SEAT ASSEMBLY *4 FRONT SEAT HEADREST ASSEMBLY
    *5 REAR INNER SEAT TRACK BRACKET COVER *6 REAR OUTER SEAT TRACK BRACKET COVER
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

  13. REAR SEAT ASSEMBLY (for Fixed Seat Type)

    B00835HC01
    *1 REAR CENTER SEAT OUTER BELT ASSEMBLY *2 REAR SEAT CENTER SHOULDER BELT GUIDE
    *3 REAR SEAT CUSHION ASSEMBLY *4 REAR SEAT CUSHION LOCK HOOK
    *5 REAR SEAT SHOULDER BELT GUIDE LH *6 REAR SEAT SHOULDER BELT GUIDE RH
    *7 REAR SEATBACK ASSEMBLY - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part

  14. REAR SEAT ASSEMBLY (for Fold Down Seat Type)

    B0083B0C02
    *A w/o Removable Headrest - -
    *1 REAR CENTER SEAT OUTER BELT ASSEMBLY *2 REAR DOOR OPENING TRIM WEATHERSTRIP LH
    *3 REAR DOOR OPENING TRIM WEATHERSTRIP RH *4 REAR SEAT CUSHION ASSEMBLY
    *5 REAR SEAT CUSHION LOCK HOOK *6 REAR SEATBACK ASSEMBLY LH
    *7 REAR SEATBACK ASSEMBLY RH *8 REAR SIDE SEATBACK ASSEMBLY LH
    *9 REAR SIDE SEATBACK ASSEMBLY RH - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part

  15. REAR SEAT ASSEMBLY (for Reclining Seat Type)

    B00838RC01
    *1 CENTER SEATBACK ASSEMBLY *2 REAR CENTER SEAT HEADREST ASSEMBLY
    *3 REAR CENTER SEAT OUTER BELT ASSEMBLY *4 REAR DOOR OPENING TRIM WEATHERSTRIP LH
    *5 REAR DOOR OPENING TRIM WEATHERSTRIP RH *6 REAR SEAT CUSHION ASSEMBLY
    *7 REAR SEAT CUSHION LOCK HOOK *8 REAR SEAT HEADREST ASSEMBLY
    *9 REAR SEATBACK ASSEMBLY LH *10 REAR SEATBACK ASSEMBLY RH
    *11 REAR SEATBACK COVER *12 REAR SIDE SEATBACK ASSEMBLY LH
    *13 REAR SIDE SEATBACK ASSEMBLY RH - -
    B008394 Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) ● Non-reusable part
