REAR DOOR SUNSHADE SYSTEM PARTS LOCATION

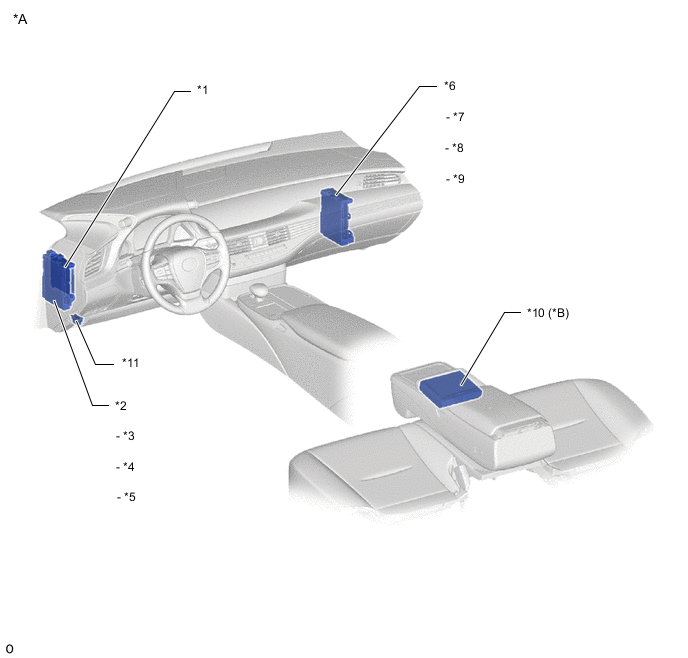

ILLUSTRATION
| *A | for LHD | *B | w/ Rear Multi Operation Panel System |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *3 | DOOR R/L 1 FUSE | *4 | IG1 D NO.1 FUSE |
| *5 | MPX-B D NO.1 FUSE | *6 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY |
| *7 | DOOR R/R 1 FUSE | *8 | IG1 P NO.2 FUSE |
| *9 | MPX-B P NO.1 FUSE | *10 | REAR POWER SEAT SWITCH |
| *11 | DLC3 | - | - |

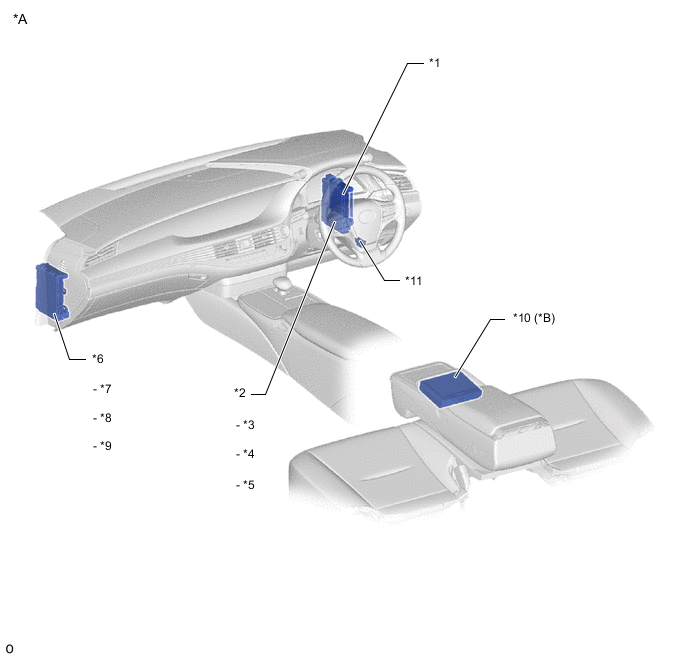

ILLUSTRATION
| *A | for RHD | *B | w/ Rear Multi Operation Panel System |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *3 | DOOR R/R 1 FUSE | *4 | IG1 D NO.1 FUSE |
| *5 | MPX-B D NO.1 FUSE | *6 | PASSENGER SIDE JUNCTION BLOCK ASSEMBLY |
| *7 | DOOR R/L 1 FUSE | *8 | IG1 P NO.2 FUSE |
| *9 | MPX-B P NO.1 FUSE | *10 | REAR POWER SEAT SWITCH |
| *11 | DLC3 | - | - |

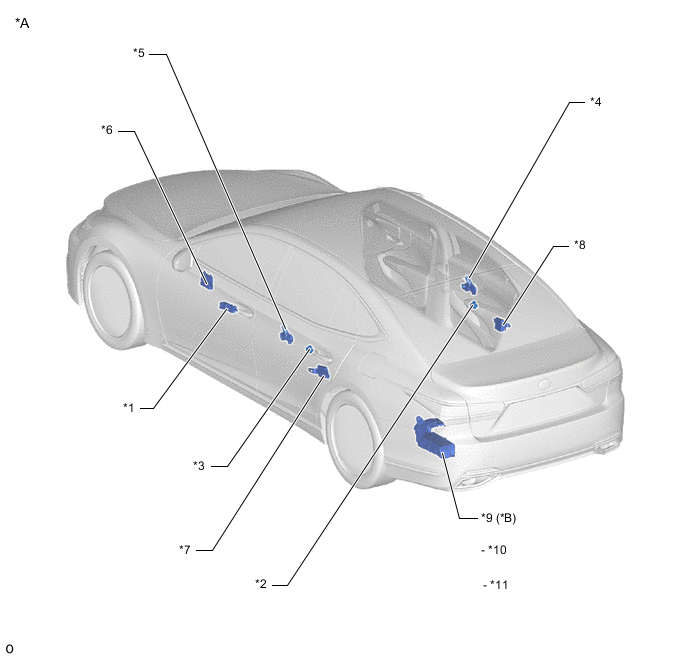

ILLUSTRATION
| *A | for LHD | *B | w/ Side Window Curtain |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH |
| *3 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH | *4 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *5 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *6 | FRONT MULTIPLEX NETWORK DOOR ECU LH |
| *7 | REAR MULTIPLEX NETWORK DOOR ECU LH | *8 | REAR MULTIPLEX NETWORK DOOR ECU RH |
| *9 | NO. 2 LUGGAGE ROOM RELAY BLOCK | *10 | SHADE RR FUSE |
| *11 | LUG-IG1 NO.1 FUSE | - | - |

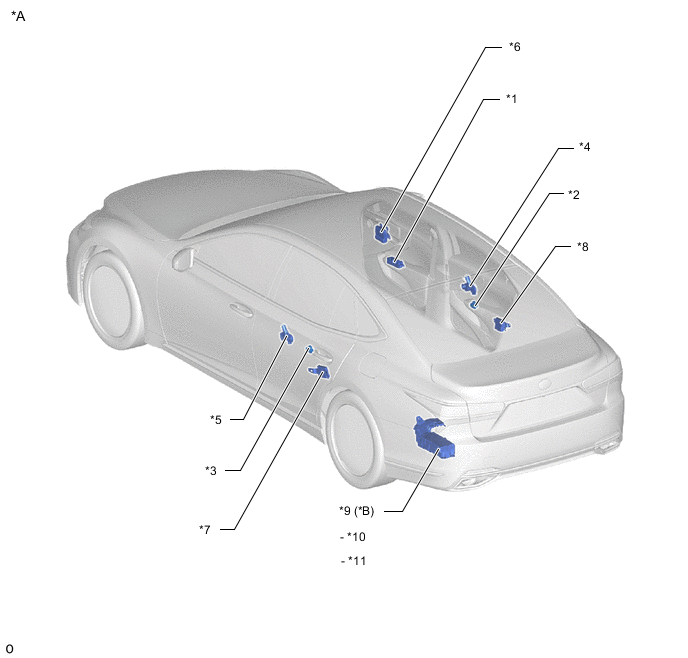

ILLUSTRATION
| *A | for RHD | *B | w/ Side Window Curtain |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY | *2 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH |
| *3 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH | *4 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *5 | REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH | *6 | FRONT MULTIPLEX NETWORK DOOR ECU RH |
| *7 | REAR MULTIPLEX NETWORK DOOR ECU LH | *8 | REAR MULTIPLEX NETWORK DOOR ECU RH |
| *9 | NO. 2 LUGGAGE ROOM RELAY BLOCK | *10 | SHADE RR FUSE |
| *11 | LUG-IG1 NO.1 FUSE | - | - |

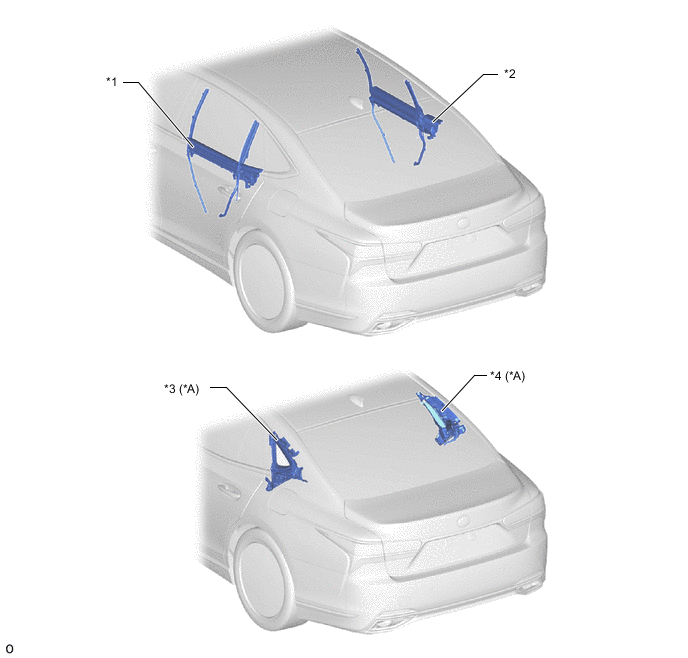

ILLUSTRATION
| *A | w/ Side Window Curtain | - | - |
| *1 | REAR CURTAIN SUB-ASSEMBLY LH | *2 | REAR CURTAIN SUB-ASSEMBLY RH |
| *3 | REAR SIDE WINDOW CURTAIN ASSEMBLY LH | *4 | REAR SIDE WINDOW CURTAIN ASSEMBLY RH |
