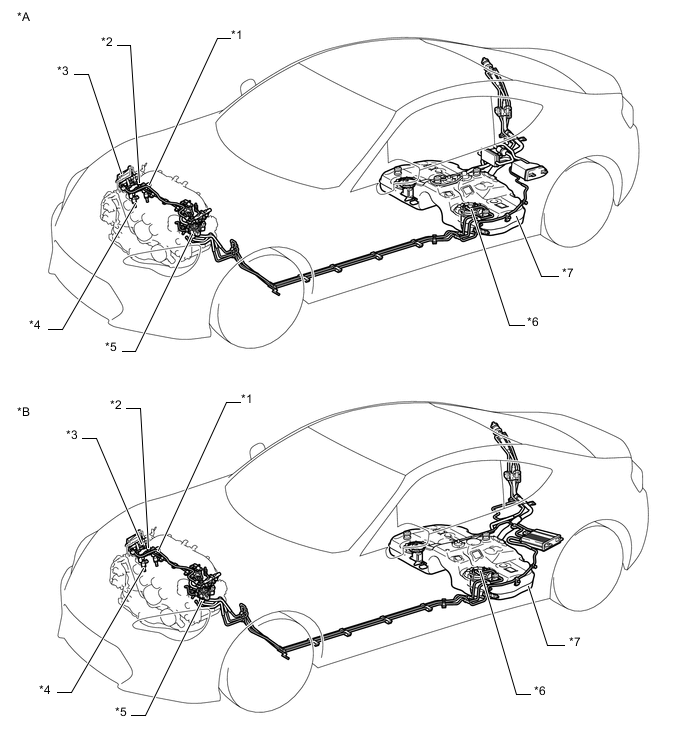

FUEL SYSTEM
| *A | Models for Korea | *B | Except Models for Korea |
| *1 | Fuel Delivery Pipe Sub-assembly (for Direct Injection) | *2 | Fuel Injector Assembly (for Port Injection) |
| *3 | Fuel Pipe Sub-assembly (for Port Injection) | *4 | Fuel Injector Assembly (for Direct Injection) |
| *5 | Fuel Pump Assembly (for High Pressure) | *6 | Fuel Suction Tube with Pump and Gage Assembly (for Low Pressure) |
| *7 | Fuel Tank Assembly | - | - |
