POWER WINDOW CONTROL SYSTEM Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch

DTC Code DTC Name
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch

DESCRIPTION

If the manual up and down function operates normally but the auto up and down function does not, then fail-safe mode may be functioning.

If power window initialization has not been performed, the auto up and down function will not operate.

Click here

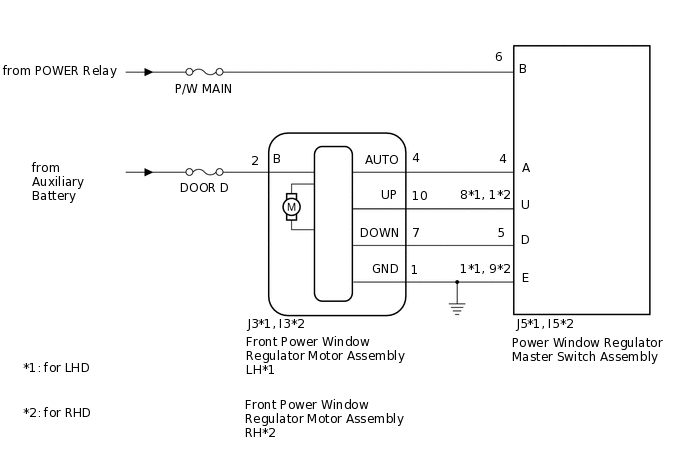

WIRING DIAGRAM

B341195E07

CAUTION / NOTICE / HINT

Note:

  • Inspect the fuses for circuits related to this system before performing the following procedure.

  • The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

    Click here

  • If the front power window regulator motor assembly LH (for LHD) or front power window regulator motor assembly RH (for RHD) has been replaced with a new one, initialize the power window control system.

    Click here

  • When the ECU determines that the front power window regulator motor assembly LH (for LHD) or front power window regulator motor assembly RH (for RHD) has a malfunction, DTC B2311 is stored.

  • After the catch protection function operates, the auto operation is not performed the first time auto up is performed. All auto up operations performed after the first operate normally.

Tip:

If the pulse sensor built into the front power window regulator motor assembly LH (for LHD) or front power window regulator motor assembly RH (for RHD) is malfunctioning, the power window control system enters fail-safe mode. The remote up and down function cannot be operated during fail-safe mode. However, the power window can be closed by holding the power window regulator master switch assembly at the auto up position, and opened manually by pushing down the power window regulator master switch assembly.

PROCEDURE

  1. READ VALUE USING GTS

    1. Read the Data List according to the display on the GTS.

      Click here

      Body Electrical > D-Door Motor > Data List

      Tester Display

      Measurement Item

      Range

      Normal Condition

      Diagnostic Note

      D Door P/W Auto SW

      Driver door power window auto switch signal

      ON or OFF

      ON: Driver door power window auto switch being operated

      OFF: Driver door power window auto switch not being operated

      -

      Body Electrical > D-Door Motor > Data List

      Tester Display

      D Door P/W Auto SW

    Result

    Proceed to

    On the GTS screen, ON or OFF is displayed accordingly

    On the GTS screen, ON or OFF is not displayed accordingly
    On the GTS screen, ON or OFF is not displayed accordingly

    INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLYClick here

    On the GTS screen, ON or OFF is displayed accordingly

  2. PERFORM INITIALIZATION

    1. Initialize the front power window regulator motor assembly LH (for LHD) or front power window regulator motor assembly RH (for RHD).

      Click here

    Result

    Proceed to

    NEXT
    NEXT

  3. CHECK POWER WINDOW CONTROL SYSTEM (AUTO UP/DOWN FUNCTION)

    1. Check that the driver door power window moves when the auto up and down function of the power window regulator master switch assembly is operated.

      Click here

      OK

      Driver door auto up and down function is normal.

    Result

    Proceed to

    OK

    NG (for LHD)

    NG (for RHD)
    OK

    END (PROBLEM DUE TO INITIALIZATION FAILURE)

    NG (for LHD)

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

    Click here

    NG (for RHD)

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

    Click here

  4. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

    1. Remove the power window regulator master switch assembly.

      Click here

    2. Inspect the power window regulator master switch assembly.

      Click here

    Result

    Proceed to

    OK (for LHD)

    OK (for RHD)

    NG
    OK (for RHD)

    CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)Click here

    NG

    REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

    Click here

    OK (for LHD)

  5. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)

    1. Disconnect the J5 power window regulator master switch assembly connector.

    2. Disconnect the J3 front power window regulator motor assembly LH connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      J5-4 (A) - J3-4 (AUTO)

      Always

      Below 1 Ω

      J5-4 (A) or J3-4 (AUTO) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)

    1. Disconnect the I5 power window regulator master switch assembly connector.

    2. Disconnect the I3 front power window regulator motor assembly RH connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      I5-4 (A) - I3-4 (AUTO)

      Always

      Below 1 Ω

      I5-4 (A) or I3-4 (AUTO) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
