MAIN BODY ECU(for LHD) REMOVAL

PROCEDURE

1. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

   for Hatchback, Wagon:Click hereClick here

   for Sedan:Click hereClick here

2. REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU

   1.

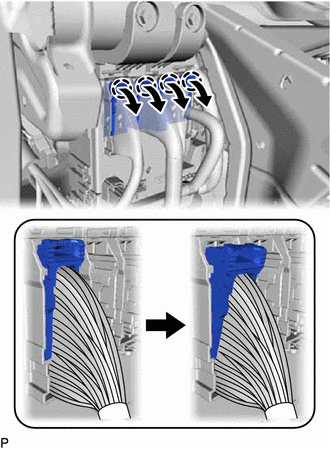

      Disengage each claw and pull down the 4 lock levers to disconnect the 4 connectors.

   2.

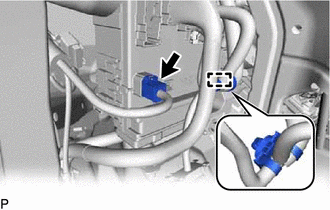

      Disconnect the connector.

   3. Disengage the clamp.

   4.

      *a	Protective Tape

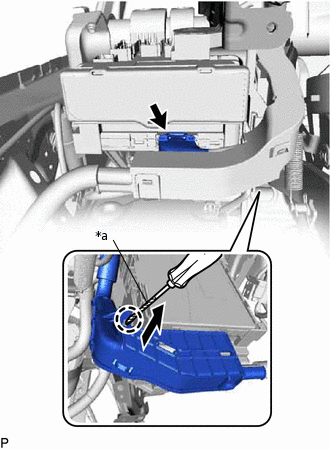

      Disconnect the connector.

   5. Using a screwdriver, disengage the claw and disconnect the wire harness.

      Tip:

      Tape the screwdriver tip before use.

   6.

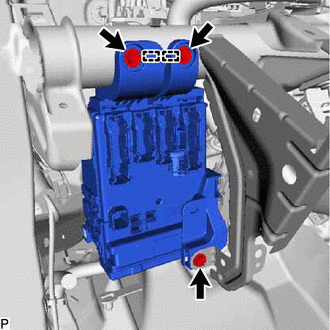

      Remove the 3 screws.

   7. Disengage the 2 guides and remove the instrument panel junction block assembly with main body ECU.

3. REMOVE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

   1.

      *1	Junction Block
      *2	Main Body ECU (Multiplex Network Body ECU)

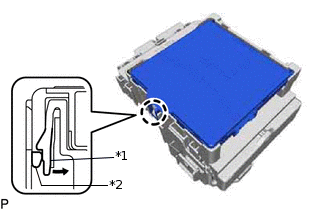

      Press the claw of the junction block as shown in the illustration to release the lock.

   2.

      *a	Protective Tape

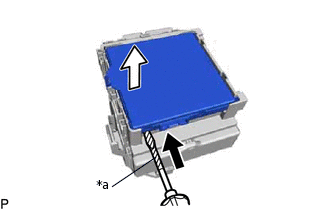

      With the junction block lock released, insert a screwdriver with its tip wrapped with protective tape horizontally between the main body ECU (multiplex network body ECU) and junction block.

      Note:

      • Use a screwdriver with a diameter between 5.0 mm (0.197 in.) and 6.3 mm (0.248 in.) and a length of approximately 90 mm (3.54 in.)

      • Do not insert the screwdriver under the connector socket of the main body ECU (multiplex network body ECU).

   3. Using the screwdriver, carefully raise the main body ECU (multiplex network body ECU) to the position where the connector becomes disconnected.

      Note:

      Do not twist the screwdriver to raise the main body ECU (multiplex network body ECU).

   4.

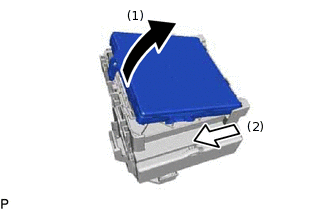

      Raise the main body ECU (multiplex network body ECU) as shown by the arrow (1), and then pull it out as shown by the arrow (2) in the illustration.

      Note:

      Do not touch the ECU connector.
