ENGINE UNIT


  1. CONSTRUCTION


    1. The cylinder head cover is made of plastic to reduce weight and noise.

    2. Acrylic rubber, which excels in heat resistance and reliability, is used for the cylinder head cover gasket. Also, the plug of the cylinder head cover gasket has been integrated in consideration of serviceability.

    3. A baffle plate made of plastic is provided inside the cylinder head cover to reduce the consumption of engine oil through blow-by gas. The baffle plate is welded onto the cylinder head cover, and cannot be removed.

    4. An oil delivery pipe is installed inside the cylinder head cover. This ensures lubrication to the sliding parts of the valve rocker arms, thus improving reliability.

      A01KXDBC01
      *1 Cylinder Head Cover Sub-assembly *2 Ventilation Baffle Plate
      *3 Oil Delivery Pipe *4 Cylinder Head Cover Gasket
      *5 PCV Connector (No. 1 Ventilation Connector) - -

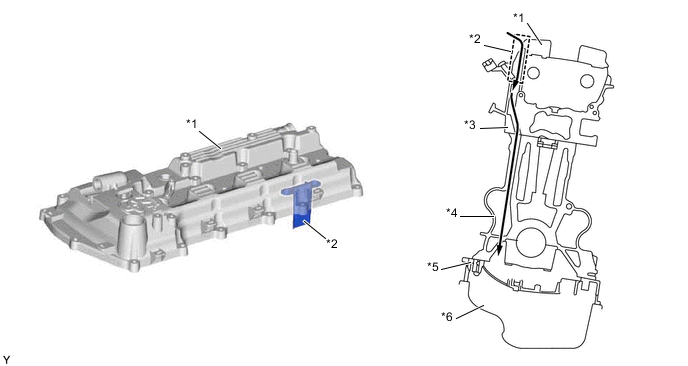

    5. In order to improve air ventilation efficiency, a PCV connector that creates a path to draw fresh air into the crank case is provided.

      A01KX3PC01
      *1 Cylinder Head Cover Sub-assembly *2 PCV Connector (No. 1 Ventilation Connector)
      *3 Cylinder Head Sub-assembly *4 Cylinder Block Sub-assembly
      *5 No. 1 Oil Pan (Oil Pan Sub-assembly) *6 No. 2 Oil Pan Sub-assembly
      B005L08 Air Flow - -
