POWER WINDOW REGULATOR MOTOR(for Front Door) INSTALLATION
CAUTION / NOTICE / HINT
Use the same procedure for the RH and LH sides.
The procedure listed below is for the LH side.
Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.
A bolt without a torque specification is shown in the standard bolt chart.
PROCEDURE
INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
Apply MP grease to the sliding and rotating areas of the power window regulator motor assembly LH.
-

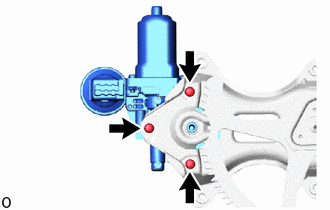

w/ Jam Protection Function:
Using a T25 "TORX" socket wrench, install the power window regulator motor assembly LH with the 3 screws.
5.4 N*m
55 kgf*cm
48 in.*lbf
Tip:A new window regulator motor uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.
-

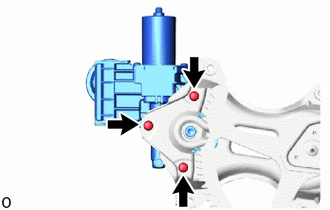

w/o Jam Protection Function:
Using a T25 "TORX" socket wrench, install the power window regulator motor assembly LH with the 3 screws.
5.4 N*m
55 kgf*cm
48 in.*lbf
Tip:A new window regulator motor uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.
INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH
INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH
INSTALL FRONT DOOR SERVICE HOLE COVER LH
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
INSTALL FRONT DOOR ASSIST GRIP COVER LH
INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT UPPER ARMREST BASE PANEL LH (for Driver Side)
INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT UPPER ARMREST BASE PANEL RH (for Front Passenger Side)
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Note:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
INITIALIZE POWER WINDOW CONTROL SYSTEM (w/ Jam Protection Function)
CHECK POWER WINDOW
INSTALL BATTERY SERVICE COVER
INSTALL DECK BOARD ASSEMBLY
