SUB RADIATOR INSTALLATION

PROCEDURE

  1. INSTALL RADIATOR ASSEMBLY (for Inverter Coolant)

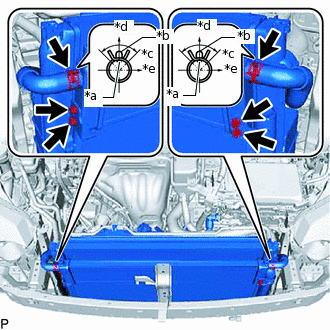

    1. C346017C01

      *a

      Matchmark

      *b

      Positioning Rib

      *c

      90°

      *d

      Top

      *e

      Front of the Vehicle

      Install the radiator assembly (for inverter coolant) to the cooler condenser assembly with the 4 bolts.

      9.0 N*m

      92 kgf*cm

      80 in.*lbf

    2. Referring to the illustration, connect the No. 5 inverter cooling hose, No. 2 inverter cooling hose assembly and clamp to the radiator assembly (for inverter coolant), and secure with the hose clamp.

      Note:

      • Until immediately before connecting the water hose, plug the water hose and pipe with vinyl tape, etc. to prevent foreign matter from entering the cooling path.

      • Insert the water hose up to the tank surface of the radiator assembly (for inverter coolant).

      • Align the matchmark on the water hose with the positioning rib on the radiator assembly (for inverter coolant).

    3. Install the 2 radiator support cutions.

  2. INSTALL NO. 2 FAN SHROUD

    Click here

  3. INSTALL NO. 1 RADIATOR SUPPORT

    Click here

  4. ADD COOLANT (for Inverter Coolant)

    Click here

  5. INSPECT FOR COOLANT LEAK (for Inverter Coolant)

    Click here

  6. INSTALL NO. 1 ENGINE UNDER COVER

    Click here

  7. INSTALL RADIATOR UPPER AIR GUIDE PLATE

    Click here

  8. INSTALL FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

    Click here

  9. INSTALL HEADLIGHT ASSEMBLY

    Click here

  10. INSTALL FRONT BUMPER ASSEMBLY

    Click here
