POWER DOOR LOCK CONTROL SYSTEM

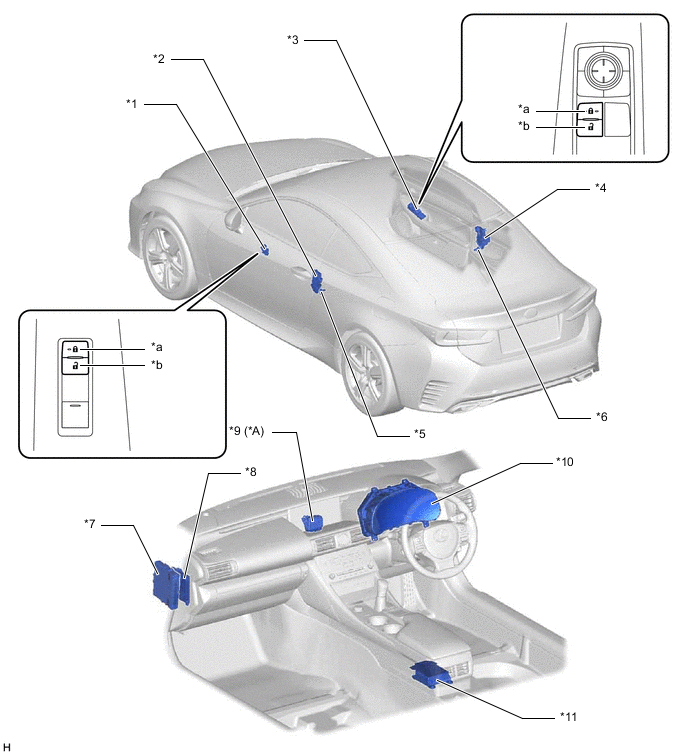

Figure 1. LHD Models
| *A | Models with Double Locking System | - | - |
| *1 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
|
*2 | POWER WINDOW REGULATOR SWITCH ASSEMBLY
|
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *6 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | COMBINATION METER ASSEMBLY |
| *9 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY | *10 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *11 | AIRBAG ECU ASSEMBLY | - | - |
| *a | Door Lock Switch | *b | Door Unlock Switch |

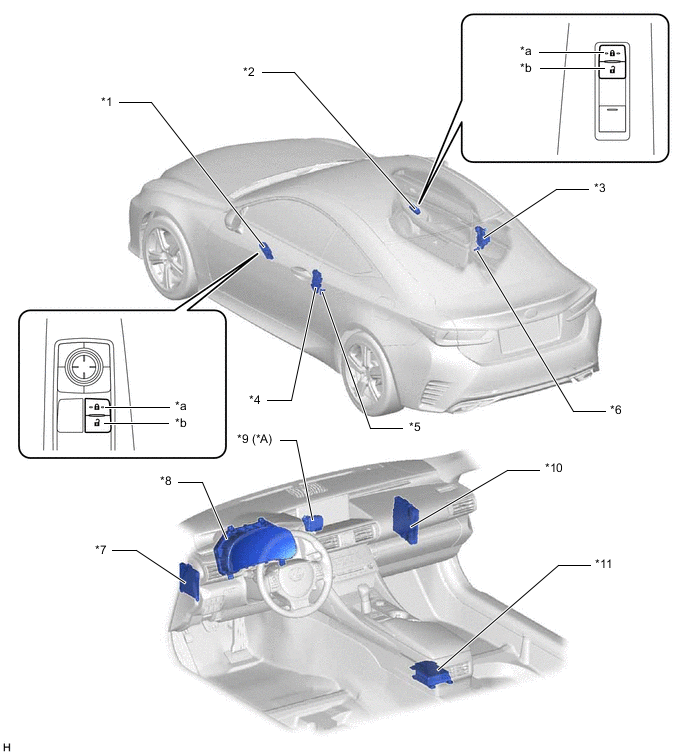

Figure 2. RHD Models
| *A | Models with Double Locking System | - | - |
| *1 | POWER WINDOW REGULATOR SWITCH ASSEMBLY
|
*2 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *3 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
|
*4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) | *6 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) |
| *7 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY | *10 | COMBINATION METER ASSEMBLY |
| *11 | AIRBAG ECU ASSEMBLY | - | - |
| *a | Door Lock Switch | *b | Door Unlock Switch |
