SFI SYSTEM(w/o EGR System), Diagnostic DTC:U0293

DTC Code DTC Name
U0293 Lost Communication with Hybrid Vehicle Control System

MONITOR DESCRIPTION

The ECM communicates with the hybrid vehicle control ECU. When the ECM does not receive data from the hybrid vehicle control ECU, the ECM illuminates the MIL and stores a DTC.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

U0293

Lost Communication with Hybrid Vehicle Control System

Communication with hybrid vehicle control ECU is interrupted (1 trip detection logic).

  • Wire harness

  • Hybrid vehicle control ECU

  • ECM

Comes on

DTC stored

MONITOR STRATEGY

Frequency of Operation

Continuous

CONFIRMATION DRIVING PATTERN

  1. Connect the GTS to the DLC3.

  2. Turn the power switch on (IG) and turn the GTS on.

  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

  4. Turn the power switch off and wait for at least 30 seconds.

  5. Turn the power switch on (IG) and turn the GTS on.

  6. Wait 5 seconds or more.

  7. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

  8. Read the pending DTCs.

    Tip:

    • If a pending DTC is output, the system is malfunctioning.

    • If a pending DTC is not output, perform the following procedure.

  9. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

  10. Input the DTC: U0293.

  11. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed

    • System normal

    ABNORMAL

    • DTC judgment completed

    • System abnormal

    INCOMPLETE

    • DTC judgment not completed

    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment

    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
    Tip:

    • If the judgment result shows NORMAL, the system is normal.

    • If the judgment result shows ABNORMAL, the system has a malfunction.

    • If the judgment result shows INCOMPLETE or N/A, perform the Confirmation Driving Pattern and check the DTC judgment result again.

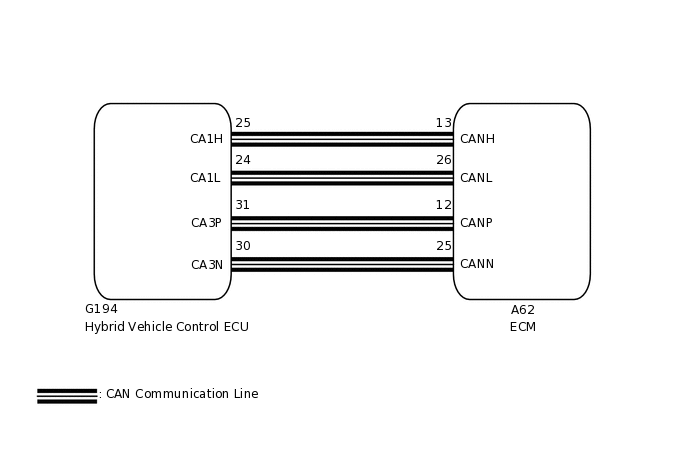

WIRING DIAGRAM

A217287E35

CAUTION / NOTICE / HINT

Tip:

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

  1. GO TO CAN COMMUNICATION SYSTEM

    1. Refer to the CAN Communication System (for LHD).

      Click here

    2. Refer to the CAN Communication System (for RHD).

      Click here

    Result

    Proceed to

    NEXT
    NEXT

    END
