FUEL SENDER GAUGE ASSEMBLY INSPECTION

PROCEDURE

  1. INSPECT FUEL SENDER GAUGE ASSEMBLY

    1. Check that the float moves smoothly between F and E.

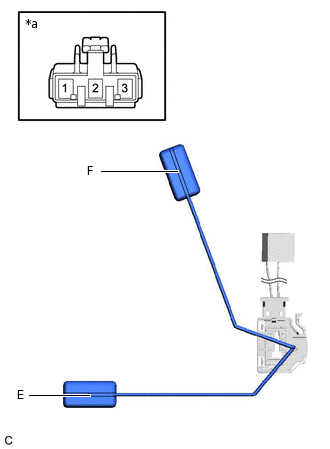

    2. A323533C01

      *a

      Component without harness connected

      (Fuel Sender Gauge Assembly)

      Type A:

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Float Level

        Specified Condition

        1 - 2

        F

        12.0 to 18.0 Ω

        Between F and E

        12.0 to 415.0 Ω (Gradually changes)

        E

        405.0 to 415.0 Ω

        If the result is not as specified, replace the fuel sender gauge assembly.

    3. A389900C01

      *a

      Component without harness connected

      (Fuel Sender Gauge Assembly)

      Type B:

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Float Level

        Specified Condition

        1 - 2

        F

        13.5 to 16.5 Ω

        Between F and E

        13.5 to 414.5 Ω (Gradually changes)

        E

        405.5 to 414.5 Ω

        If the result is not as specified, replace the fuel sender gauge assembly.
