CLUTCH UNIT(for EC60) INSPECTION

PROCEDURE

  1. INSPECT CLUTCH DISC ASSEMBLY

    C228153

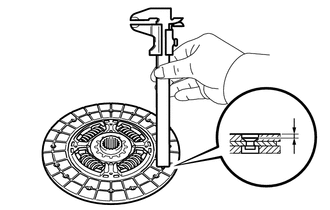

    1. Using a vernier caliper, measure the rivet head depth.

      Minimum Rivet Depth

      0.3 mm (0.0118 in.)

      If necessary, replace the clutch disc assembly.

    2. Install the clutch disc assembly to the manual transaxle assembly.

      Tip:

      Insert the clutch disc assembly in the correct direction.

    3. C187770

      Using a dial indicator, measure the clutch disc assembly runout.

      Maximum Runout

      0.8 mm (0.0315 in.)

      If necessary, replace the clutch disc assembly.

  2. INSPECT CLUTCH COVER ASSEMBLY

    D029069N02

    1. Using a vernier caliper, measure the depth and width of the diaphragm spring wear.

      Maximum

      A (Depth): 0.5 mm (0.0197 in.)

      B (Width): 6.0 mm (0.236 in.)

      If necessary, replace the clutch cover assembly.

  3. INSPECT FLYWHEEL SUB-ASSEMBLY

    C200987

    1. Using a dial indicator, check the flywheel sub-assembly runout.

      Maximum Runout

      0.1 mm (0.00394 in.)

      If necessary, replace the flywheel sub-assembly.
