ELECTRICAL KEY OSCILLATOR(for Luggage Compartment) REMOVAL

PROCEDURE

  1. REMOVE REAR WIPER MOTOR ASSEMBLY

    Click here

  2. REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

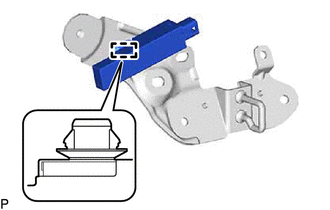

    1. B469617

      Disengage the clamp to remove the No. 3 indoor electrical key antenna assembly.

      Note:

      Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.
