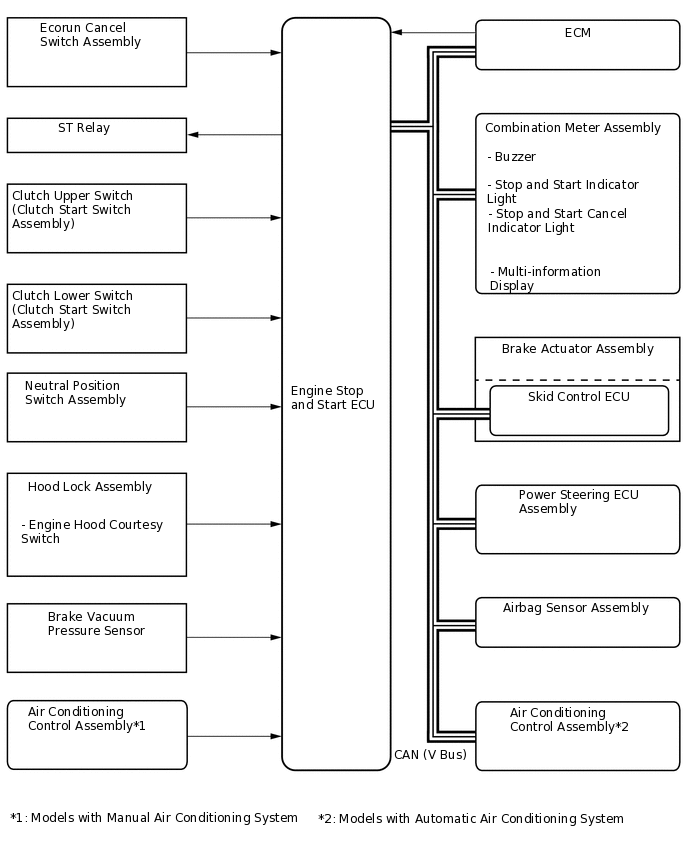

STOP AND START GENERAL SYSTEM DIAGRAM

W117278E01
Table 1. CAN Communication Signals

Item

Sent to Engine Stop and Start ECU

Sent from Engine Stop and Start ECU

ECM

  • Engine Speed

  • Engine Coolant Temperature

  • Accelerator Pedal Position

  • Battery Current

  • Battery Temperature

  • Battery State of Charging

  • Brake Booster Vacuum

  • Charge Request

Combination Meter Assembly

  • Front Door Courtesy Light Switch (Driver)

  • Front Seat Belt Buckle Switch (Driver)

  • Stop and Start Indicator Light

  • Stop and Start Cancel Indicator Light

Air Conditioning Control Assembly*

Engine Start Request

-

Brake Actuator Assembly

Skid Control ECU

  • Vehicle Speed

  • Vehicle Wheel Speed

-

Airbag Sensor Assembly

Airbag Deployment Information in the Event of a Collision and Deceleration Signal

-

Power Steering ECU Assembly

EPS Assist Current

-

*: Models with air conditioning system
