TELEVISION CAMERA(for Front) REMOVAL

PROCEDURE

1. PRECAUTION

   Click here

2. REMOVE FRONT BUMPER COVER

   Click here

3. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

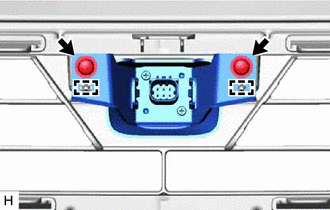

   1.

      Remove the 2 screws.

   2. Detach the 2 guides and remove the front television camera assembly.
