INTAKE SYSTEM ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced when repairing air leaks in the intake system are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Air leak from intake system is repaired Inspection After Repair

  • Poor idle, etc.

  • Engine start function, etc.

Click here

PROCEDURE


  1. INSPECT INTAKE SYSTEM

    CAUTION:

    To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the engine switch on (IG).

    B0085KO

    Tech Tips

    Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

    Click here

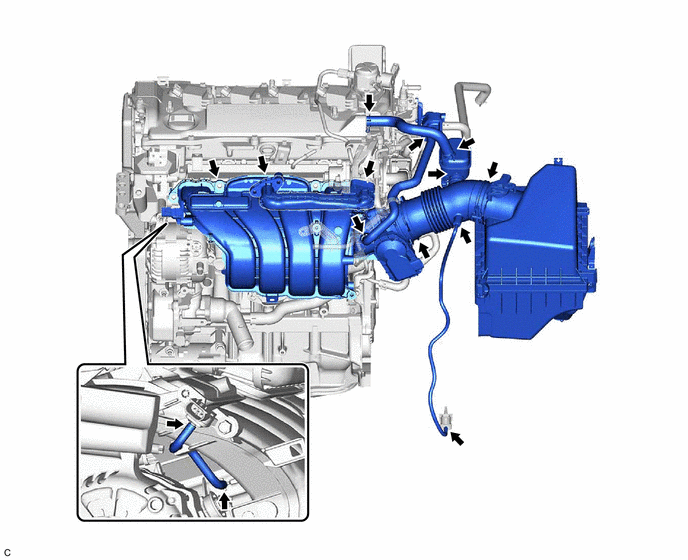

    1. Check that there are no vacuum leaks at the points shown in the illustration.

      B0070FO

  2. PERFORM INITIALIZATION


    1. Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

      Click here
