FORWARD RECOGNITION CAMERA SYSTEM, Diagnostic DTC:C1AAE
| DTC Code | DTC Name |
|---|---|
| C1AAE | Heater Circuit |
DESCRIPTION
The forward recognition camera controls the flow of current to the forward recognition with heater hood sub-assembly.
If the forward recognition camera detects a malfunction in the forward recognition with heater hood sub-assembly circuit, it will store this DTC.
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
|---|---|---|---|
C1AAE |
Heater Circuit |
|
|

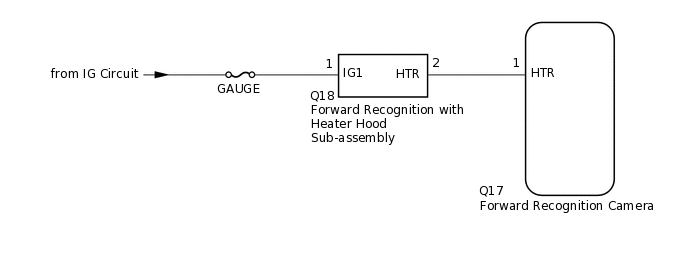

WIRING DIAGRAM
CAUTION / NOTICE / HINT
Inspect the fuses for circuits related to this system before performing the following procedure.
When replacing the forward recognition camera, always replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle. As a result, a DTC may be stored.
If the forward recognition camera has been replaced with a new one, be sure to perform Recognition Camera/Target Position Memory and Recognition Camera Axis Adjust.
PROCEDURE
CHECK DTC OUTPUT
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Turn the GTS on.
Enter the following menus: Chassis / Front Recognition Camera / Trouble Codes.
Clear the DTCs.
Chassis > Front Recognition Camera > Clear DTCs
Make sure that the DTC detection conditions are met.
Tip:If the conditions are not met, the system cannot detect the malfunction.
Wait 7 seconds or more after turning the power switch on (IG).
Check for DTCs.
Chassis > Front Recognition Camera > Trouble Codes
Result
Result
Proceed to
DTC C1AAE is not output
A
DTC C1AAE is output
B
INSPECT FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY
-

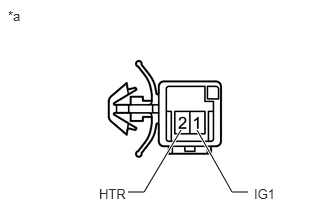

*a
Component without harness connected
(Forward Recognition with Heater Hood Sub-assembly)
Disconnect the Q18 forward recognition with heater hood sub-assembly connector.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
1 (IG1) - 2 (HTR)
Always
38 to 42 Ω
Result
Proceed to
OK
NG
-
CHECK TERMINAL VOLTAGE (FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY POWER SOURCE VOLTAGE)
-

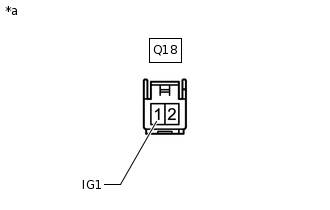

*a
Front view of wire harness connector
(to Forward Recognition with Heater Hood Sub-assembly)
Disconnect the forward recognition with heater hood sub-assembly connector.
Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection
Condition
Specified Condition
Q18-1 (IG1) - Body ground
Power switch on (IG)
11 to 14 V
Power switch off
Below 1 V
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
-
CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA)
Disconnect the Q18 forward recognition with heater hood sub-assembly connector.
Disconnect the Q17 forward recognition camera connector.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
Q18-2 (HTR) - Q17-1 (HTR)
Always
Below 1 Ω
Q18-2 (HTR) or Q17-1 (HTR) - Body ground
Always
10 kΩ or higher
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - BODY GROUND)
Disconnect the Q17 forward recognition camera connector.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
Q17-10 (GND) - Body ground
Always
Below 1 Ω
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
