RADIATOR GRILLE REMOVAL

PROCEDURE

1. REMOVE FRONT BUMPER COVER

   Click here

2. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

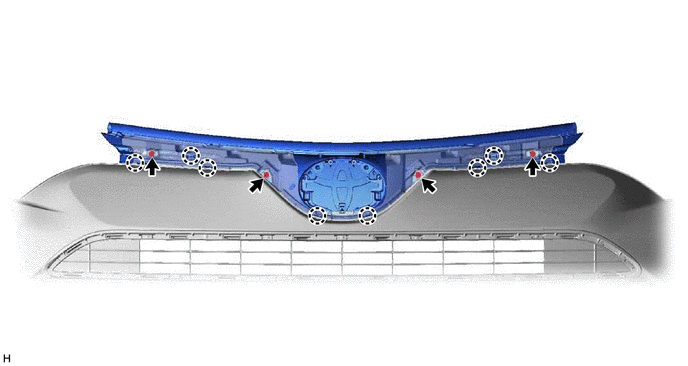

   1. Remove the 4 screws.



   2. Detach the 8 claws and remove the radiator grille sub-assembly.
