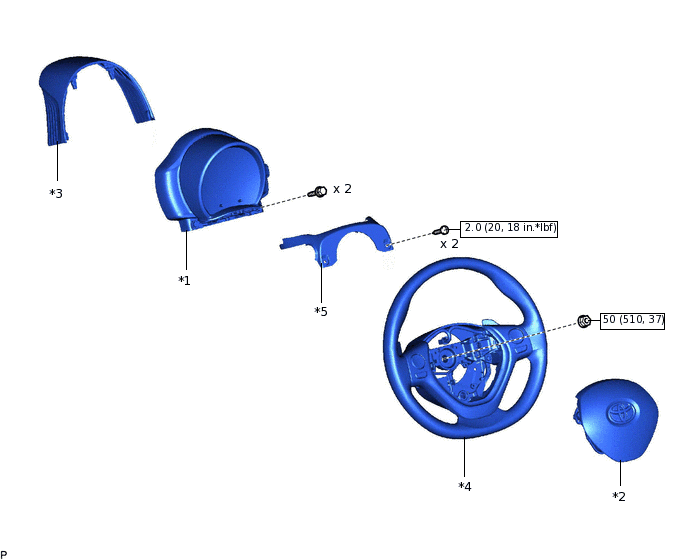

COMBINATION METER COMPONENTS

*1	COMBINATION METER ASSEMBLY	*2	HORN BUTTON ASSEMBLY
*3	INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY	*4	STEERING WHEEL ASSEMBLY
*5	UPPER NO. 2 STEERING COLUMN COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*1

COMBINATION METER ASSEMBLY

*2

HORN BUTTON ASSEMBLY

*3

INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

*4

STEERING WHEEL ASSEMBLY

*5

UPPER NO. 2 STEERING COLUMN COVER

-

N*m (kgf*cm, ft.*lbf): Specified torque

-
