RAIN SENSOR INSTALLATION

PROCEDURE

1. INSTALL RAIN SENSOR TAPE

   Note:

   The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated.

   1. Clean the rain sensor sensing portion with a piece of cloth, etc.

   2.

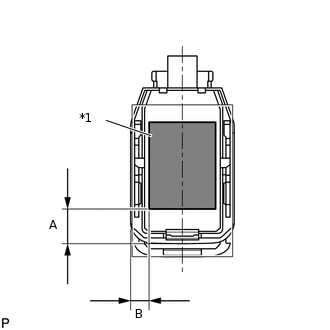

      *1	Rain Sensor Tape

      Peel off the smaller release sheet, and then attach the rain sensor tape on the rain sensor sensing portion as shown in the illustration.

      Standard

      Area	Measurement
      A	13.5 mm (0.532 in.)
      B	7.5 mm (0.295 in.)

      Note:

      Use your fingers to push out any air bubbles from under the tape.

2. INSTALL RAIN SENSOR

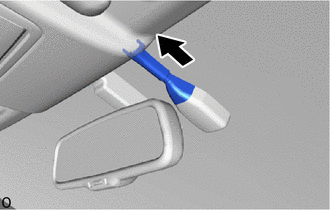

   1. Clean the windshield glass with a piece of cloth, etc.

      Note:

      • Make sure that there is no rain sensor tape residue remaining on the windshield glass. If there is, remove the residue.

      • If there is any rain sensor tape residue remaining on the windshield glass, replace the tape.

   2. When installing a new rain sensor or replacing the rain sensor tape:

      1. Peel off the release sheet.

         Tip:

         Do not touch the silicon coated surfaces.

      2.

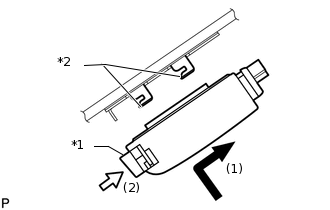

         *1	Stopper
         *2	Guide

         Attach the 2 guides, and then carefully install the rain sensor to the glass surface so that air bubbles do not form between the contact surfaces.

         Note:

         Do not touch the silicon coated or glass surfaces.

      3. Push in the stopper.

      4. Connect the connector.

3. INSTALL RAIN SENSOR COVER

   1.

      Attach the 2 claws to install the rain sensor cover.

   2. Slide the cover as shown in the illustration.
