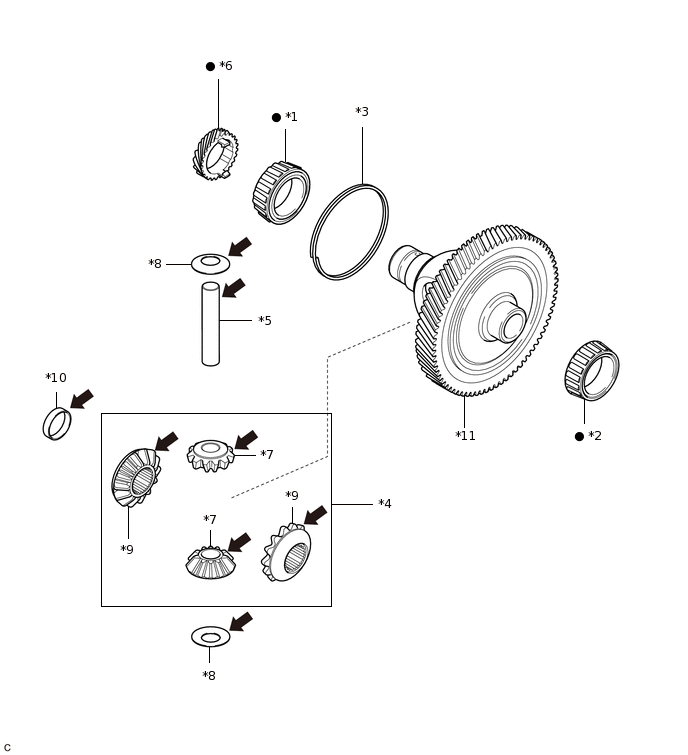

DIFFERENTIAL CASE COMPONENTS

ILLUSTRATION

C308798C01

*1

FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

*2

FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

*3

FRONT DIFFERENTIAL CASE SNAP RING

*4

FRONT DIFFERENTIAL GEAR SET

*5

FRONT NO. 1 DIFFERENTIAL PINION SHAFT

*6

SPEEDOMETER DRIVE GEAR

*7

FRONT DIFFERENTIAL PINION GEAR

*8

FRONT DIFFERENTIAL PINION THRUST WASHER

*9

FRONT DIFFERENTIAL SIDE GEAR

*10

FRONT DIFFERENTIAL SIDE GEAR SEAL

*11

FRONT DIFFERENTIAL CASE ASSEMBLY WITH RING GEAR

-

-

●

Non-reusable part

 V100135

Gear oil
