POWER BACK DOOR CONTROL SWITCH(for RHD) REMOVAL

PROCEDURE

  1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Click here

  2. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Click here

  3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Click here

  5. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY

    Click here

  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Click here

  7. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Click here

  8. REMOVE NO. 2 SWITCH HOLE BASE

    1. B338189

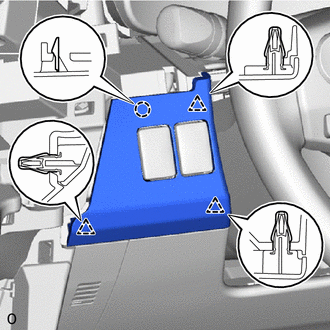

      Detach the 3 clips and claw and remove the No. 2 switch hole base.

  9. REMOVE BACK DOOR CONTROL SWITCH

    1. B336656

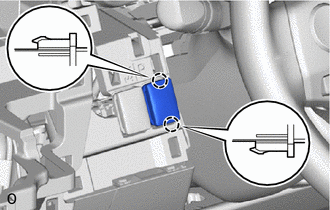

      Detach the 2 claws and remove the back door control switch assembly as shown in the illustration.

    2. B338187

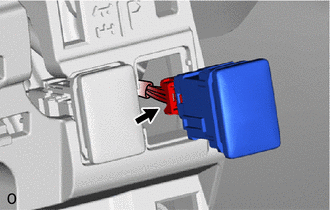

      Disconnect the connector.
