WIPER ECU INSTALLATION

PROCEDURE

1. INSTALL WINDSHIELD WIPER RELAY ASSEMBLY (for LHD)

   1.

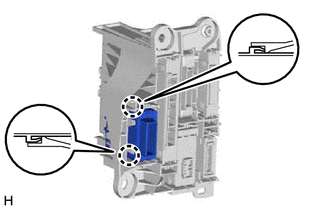

      Attach the 2 claws to install the windshield wiper relay assembly.

2. INSTALL ECU INTEGRATION BOX RH (for LHD)

   Click here

3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (for LHD)

   Click here

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for LHD)

   Click hereClick here

5. INSTALL WINDSHIELD WIPER RELAY ASSEMBLY (for RHD)

   1.

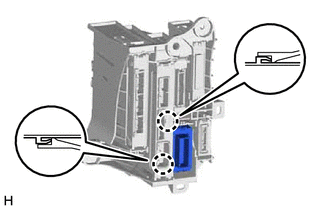

      Attach the 2 claws to install the windshield wiper relay assembly.

6. INSTALL ECU INTEGRATION BOX RH (for RHD)

   Click here

7. INSTALL FUSE BOX OPENING COVER (for RHD)

   Click hereClick here

8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for RHD)

   Click hereClick here
