WIPER AND WASHER SYSTEM
Figure 1. LHD Models
| *A | Models with Rain Sensing Function | *B | Models with Triple Beam Headlight |
| *1 | HEADLIGHT CLEANER ACTUATOR SUB-ASSEMBLY RH | *2 | HEADLIGHT CLEANER ACTUATOR SUB-ASSEMBLY LH |
| *3 | RAIN SENSOR | *4 | WINDSHIELD WIPER MOTOR ASSEMBLY |
| *5 | NO. 3 ENGINE ROOM RELAY BLOCK AND NO. 3 JUNCTION BLOCK ASSEMBLY
|
*6 | SKID CONTROL ECU ASSEMBLY |
| *7 | HEADLIGHT CLEANER CONTROL RELAY | *8 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
| *9 | HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY | *10 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH |
| *11 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH | - | - |
Figure 2. RHD Models
| *A | Models with Rain Sensing Function | *B | Models with Triple Beam Headlight |
| *1 | HEADLIGHT CLEANER ACTUATOR SUB-ASSEMBLY RH | *2 | HEADLIGHT CLEANER ACTUATOR SUB-ASSEMBLY LH |
| *3 | SKID CONTROL ECU ASSEMBLY | *4 | WINDSHIELD WIPER MOTOR ASSEMBLY |
| *5 | RAIN SENSOR | *6 | NO. 3 ENGINE ROOM RELAY BLOCK AND NO. 3 JUNCTION BLOCK ASSEMBLY
|
| *7 | HEADLIGHT CLEANER CONTROL RELAY | *8 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
| *9 | HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY | *10 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH |
| *11 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH | - | - |

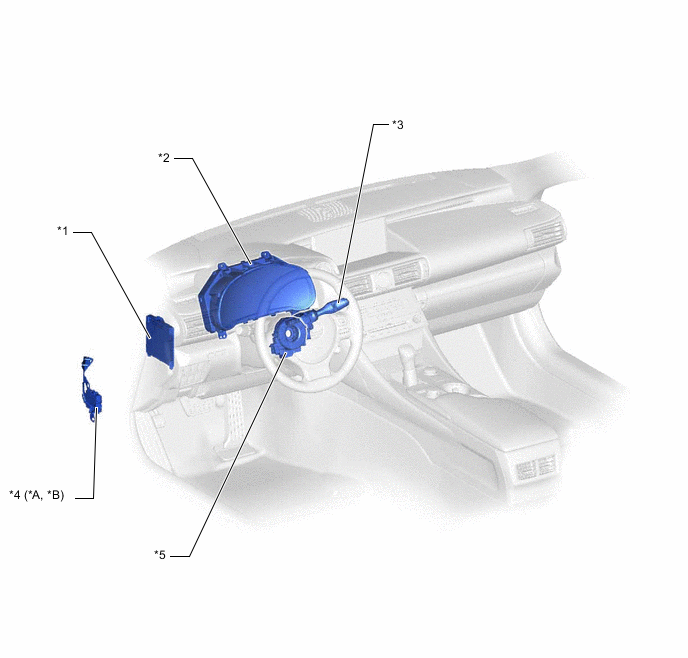

Figure 3. LHD Models
| *A | Models with Headlight Cleaner System | *B | Models with Single Beam Headlight |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY
|
*4 | HEADLIGHT LEVELING ECU ASSEMBLY |
| *5 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
- | - |

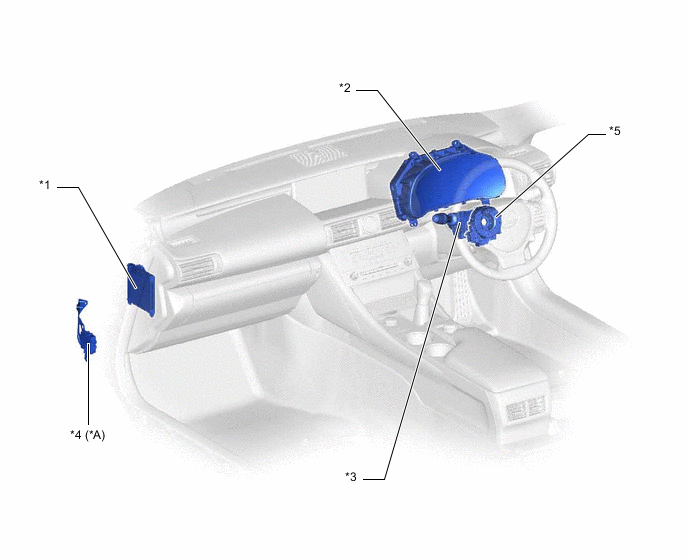

Figure 4. RHD Models
| *A | Models with Single Beam Headlight | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | COMBINATION METER ASSEMBLY |
| *3 | WINDSHIELD WIPER SWITCH ASSEMBLY
|
*4 | HEADLIGHT LEVELING ECU ASSEMBLY |
| *5 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
|
- | - |
