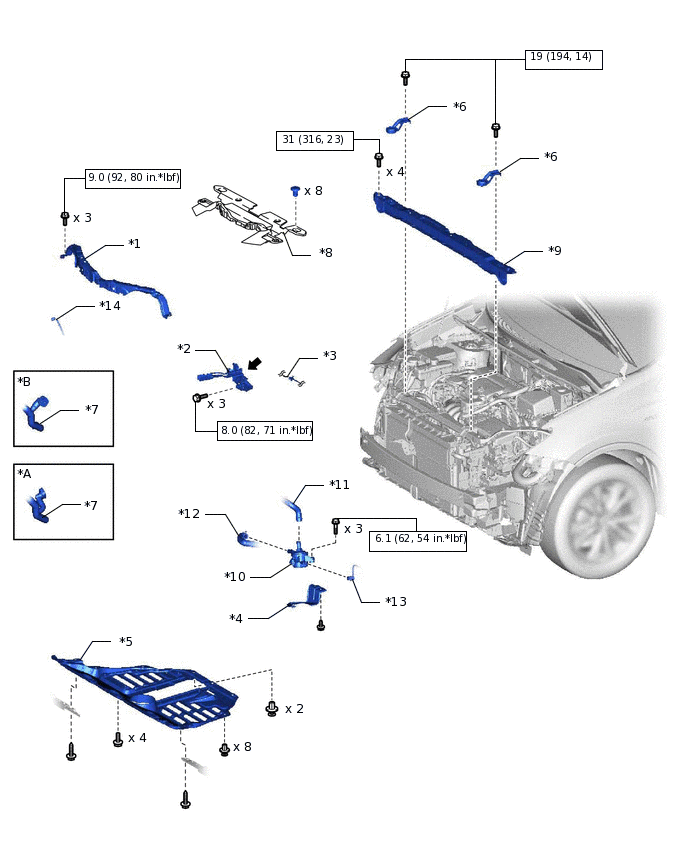

WATER PUMP WITH MOTOR COMPONENTS
ILLUSTRATION
*A |
for 2WD |
*B |
for AWD |
*1 |
FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY |
*2 |
HOOD LOCK ASSEMBLY |
*3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HV WATER PUMP BRACKET SUB-ASSEMBLY |
*5 |
NO. 1 ENGINE UNDER COVER |
*6 |
NO. 1 RADIATOR SUPPORT |
*7 |
NO. 2 INVERTER COOLING HOSE ASSEMBLY |
*8 |
RADIATOR UPPER AIR GUIDE PLATE |
*9 |
UPPER RADIATOR SUPPORT |
*10 |
WATER PUMP WITH MOTOR |
*11 |
NO. 2 INVERTER COOLING HOSE |
*12 |
NO. 3 INVERTER COOLING HOSE |
*13 |
WATER PUMP WITH MOTOR CONNECTOR |
*14 |
HORN CONNECTOR |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) |
 |
MP grease |
