HYBRID CONTROL SYSTEM, Diagnostic DTC:P3107-214
| DTC Code | DTC Name |
|---|---|
| P3107-214 | Lost Communication with Airbag System Control Module |
DESCRIPTION
Refer to the description for DTC P3107-213.
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
MIL |
Warning Indicate |
|---|---|---|---|---|---|
P3107-214 |
Lost Communication with Airbag System Control Module |
Open or short to +B in the communication circuit (1 trip detection logic) |
|
Does not come on |
Master Warning Light: Comes on |
DTC No. |
Data List |
|---|---|
P3107-214 |
Collision Signal (Airbag) |

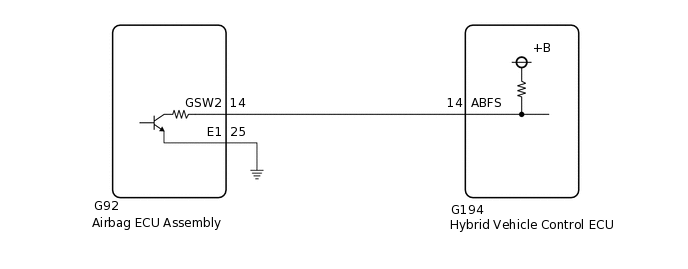

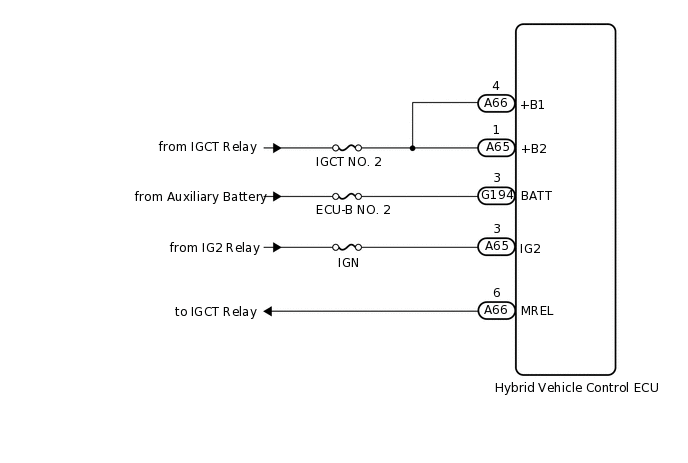

WIRING DIAGRAM
CAUTION / NOTICE / HINT
After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.
Turn the power switch on (IG) and wait for 15 seconds or more.
PROCEDURE
CHECK DTC OUTPUT (SRS AIRBAG)
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Enter the following menus: Body Electrical / SRS Airbag / Trouble Codes.
Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
Result
Proceed to
Airbag system DTCs are not output.
Airbag system DTCs are output.
Turn the power switch off.
Airbag system DTCs are output. GO TO DTC CHART (AIRBAG SYSTEM)
w/ Occupant Classification System:Click here
w/o Occupant Classification System:Click here
CHECK AIRBAG ECU ASSEMBLY (CHECK WAVEFORM)
Result
Proceed to
The waveform appears as shown in the illustration.
The waveform differs from the one shown in the illustration.
The waveform differs from the one shown in the illustration. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)Click here
CLEAR DTC
Result
Proceed to
NEXT
CHECK DTC OUTPUT (HYBRID CONTROL)
Connect the GTS to the DLC3.
Turn the power switch on (IG).
Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
Check for DTCs.
Powertrain > Hybrid Control > Trouble Codes
Result
Proceed to
P3107-214 is not output.
P3107-214 is output again.
Turn the power switch off.
CHECK FOR INTERMITTENT PROBLEMS
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)
Result
Proceed to
OK
NG
NG CONNECT SECURELY
CHECK CONNECTOR CONNECTION CONDITION (AIRBAG ECU ASSEMBLY CONNECTOR)
-
*a
Component with harness connected
(Airbag ECU Assembly)

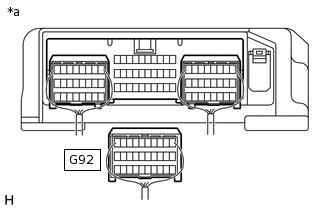

Check the connector connections and contact pressure of the relevant terminals for the G92 airbag ECU assembly connector.
OK
The connectors are connected securely and there are no contact pressure problems.
Result
Proceed to
OK
NG
NG CONNECT SECURELY
-
CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - AIRBAG ECU ASSEMBLY)
Disconnect the G194 hybrid vehicle control ECU connector.
Disconnect the G92 airbag ECU assembly connector.
Turn the power switch on (IG).
-

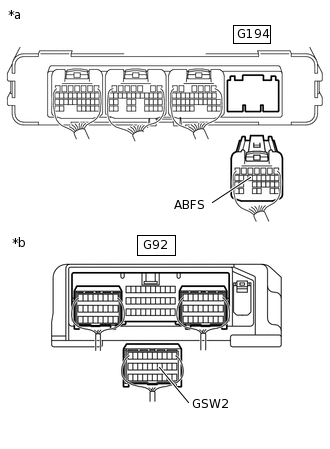

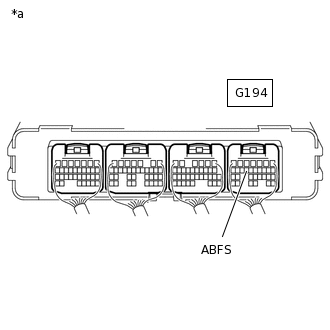

*a
Rear view of wire harness connector
(to Hybrid Vehicle Control ECU)
*b
Rear view of wire harness connector
(to Airbag ECU Assembly)
Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection
Condition
Specified Condition
G194-14 (ABFS) - Body ground
Power switch on (IG)
Below 1 V
Note:Turning the power switch on (IG) with the airbag sensor assembly connector and the hybrid vehicle control ECU connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.
Turn the power switch off.
Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open)
Tester Connection
Condition
Specified Condition
G194-14 (ABFS) - G92-14 (GSW2)
Power switch off
Below 1 Ω
Standard Resistance (Check for Short)
Tester Connection
Condition
Specified Condition
G194-14 (ABFS) or G92-14 (GSW2) - Body ground and other terminals
Power switch off
10 kΩ or higher
Tip:As necessary, check that there are no wires shorted to power supply when performing the above wire harness inspection.
Reconnect the G92 airbag ECU assembly connector.
Reconnect the G194 hybrid vehicle control ECU connector.
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
CHECK HYBRID VEHICLE CONTROL ECU
-

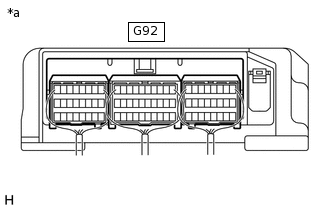

*a
Component without harness connected
(Airbag ECU Assembly)
Disconnect the G92 airbag ECU assembly connector.
Turn the power switch on (IG).
-
*a
Component with harness connected
(Hybrid Vehicle Control ECU)
Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection
Condition
Specified Condition
G194-14 (ABFS) - Body ground
Power switch on (IG)
11 to 14 V
Note:Turning the power switch on (IG) with the airbag ECU assembly connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.
Turn the power switch off.
Reconnect the G92 airbag ECU assembly connector.
Result
Proceed to
OK
NG
-
